1.
OEM CO2 Laser Marking
Systems
For OEM
users or laser integrators
or the end users for the production line,
we can provide OEM
laser markers at
more attractive prices.

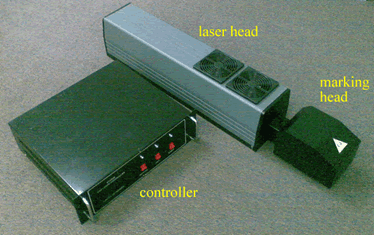

The OEM
laser marker consists of 3 parts: a
laser head with marking head, a
control unit, a
D/A card &
marking software.
|
Model |
M-UL-10OEM |
M-UL-30OEM |
M-UL-50OEM |
|
Laser wavelength |
10.6um |
10.6um |
10.6um |
|
Laser power |
10W |
30W |
50W |
|
Mark
linewidth |
0.15mm |
0.15mm |
0.15mm |
|
Marking
field (mm) |
50x50 - 250x250 |
50x50 - 250x250 |
50x50 - 250x250 |
|
Marking speed |
<5m/sec |
<5m/sec |
<5m/sec |
|
Weight (laser with mark
head) |
20kg |
26kg |
30kg |
|
Electric |
200VAC, 50Hz |
200VAC, 50Hz |
200VAC, 50Hz |
2. UL Series Integrated CO2 Laser Marking
Systems
UL series
CO2 lasers from USA are used. These lasers have high quality
& good stability performance. High-speed optical galvanometers are used
for laser beam scanning. Our own powerful laser marking software is
suitable for producing characters, pictures, barcode and DataMatrix
marking. These laser marking systems are being widely used in laser
marking of hard, fragile, soft and cylindrical products or materials in
production lines. The prices are very low but the quality is still high.
Specifications:
|
Model |
M-UL-10 |
M-UL-30 |
M-UL-50 |
M-UL-100 |
|
Laser Head |
|
Laser model |
UL-10 |
UL-30 |
UL-50 |
UL-100 |
|
Laser power（W） |
10 |
30 |
50 |
100 |
|
Beam quality M2 |
1.4 |
1.4 |
1.4 |
1.4 |
|
Beam diameter（mm） |
4.0 |
4.0 |
4.0 |
4.0 |
|
Max. pulse
frequency（kHz） |
5 |
5 |
5 |
5 |
|
Cooling |
Air |
|
Marking Head |
|
Scanner |
High-speed optical
galvanometer (USA) |
|
Marking filed (mm) |
50x50,70x70,105x105, 140x140, 175x175, 210x210 or 255x255 |
|
Max. scanning
speed (m/sec) |
8 |
|
Marking resolution
(mm) |
0.05 |
|
Dimension (mm) |
210�138�120 |
|
Marking software |
|
Various fonts,
pictures (PLT, DXF, BMP), automated series numbers, barcodes,
DataMatrix |
Typical Applications:
1. Laser
marking of non-metal materials and products: acrylic, ceramics,
plastics, polycarbonate, organics, wood, thermo-elastomer rubbers,
paper, button.
2. Electronic
industry: capacitor, inductor, PCB, IC, connector, control panel,
instrument.
3. Others:
button, cosmetics, food package, bottle, gift, advertisement & sign
crafts, craft & gift making. |
