         New Products             IPL Power Supply


Model

Input

Output power

No. of driven lamps

Max. output voltage

Display

Weight

Dimension

(cm)

ST-IPL-03-1

220VAC

300W

1

360V

240x128 LCD

3kg

16x18x14

ST-IPL-04-1

220VAC

400W

1

360V

240x128 LCD

3kg

16x18x14

ST-IPL-10-1-A

220VAC

1000W

1

360V

240x128 LCD

5kg

20x27x14

ST-IPL-10-1-B

220VAC

1000W

1

360V

240x128 LCD

5.2kg

19x24x14

ST-IPL-08-2

220VAC

800W

2

400V

240x128 LCD

5.7kg

20x30x14

ST-IPL-10-2

220VAC

1000W

2

360V

240x128 LCD

5.7kg

20x30x14

ST-IPL-10-2-1

220VAC

1000W

2

360V

colour touch screen

6kg

25x30x14

ST-IPL-10-3

220VAC

1000W

3

360V

240x128 LCD

8kg

38x31x14

 Remark: When multi-lamp is driven, the lamps are not simultaneously driven. If all lamps are simultaneously driven, the total output power will be summed by all lamps.



Description of Model: :  ST- IPL-XX-YY-Z

ST-

IPL

XX

YY

Z

Model

IPL driver

Output power, unit=100W

Number of driven lamp

Others

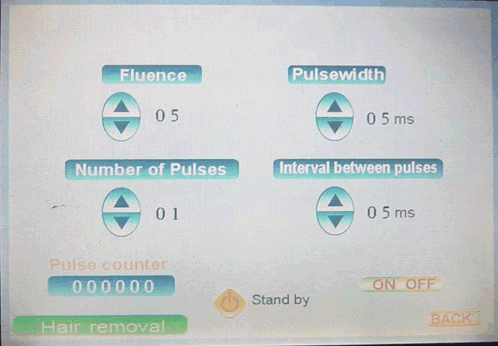

Typical Specifications Setting of ST-IPL-10-2-1:

(8.5� colour touch screen)



Fluence: setting of pulse energy, range 05 to 35, corresponding to output voltages 130 to 360V.

Pulsewidth: setting of pulse width, range 05 to 35ms.

Number of pulses:  setting of pulse number, range 01-07.

Interval between pulses: spacing of neighbour pulses.

Pulse counter: counting the pulse number.

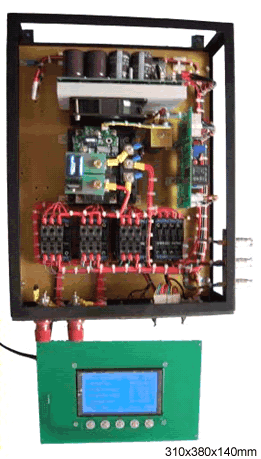

Single-lamp Power Supply
190x240x140mm

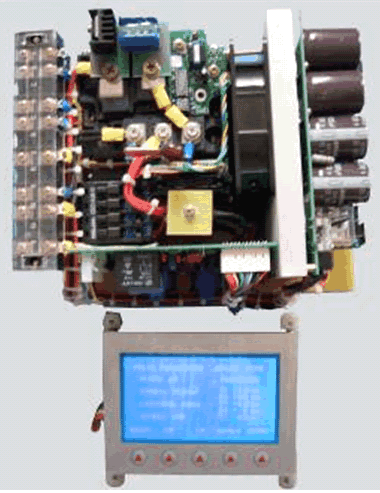

Dual-lamp Power Supply

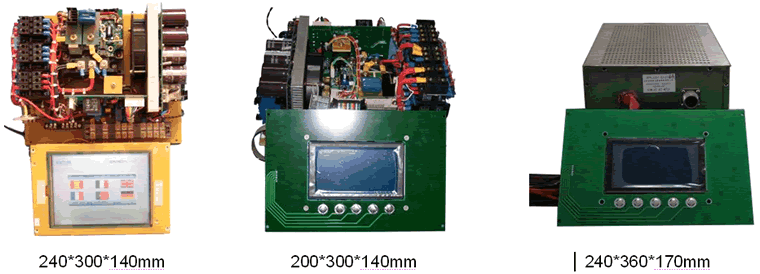

3-lamp Power Supply



 Pulsed laser power supply       CW laser power supply           Diode driver
