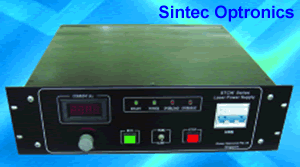

          CW Laser Power Supply (Lamp Driver)



The STCW series laser power supplies are made for CW lamp-pumped Nd:YAG lasers. The main circuit of the power supply is based on power electronic module IGBT, adopts PWM technique to yield conversion efficiency more than 90%, and outputs constant current with high accuracy and low current ripple. Ignition circuits which produce a high voltage pulse consists of three steps: series high voltage unit for igniting the lamp, LC unit to relay the power, and low –voltage-constant-current to continue the lamp current. Automatic igniting is achieved with igniting-detecting circuit. The successful ratio of one-time ignition is more than 99%. The high voltage rises smoothly, and its magnitude can be adjusted to meet the dispersible characteristics of the krypton lamps, and to reduce the spattering of the electrode material at the same time, and further to reduce the damage to the krypton lamp caused by high voltage triggering.



The soft-charging circuit and soft-starting circuit are provided to avoid the voltage spiking and in-rush current in the event of starting. Display shows the set current and operation current at different time. The function of “work/sleep” is designed to output normal current at working and low holding current at the time of stand by, so as to increase the efficiency of the power supply, lighten the heat exchanger system, and prolong the lifetime of the lamp as well. Conveniently turns switch to Run/Stop status, adjust output current, and show the working status through the inner/outer control selection.



Excellent design makes the power supply maintained easily and perfect design of circuit protects the device from over voltage, over current and over heat.



There are the following advantages of our products:

l         High reliability

l        Advanced design of the whole circuits system highly improves the electrical characteristics of the power supply.

l         Anti-dust design

l         Anti-vibration design

l         Easy maintenance

l         Malfunction indicators

l         Strict testing and 48hour full-load testing in the factory

l         Temperature test in -10~70 to ensure that it works stably in the ambient temperature at 0~50.

l         Test in relative humidity 90%.



Measure the current ripple and test the stability of the output current accurately in factory  to make sure that the output current meets the requirements of the Kr lamp.



Part Number Description:

STCWxyzT

STCW –   STCW series CW laser power supplies

X ---------- maximum output current (2 means 20A or 25A, 3 means 30A, 4 means 40A)

Y ---------- Maximum output voltage (4 means 400V, 2 means 200V)

Z ---------  input electricity (A means 3-phase 380VAC, B means 1-phase 220VAC)

T ---------- others



Model

STCW22A

STCW32A

STCW34A

STCW24A

STCW22B

STCW32B

Max output current

25

30

30

20

20

30

Max output voltage

200V

200V

400V

400V

200V

200V

Current ripple

≦0.4%

≦0.4%

≦0.4%

≦0.4%

≦0.4%

≦0.4%

Control accuracy

0.4%

0.4%

0.4%

0.4%

0.4%

0.4%

Simmer current

7A

7A

7A

7A

7A

7A

Switching frequency

20KHZ

20KHZ

20KHZ

20KHZ

20KHZ

20KHZ

Allowed input voltage tolerance

±15%

±15%

±15%

±15%

±15%

±15%

Environment temperature

050℃

050℃

050℃

050℃

050℃

050℃

Environment humility

≦90%

≦90%

≦90%

≦90%

≦90%

≦90%

Input electricity

380V, 6KVA

380V, 9KVA

380V, 9KVA

380V, 11KVA

220V, 6KVA

220V, 9KVA

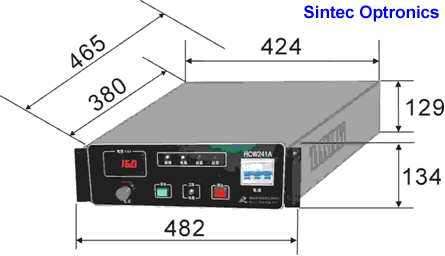

Dimension (mm)

500x481x135

500x481x135

500x481x135

500x481x135

500x481x180

500x481x180

Weight

23.5kg

23.5kg

28kg

25kg

23.5kg

23.5kg
