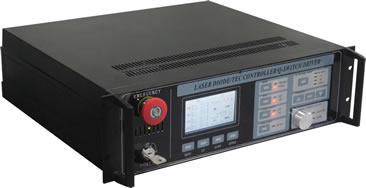

�3 in 1� Laser Power Supply
(diode driver + Q-switch driver + DC power supply of
marking head)
|
|
In a diode
pumped Nd:YAG laser marker, a diode driver, a Q-switch driver and a DC
power supply are needed. They are individual with large size and then
the size of the laser marker is also large. It is not convenient to move
the laser marker due to large size. We have developed a �3 in 1� laser
power supply and the above power supplies are integrated into one unit
with compact size.
Features:
-
Compact
in size and light in weight.
-
Modular
design for convenient maintenance.
-
Excellent performance.
-
Portable for easy moving.
|
Diode driver |
Output current |
0-30A adjustable |
|
Output voltage |
Max. 24V automatically adjustable |
|
Ripple |
<80mV |
|
Alarm and protection |
Over load, over temperature, over current and no load |
|
External current adjusting |
0
-10V corresponding 0 - max. current
|
|
Q-switch driver |
Output RF power |
50W |
|
RF
frequency |
27.125MHz |
|
Modulation frequency |
0.45-50KHz adjustable |
|
First pulse suppression |
50us-5ms adjustable |
|
Modulation input |
TTL
level |
|
Load impedance |
50Ω |
|
VSWR |
≤1.2 |
|
Alarm and protection |
Over load, over temperature, over current and no load |
|
Power supply for marking head |
Output |
�25V/150W (or others up request) |
|
Environment |
Electric input |
220VAC/8A, 50Hz |
|
Storage temperature |
-20�C - +85�C |
|
Operation temperature |
+10�C - +55�C |
|
Weight &
dimension |
Weight |
16kg |
|

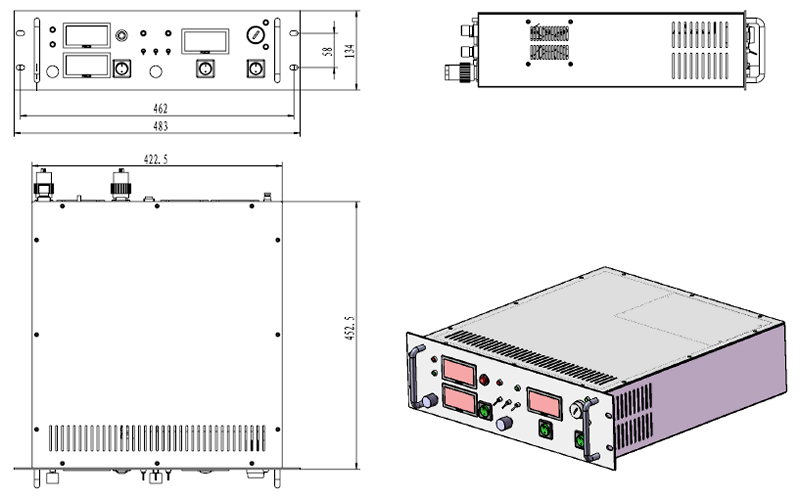

Dimension |
452x422x134mm (panel 483x134mm) |
If �3 in 1�
laser power is used in a laser marker, the marker will be simple and it
consists a laser head with a marking head and a power supply as shown as
follows. The marker will be portable.
 |
|
|
|
Diode Laser Driver (Laser
Diode Driver, Diode Driver) |
|
|
|
The laser diode driver
LDD is
a high current-constant laser diode driver with a thermo-electric
cooler controller. Current control, transient suppression,
over-temperature protection, short circuit protection, and over current
limit are provided. A temperature sensor is used to measure the
temperature of the laser diode and then the constant-temperature is kept
by automatically adjusting the current of the thermo-electric cooler.
LDD-AAVV-Tx
LDD-AAVV
Specifications:
Model:
LDD-AAVV-Tx
LDD - laser diode driver
AA
- maximum output current (A). Max is 60A and it is continuously
adjustable.
VV
- maximum output voltage (V). Max is 60V and it is continuously
adjustable.
T
- with a thermal
electronic cooler & power supply.
maximum 3 output channels.
x - number of TE coolers.
Input
voltage: 220VAC, +/-15%
(110VAC available upon request)
Voltage
noise: <0.1%
p-p
Current
noise: < =50mA
Un-stability:
<0.1%
Weight:
LDD-AAVV:
6.5kg; LDD-AAVV-T: 15kg
Dimension: LDD-AAVV:
482x133x520mm; LDD-AAVV-T: 482�88x260mm
Examples of Selections:
-
20W
diode-laser pump module, RBA20-0.66C2,
required 12VDC, 30A, recommend LDD4012(30A,
12V)
-
50W
diode-laser pump module, RBA30-1C2,
required 18VDC, 30A, recommend LDD3018(30A,
18V)
-
75W
diode-laser pump module, RBA34-1C2,
required 24VDC, 25A, recommend LDD3024(25A,
24V)
-
20W
diode laser, required 2VDC, 40A & TE cooler, recommend
LDD4002T(40A, 2V)
-
30W
diode laser, required 2VDC, 50A & TE cooler, recommend
LDD5002T(50A, 2V)
-
60W
diode laser, required 4VDC, 50A & TE cooler, recommend
LDD5004T(50A, 4V)
-
110W
diode laser, required 8VDC, 50A & TE cooler, recommend
LDD5008T(40A, 2V)

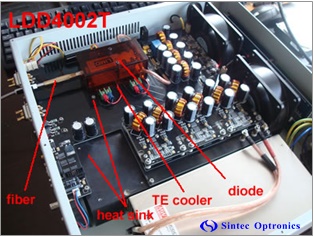

Detailed Specifications of LDD-4002T:
 Input:
AC220V 50Hz
Output:
�
Max.
3
channels of TE cooler, one is used to cool diode laser, another 2 channels may
be used for cooling laser medium and Q-switch. The output is max. 12V 10A.
�
One
channel output to drive diode laser. The output is max. 2V 40A. Others available
upon request.
Other
features：
�
The
output current to diode laser can be adjusted by internal or external signal.
�
Alarms such as over heat, over temperature, over current and over voltage
Typical
Drivers:
LDD-4002T:
output 40A 2V and with one channel TE cooler for cooling diode laser.
LDD-4002T2:
output 40A 2V and with 2 channels TE coolers for cooling diode laser and
laser medium.
LDD-4002T3:
output 40A 2V and with 3 channels TE coolers for cooling diode laser,
laser medium and SHG crystal.
Typical voltage and current waveforms:
|
|
|
|
LDD2 Series Diode Drivers |
|
|
|
LDD2 is a
series of laser diode drivers intended for single laser diode driving as
well as for laser diode arrays driving. Maximal output power ranges from
50W to 1500W, and maximal output current ranges from 5A to100A. These
drivers may be used for industrial and medical applications.
Part
number: LDD2-xx-AA
LDD2: LDD2 series OEM diode drivers
xx : Maximum output power
AA: maximum output current
The maximum output voltage is maximum output power
divided by output current.
|
NAME |
MAX
POWER |
CURRENT |
INPUT VOLTAGE |

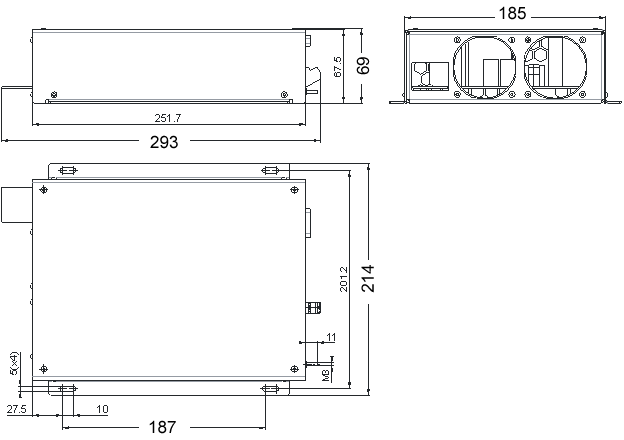

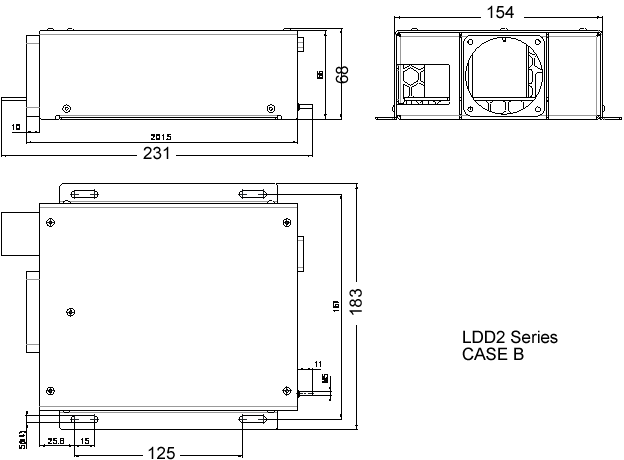

DIMENSION |
|
LDD2-50-AA* |
50
W |
5-25 A |
110/230 VAC |
A |
|
LDD2-150-AA |
150
W |
5-75 A |
110/230 VAC |
B |
|
LDD2-250-AA |
250
W |
10-100 A |
110/230 VAC |
B |
|
LDD2-400-AA |
400
W |
10-100 A |
230
VAC |
B |
|
LDD2-600-AA |
600
W |
10-100 A |
110/230 VAC |
C |
|
LDD2-1000-AA |
1000 W |
10-100 A |
110/230 VAC |
C |
|
LDD2-1500-AA |
1500 W |
10-100 A |
230
VAC |
C |
*
Additional information about LDD-50 model is available on request.
Examples:
LDD2-150-70 or LDD-1500-50
Maximal
output voltage in these examples is 2.1V and 30V, respectively.
Specifications:
|
OUTPUT |
|
Efficiency |
more than 80% |
|
Rise/fall time |
< 1
ms (10% to 90% full current)
<
500 us on request |
|
Current regulation accuracy |
<
1% of IMAX |
|
Current value error |
<
1% of IMAX |
|
Current overshoot |
<
1% of IMAX |
|
INTERFACE |
|
Connector |
15
Pin "D"-Sub Female |
|
Current program |
analog, 0-10 V |
|
Current monitor |
analog, 0-10 V |
|
Voltage monitor |
analog, 0-10 V |
|
SAFETY |
|
PFC
value |
>
0.98 (active) |
|
Leakage current |
<
150 μA |
|
Input/output isolation voltage |
4000 VAC |
|
Safety approval |
IEC60950, IEC60601-1 |
|
EMC
approval |
EN55011 (Class A) |
|
Cooling |
No
external cooling is required |
|
ENVIRONMENT |
|
Operation temperature |
0
� +40 �C |
|
Storage temperature |
-20
� +60
�C |
|
Humidity |
90%, non-condensing |
Interface
|
PIN (color) |
DESIGNATION |
DESCRIPTION |
|
1 (green) |
Enable |
Apply +5V DC on this pin to enable work of LDD.
While 0V are applied to this pin or pin is
unconnected module is disabled.
Once Fault has occurred module is blocked
till you eliminate fault cause, then disable module and
enable it again. |
|
2 (orange) |
Fault * |
If module is enabled and some trouble has
occurred, module automatically stops operations and sets
Fault status (Fault loop is �closed�).
In case of normal operations Fault loop is
�opened�.
Maximal allowed current in Fault loop is
50mA. |
|
3 (transparent) |
Interlock |
When Interlock loop is �opened� output is
inhibited. You should �close� this loop to start operations
(electrical resistance of �closed� loop should be below 100 Ohm
level).
Once Interlock has occurred module is
blocked till you �close� Interlock loop, then disable
module and enable it again. |
|
4, 9, 15 (black) |
Interface Return |
Return of all interface circuits.
This pin is connected to the GROUND stud. |
|
5 (yellow) |
V OUT monitor |
The voltage at this pin is a monitor signal
proportional to the measured value of voltage on load.
0V at PIN5 corresponds to 0V at load.
Voltage at PIN5 corresponds either to
voltage at load (VMAX < 10V) or to one-half of this
voltage (VMAX > 10V). |
|
6 (purple) |
I OUT monitor |
The voltage at this pin is a monitor signal
proportional to the measured value of output current.
0V at PIN6 corresponds to 0A.
10V at PIN6 corresponds to IMAX. |
|
7 (blue) |
I program |
Voltage applied to this pin sets output current.
0-10V DC are linear with 0-IMAX. |
|
8 (white) |
Pulse |
Apply +5V DC on this pin to allow the output.
While 0V are applied to this pin or pin is
unconnected output is inhibited. |
|
10-12 |
� |
Not used |
|
13, 14 (red) |
+15V OUT |
Auxiliary 15 VDC output. Maximal current � 100mA. |
Fault
Module sets
Fault state in the following cases:
� overheating
(temperature of the module exceeds 70+/�2 �C level).
To remove Fault status module must be cooled below 65+/�1 �C
temperature.
� overvoltage
(voltage on the load exceeds 110% of VMAX
level).
Most popular causes of such fault are load type mismatch and load
absence.
� overcurrent
(output current exceeds 1.05 IMAX
level)
� incorrect
I Program (input voltage exceeds 10.5V level)
Once Fault
has occurred you should eliminate Fault cause, then �reboot� module
(DISABLE module and ENABLE it again). |
|
|
|

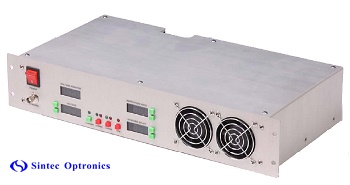

LDD2-2U
Series OEM Laser Diode Drivers |
|
|
|
 LDD2-2U
laser diode controller consists of LDD2-series laser diode driver,
none/one/two temperature controllers, user interface and 19-inch rack
mounted coverage case.
Module's input is 110VAC or 230VAC mains, module's outputs are laser
diode connections and Peltiers connections. User interface is dual
(front panel interface and RS-232 interface). Module is designed for CW
operations. In the spite of this the low speed modulation of the output
is available (parameters of modulation are set via RS-232 interface)
Features:
-
Modular
size 2-in-1
-
Compact
design
-
RS-232
integrated
Applications:
-
Diode
driver
-
TEC cooler
driver
Specifications:
|
INPUT |
|
Voltage |
110VAC
or 110/230VAC, 50/60 Hz (depends on the output power and if DI
option is selected) |
|
LASER
DIODE DRIVER SPECIFICATIONS |
|
Max.
output current (IMAX) |
selectable in range 10A-100A range |
|
Max.
output voltage (VMAX) |
selectable in range 2V-150V range |
|
Max.
output power |
IMAX
* VMAX; cannot exceed 1500W |
|
Output
current adjustment range |
10%-100% of IMAX |
|
Efficiency |
more
than 80% |
|
Rise/fall time |
< 1 ms
(10% to 90% full current) ,< 500 us on request |
|
Current
regulation accuracy |
< 1% of
IMAX |
|
Current
value error |
< 1% of
IMAX |
|
Current
overshoot |
< 1% of
IMAX |
|
TEC
CONTROLLERS SPECIFICATIONS |
|
Type
|
bidirectional |
|
Max.
output current |
up to
10A |
|
Max.
output voltage |
up to
20V |
|
Max.
output power |
cannot
exceed 150W |
|
Feedback loop |
10 kOhm
NTC (other on request) |
|
Temperature set points |
10-40
�C (other on request) |
|
Temperature set points accuracy and stability |
0.1 �C |
|
PROTECTIONS |
|
Module�s overheating |
70 �C |
|
Overheating in TEC channels |
TMAX
+ 10 �C (other on request) |
|
Diode
overcurrent protection |
+ |
|
SAFETY |
|
PFC
value |
> 0.98
(active) |
|
Leakage
current |
< 500
μA |
|
Input/output isolation voltage |
4000
VAC |
|
Safety
approval |
IEC60950, IEC60601-1 |
|
EMC
approval |
EN55011
(Class A) |
|
COOLING |
Forced
air cooling with embedded fans |
|
DIMENSIONS |
19��
width; 2U height; 250mm depth |
|
ENVIRONMENT |
|
Operation temperature |
0 � +40
�C |
|
Storage
temperature |
-20 �
+60 �C |
|
Humidity |
90%,
non-condensing |
Typical output
Yellow curve depicts some arbitrary output current pulse. Timescale is 1
ms/div.
Ordering information:
LDD2-2U-XXXA/YYV-MMMA/NNV
XXX: Diode current
YY: Diode voltage
MMM: TEC current
NN: TEC voltage
Examples:
� LDD2-2U-100A/2V-8A/15V � current source with 100A maximal output
current, 2V compliance voltage; one temperature controller with 8A
maximal output current and 15V maximal output voltage
� LDD2-2U-100A/20V-8A/15V � wrong part number, please see notes:
1) 100A * 20V exceed 1500W maximal possible output power and
2) Peltier cooling isn�t recommended there
� LDD2-2U-40A/4V-5A/10V-25kOhmNTC-2A/2V-DI � current source with 40A
maximal output current, 4V compliance voltage; two temperature
controllers; one with 5A maximal output current and 10V maximal output
voltage with the feedback from 25kOhm NTC thermistor; the other has 2A,
2V parameters, feedback loop is a standard one; dual input option
Notes:
1. Diode driver: Maximal output current (IMAX) is selected
by the customer in range 10-100A. Module�s output current can never
exceed this IMAX value.
2. Diode driver: Compliance voltage (VMAX) is selected by the
customer in range 2-150V. Module�s output voltage can never exceed VMAX
value.
3. Diode driver: Maximal output power of the module (WMAX) is
defined as a product of IMAX and VMAX and can
never exceed 1500W
4. TEC driver limitations: IMAX(TEC) < 10A, VMAX(TEC)
< 20V, WMAX(TEC) < 150W
5. TEC driver: Standardly our TEC controllers are designed to get
feedback from 10kOhm NTC thermistors.
|
|
|
|

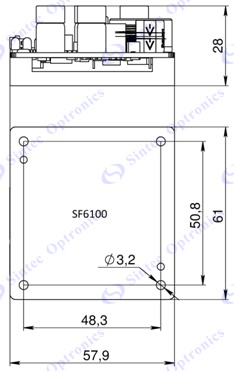

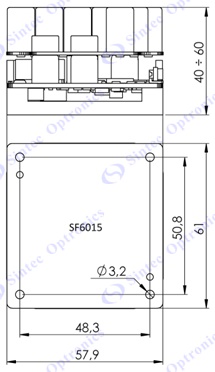

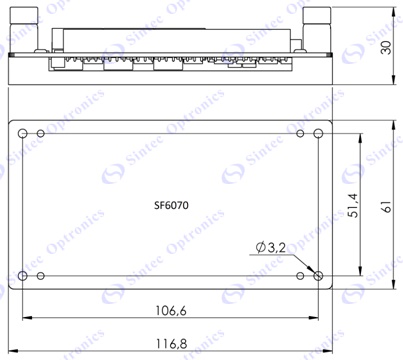

LDD3 Series Diode Drivers |
|
|
|

Diode driver is designed to supplying the laser diodes
and diode arrays by pulsed current up to 200A or DC current up to 64A.
Produced as an OEM module. The driver provides a wide range of smooth
change of parameters of radiation. Series SSF60XX is widely used in
laser technology complexes (marking, welding, soldering, cutting),
medical devices, measuring laser equipment (spectrometers, lidar, range
finders).
|
|
SSF6015 |
SSF6035 |
SSF6070 |
SSF6100 |
|
Mode |
QCW |
CW |
CW |
CW |
|
Pulse rate* (F) |
1-1000 Hz |
- |
- |
- |
|
Output voltage* (V) |
0-25 V
(Vin-6V max) |
0-10V
(0.8*Vin max) |
0-10V
(0.8*Vin max) |
0-40V
(0.73*Vin max) |
|
Output current* (I) |
1-15 А |
1-30A |
1-75 А |
1-20 А |
|
Pumping Current changing step |
0.1A |
0.1A |
0.3A |
0.1A |
|
Rise time |
<1000 μs |
<1000 μs |
- |
<500 μs |
|
Fall time |
<15 μs |
<15 μs |
- |
<15 μs |
|
Output current Stability |
- |
0.2% |
0.2% |
0.2% |
|
Current Set accuracy |
1% |
1% |
1% |
1% |
|
Input voltage range (Vin) |
10-14V |
10-14V |
10-14V |
12-55V |
|
Control |
Analog
digital RS-232 |
analog,
digitalRS-232 |
analog,
digital RS-232 |
analog,
digitalRS-232 |
|
Dimension (mm) |
37*58*20 quarter-brick |
37*58*20 quarter-brick |
61*58*30 half-brick |
61*58*30 half-brick |
|
Features |
� No need to adjust voltage
� soft start
� adjustable current limit
� thermal warning and shutdown
� reverse current protection
� crowbar circuit protection
� Universal controls
� enable/disable input
� Analog/digital interface
� Interlock
� Over current protection
� Auxiliary power outputs (+/-15V & + 5V) |
|
|
|
|
EC Temperature Controller |
|
|
|
TEC
module is designed for regulating the temperature of the objects and the
stabilizing its temperature at the certain level. The target temperature
is set with an analog input voltage. Voltage output is provided to
monitor temperature of the object.
Specifications:
|
Input voltage |
+24VDC |
|
Output voltage |
�20..+20 V |
|
Output current |
up
to 10A |
|
Output power |
up
to 150W |
|
Feedback loop |
10kOhm NTC termistor |
|
Output temperature range |
10..40 �C (other on request) |
|
Temperature accuracy |
0.1
�C |
|
Cooling |
forced air cooling is needed at >7A operations |
|
Dimensions |
130x80x30mm |
|
Weigth |
300g |
Calibration table
This table is valid only if the module is used with 10kOhm NTC supplied
|
Temperature, �C |
Resistance, kOhm |
Voltage, V |
|
10.0
|
19.9
|
0.075 |
|
20.0
|
12.5
|
0.975 |
|
25.0
|
10.0
|
1.55 |
|
30.0
|
8.06
|
2.21 |
|
40.0
|
5.33
|
3.83 |
|
|
|
|
ST-GN720 LASER POWER SUPPLY |
|
|
|
ST-GN720
series laser power supply, which is widely used to drive laser diode and
laser diode array, is a high efficient power supply to allow you get
stable current output for diode pumped solid state laser with AOM
configuration.
ST-GN720
series laser power supply is commonly used in the laser system for
marking, welding, trimming, cutting, micro machining, precision drilling
systems. It can be controlled internally or externally, providing a good
control synchronization for customer�s external devices.
ST-GN720
series laser power supply has interlocks to protect the power supply and
laser systems from over-temperature, low water flow, over voltage and
over current.
Technical
specifications:
|
Power input |
220VAC�15% |
|
Output voltage |
0～24V
(self-adaptation) |
|
Output current |
< 2A～30A�0.5A
(adjustable) |
|
Voltage noise |
< 0.1% p-p |
|
Current noise |
≤ 30mA |
|
Temperature drift
(30mins after startup) |
< 100ppm |
|
Stability (30mins
after startup) |
< 0.1% |
|
Current startup
rising time |
> 10S |
|
Current stop
falling time |
> 10S |
|
Current adjustment
range |
23A~30A |
|
dimension |
Standard 19� box |
|
|
 CW
laser power supply
IPL power supply Pulsed
laser power supply
diode laser module |
|
|
|
|
