Our laser cleaning machines are mainly used for cleaning
various metal surfaces with localized rust, paint, coatings, oil stains,
oxide films, and other pollutants. It can also be used for cleaning the
surfaces of non-metallic substrates such as ceramics, glass, and
composite materials. Typical applications include cleaning of natural
oxide film on aluminum alloy before welding, cleaning of black and gray
oxide on battery trays after welding, cleaning of welds on train bogies
before non-destructive testing, cleaning of automotive sheet metal parts
before refurbishment, and cleaning of parts of steel components such as
small holes and grooves that cannot be reached by wire brushes.
Product Advantages:

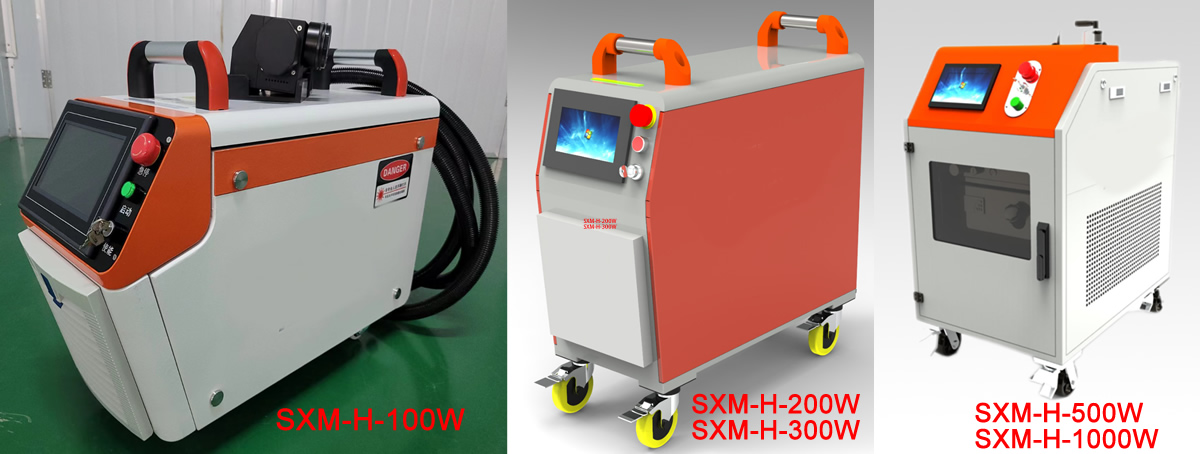

1. Hand-held Pulsed Laser Cleaning Machines
Product Specifications:
|
Part number |
SXM-H-100W |
SXM-H-200W
SXM-H-300W |
SXM-H-500W
SXM-H-1000W |
|
Laser power |
100W |
200W/300W |
500W/1000W |
|
Machine weight |
22kg |
60kg |
180kg |
|
Cleaning head weight |
1.3kg |
1.3kg |
4.5kg (single mode) 2kg (multiple mode) |
|
Fiber length |
5m |
5m |
10m |
|
External dimensions |
603*258*481mm |
783*300*784mm |
913*573*881mm |
|
Cooling method; |
Air cooling |
Air cooling |
Water cooling |
|
Laser wavelength |
1064nm |
1064nm |
1064nm |
|
Pulse energy |
Max. 1.5mJ |
Max. 1.5mJ (single mode), 5mJ |
|
|
Scanning width |
5-150mm adjustable |
5-100mm adjustable |
5-150mm adjustable |
|
Power consumption @25℃ |
＜500W |
<1000W/<1500W |
<4000W/<6000W |
|
Supply gas pressure |
0.4MPa clean air |
0.4MPa clean air |
0.4MPa clean air |

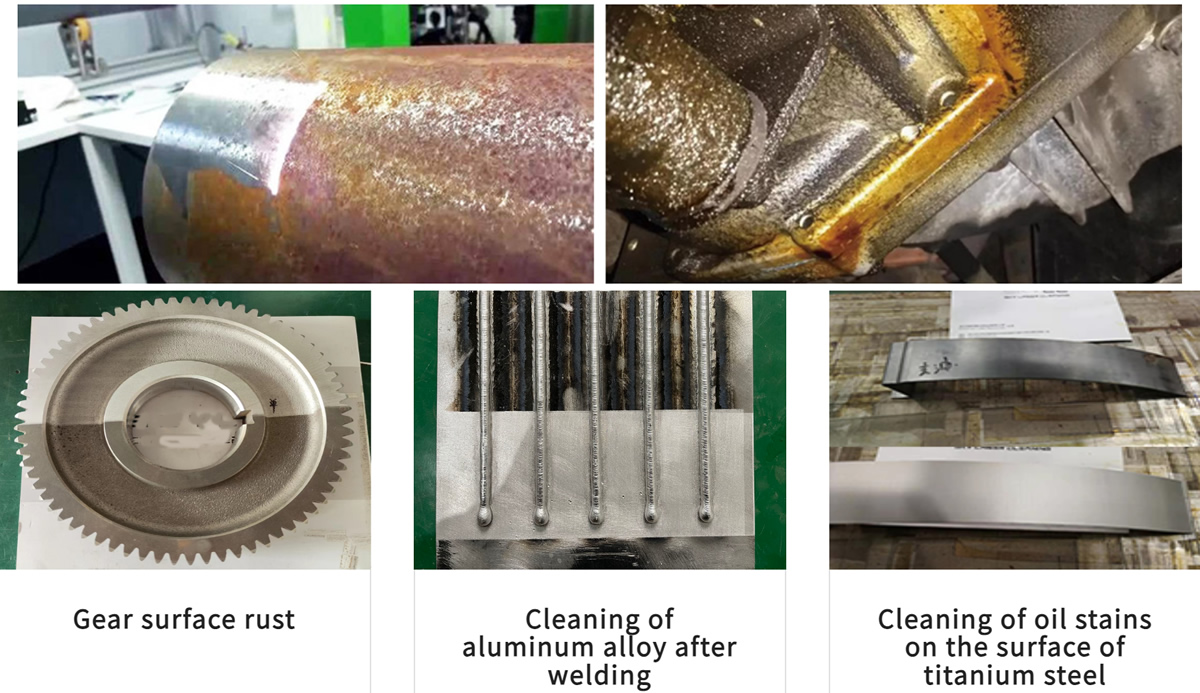

Cleaned Samples:
2. Hand-held CW Laser Cleaning Machines
The high-power CW laser cleaning machines are mainly used
in such as rust removal of steel structures, rust removal of steel
plates, rust removal of ships, paint removal of steel structures, paint
removal of ships and components, oil removal, etc. Suitable for the
refurbishment of marine vessel components, rail transit components,
steel structure rust removal, steel structure refurbishment, etc.
|
Part number |
SXM-CW-H-1000W
SXM-CW-H-1500W
SXM-CW-H-2000W |
SXM-CW-H-3000W |
|
Laser power |
1000/1500/200W |
3000W |
|
Machine weight |
170kg |
220kg |
|
Cleaning head weight |
Lightweight cleaning head |
1.5kg |
|
Fiber length |
10m |
10m |
|
External dimensions |
980*420*712mm |
1264*779*1287mm |
|
Cooling method; |
Internal water circulation |
Internal water circulation |
|
Laser wavelength |
1080nm |
1080nm |
|
Scanning width |
5-150mm adjustable |
5-150mm adjustable |
|
