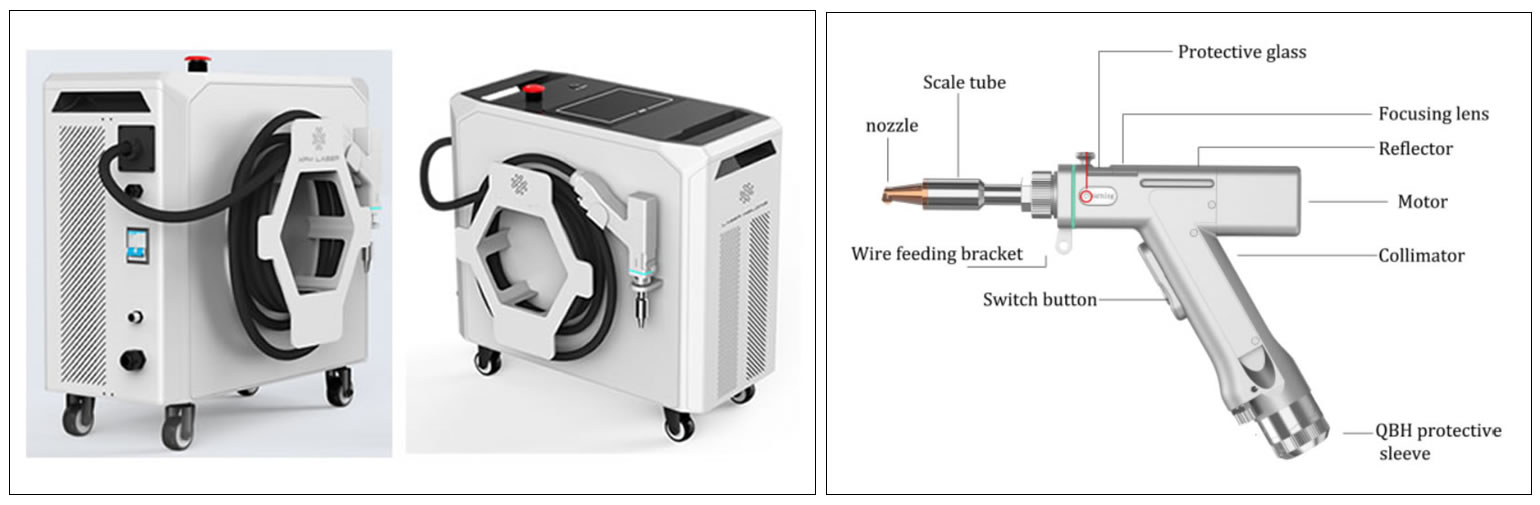

SXF Series Air-cooled Handheld Laser Welding Machines

The advantages of air-cooled handheld laser welding machines mainly include the following points:

Compact size and strong portability: Its size is similar to that of a computer host, so it is very suitable for on-site operations in terms of operation. On site operations or occasions that require mobile welding.
Multiple power options available: offers three power options, 700W, 1200W and 1500W, which can adapt to different welding needs, whether it is precision welding or welding of thicker materials.
Wide welding thickness range: 700W of power is suitable for welding with a thickness of 0.4 to 3 mm, while 1500W of power can handle materials with a thickness of 0.4 to 5mm, covering the most common welding needs.
Easy to operate: Simply press to start welding, suitable for operators with different skill levels.
Accurate control of welding parameters: capable of accurately controlling key parameters during the welding process, ensuring welding quality, and meeting high standard welding requirements.

These advantages make air-cooled handheld laser welding machines efficient, flexible, and reliable welding tools, suitable for various industrial and manual welding scenarios.

Technical Specifications

Model Number	SXF-700W	SXF-1200W	SXF-1500W
Laser power	700W	1200W	1500W

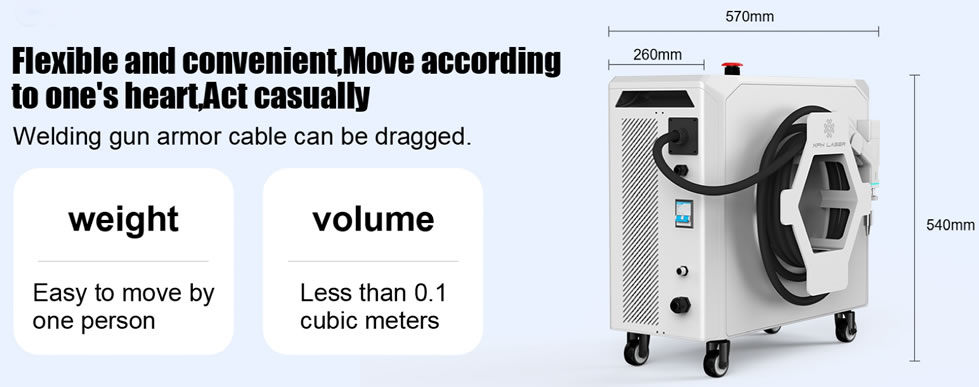

Dimension	570x260x540mm	570x260x540mm	570x260x540mm
Weight	29kg	43kg	48kh
Max. power required	2.5kW	4kW	4.5kW
Input voltage	220VAC, 50/60Hz	220VAC, 50/60Hz	220VAC, 50/60Hz
Cooling method	Air-cooled	Air-cooled	Air-cooled
Operation temp.	-20 ~ 40 degree C	-20 ~ 40 degree C	-20 ~ 40 degree C
Laser wavelength	1070nm	1070nm	1070nm

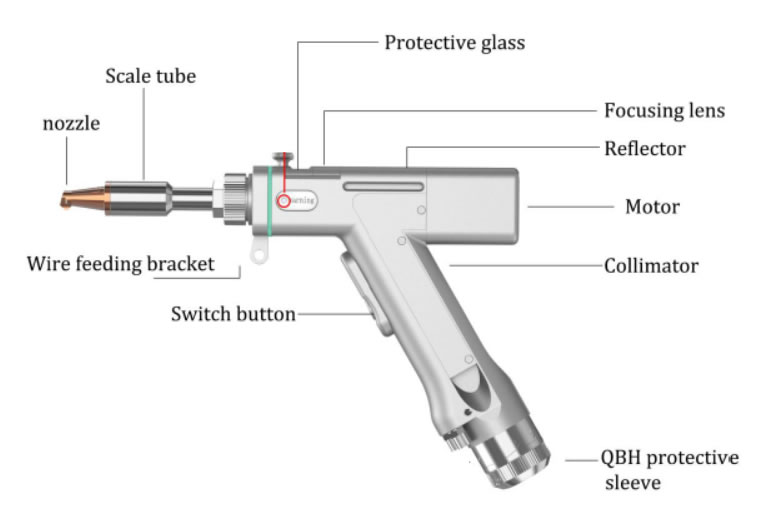

Welding handle length	10m	10m	10m
Welding speed	0-2m/min	0-2m/min	0-2m/min
Welding thickness	0.4-3mm	0.4-4mm	0.4-5mm
Scan width	0-8mm	0-8mm	0-8mm

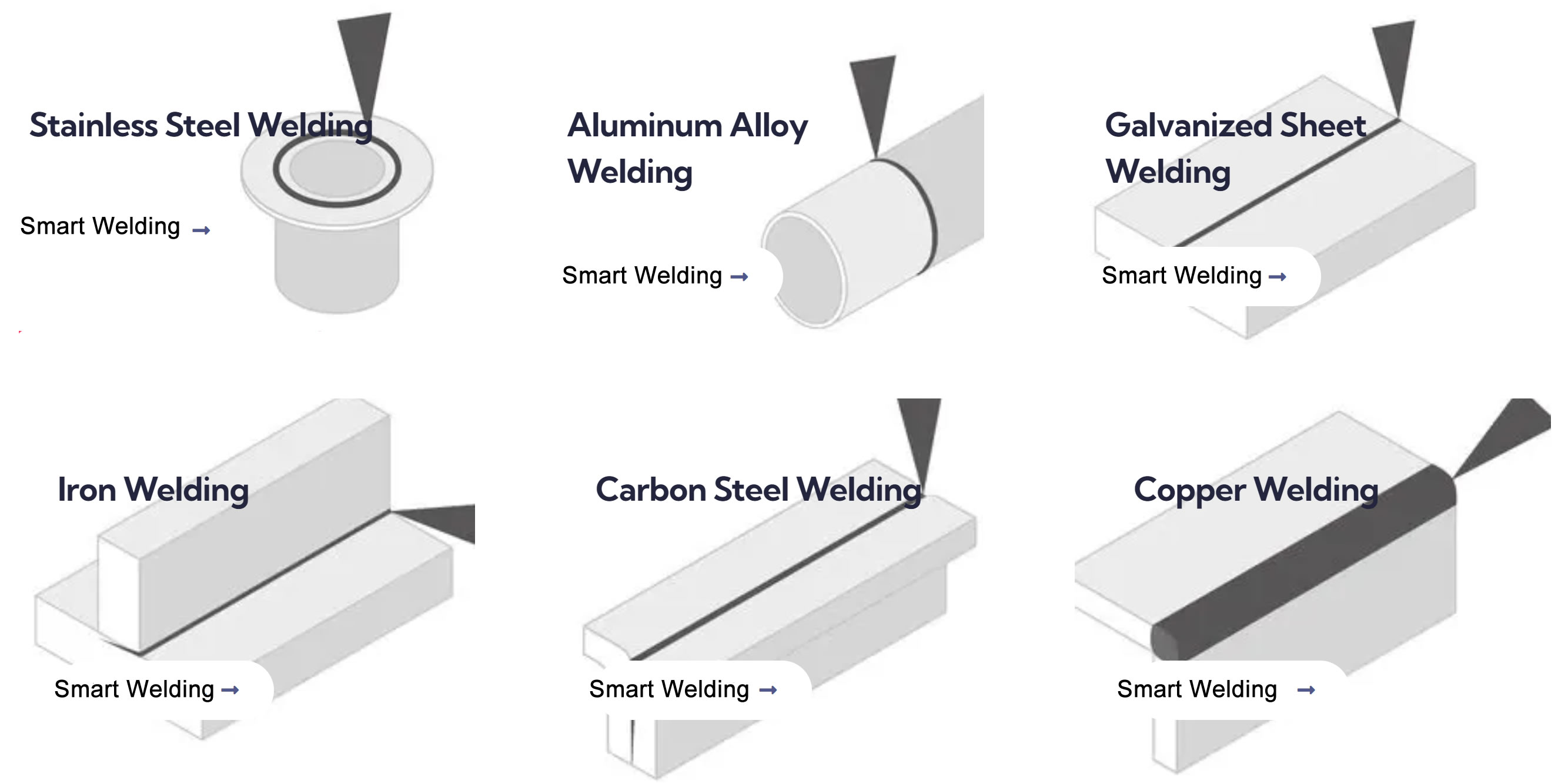

Welding material	Carbon steel, stainless steel, aluminum, galvanized material & other metal materials
Pointing light	Red light	Red light	Red light
Capable of functionality	Welding, cutting, cleaning
Adapted welding wire dia.	0.8/1.0/1.2/1.6/2.0mm
Automatic wire feeding	Standard configuration
Welding wire specs.	Solid coiled wire, same as gas-shielded wire
Welding wire material	Same as welded base material
Protective gas	Nitrogen, argon, carbon dioxide
Protective gas flow rate	10-15 liters per minute

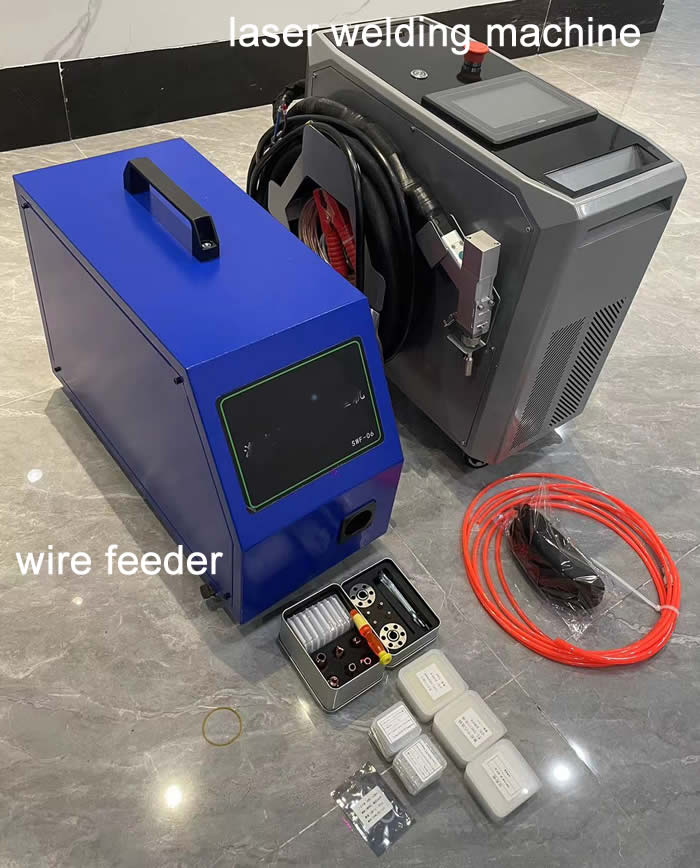

Packing List

1) Laser welding machine, including 10m of welding wire, one unit

2) Wire feeder, including wire feed tube, wire feed wheel accessories, one set

3) Safety goggles, one pair

4) Welding nozzle, five pcs

5) Protective lens, 18*2, five pcs (disposables)

6) Nozzle assembly, including 0.8/1.0/1.2/1.6mm wire nozzle and wire feeder, one set

7) Protective gas connection fittings, one piece

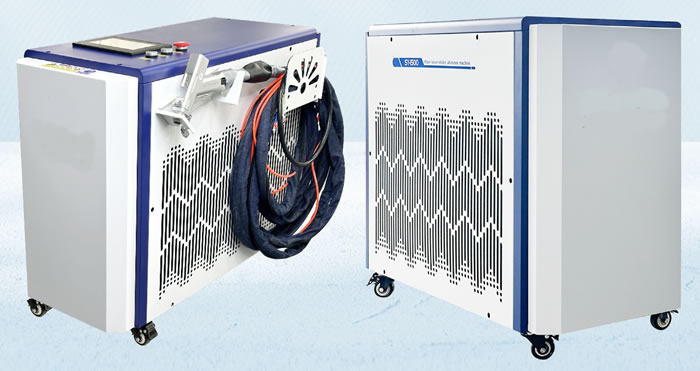

SXF Series Water-cooled Handheld Laser Welding Machines

Model Number	SXF-1000W-W	SXF-1500W-W	SXF-2000W-W	SXF-3000W-W
Laser power	1000W	1500W	200W	3000W
Dimension	870x400x705mm	870x400x705mm	870x400x705mm	1125x520x880mm
Weight	75kg	80kh	85kg	130kg
Max. power required	5kW	6.5kW	9kW	13kW
Input voltage	220VAC, 50/60Hz	220VAC, 50/60Hz	220VAC, 50/60Hz	380VAC, 50/60Hz
Cooling method	Internal water-cooled	Internal water-cooled	Internal water-cooled	Internal water-cooled
Operation temp.	0 ~ 45 degree C	0 ~ 45 degree C	0 ~ 45 degree C	0 ~ 45 degree C
Laser wavelength	1070nm	1070nm	1070nm	1070nm
Welding handle length	10m	10m	10m	10m
Welding speed	0-2m/min	0-2m/min	0-2m/min	0-2m/min
Welding thickness	0.4-3mm	0.4-4mm	0.4-6mm	0.4-8mm
Scan width	0-8mm	0-8mm	0-8mm	0-8mm
Welding material	Carbon steel, stainless steel, aluminum, galvanized material & other metal materials
Pointing light	Red light
Capable of functionality	Welding, cutting, cleaning
Adapted welding wire dia.	0.8/1.0/1.2/1.6/2.0mm
Automatic wire feeding	Standard configuration
Welding wire specs.	Solid coiled wire, same as gas-shielded wire
Welding wire material	Same as welded base material
Protective gas	Nitrogen, argon, carbon dioxide
Protective gas flow rate	10-15 liters per minute
