P/N: SHR-LGPS-1064-60-10

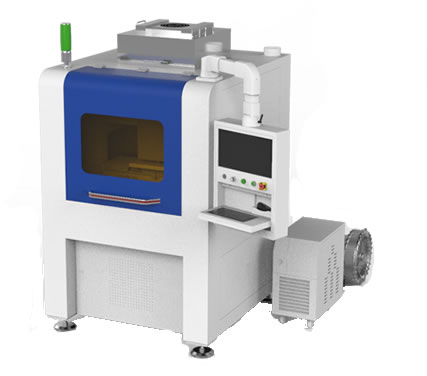

Three axis
laser glass cutting machine, using perfect score tecnology (PST) and
particle swarm optimization (PSO) core technology to ensure high-speed
cutting of shaped glass with chipping less than 10um. It has high
database integration, accurate and fast to find out the best process
parameters. Besides, it has PLC interactive system and easy to adapt to
the integration of automated production lines.
Features:
-
· Reduce
cost and increase efficiency
-
· Stable
and reliable equipment
-
· High
speed cutting of shaped glass
-
· Rapid
integration of automated production lines
Product parameters:
|
Laser power |
60W/60khz |
|
Laser wavelength |
1064nm |
|
Repetition rate |
50-300kHz |
|
Drawing file |
Support software direct editing drawing, support CAD drawing
file importing |
|
Pulse width |
10ps |
|
Maximum thickness of cutting |
6mm |
|
Spacing accuracy |
+/-0.5um |
|
Machining resolution |
1um |
|
Amount of chipping |
≤10um |
|
Cutting speed |
≤300mm/s |
|
Processing width |
400mm×600mm（selectable） |
|
Processing acceleration |
1g |
|
Machining precision |
＜5um |
|
Vision module |
expandable |
|
Platform type |
Marble table |
|
Axis control |
4
control port |
|
Control interface |
RS-232/ethernet |
|
Cable length |
3m |
|
Cooling method |
Water cool |
|
Voltage |
AC220V/AC110V, 50Hz/60Hz |
|
Storage temperature |
10°C ~ 35°C |
|
Operating temperature |
20°C ~ 30°C |
|
Humidity |
<60% |
|
Environment dust |
<0.20 mg/m3 |
|
Oil
mist |
Not
allow |
|
Weight |
~70kg |
* The
parameters can be customized upon request. Please contact us for more
information.
Software:
PLC
automatic programming

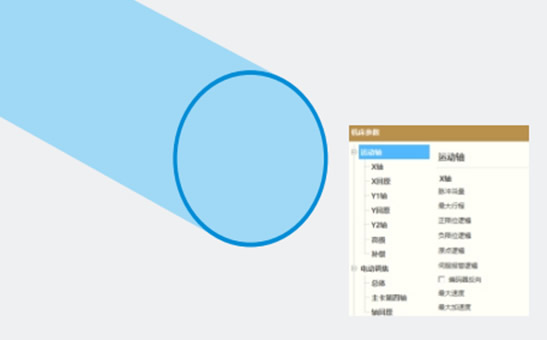

Graphic
Editing features
-
Compatible with all types of editorial documents
-
Automatic optimization of machining paths
-
Customizable editing paths
Four axis
control
·
Output four-axis control signals for rotary cutting

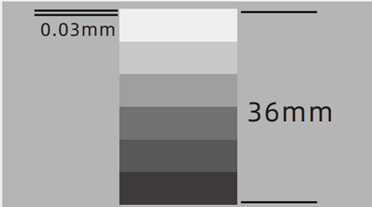

Layered
processing function
Automatic
completion of 6 layer cutting
Control
interface 4 in 1

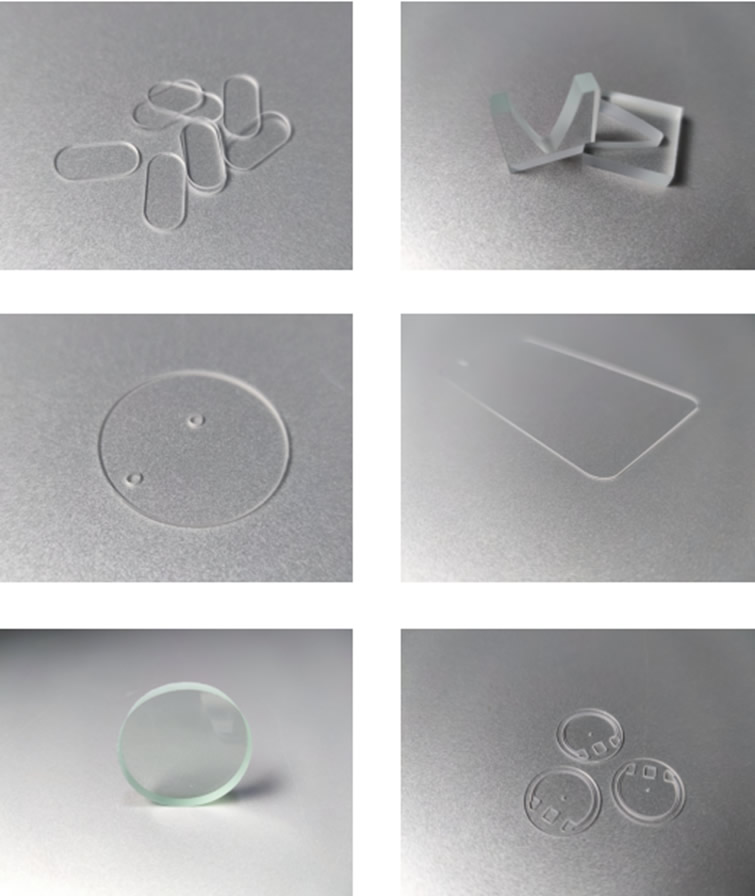

Sample display:
 |
