          Scan Mirrors (Galvo Mirrors)



The scan mirrors are rectangular mirror of light weight. They are to be used for high speed two-axis laser scanning system. The dimensions of each mirror have been calculated to allow for scanning of a laser beam with no beam spill over at the extremes of scan. The mirrors have high reflectivity of 99.7% or above and so may be safe at high powers.

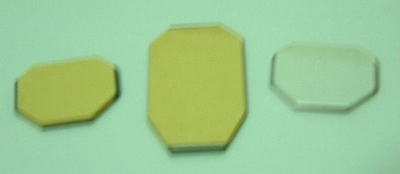

Scan mirrors                                                                                    Mounted scan mirrors with mirror holders

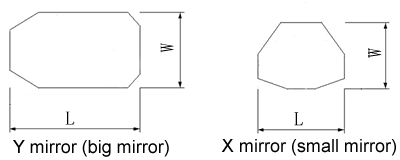

Model Description: SMxxxx-xxA-LxWxT-Dx-BB

       SM: laser scan mirror

       xxxx: laser wavelength, 1064nm, 532nm or10.6um

       xx: maximum allowed input beam diameter (mm)

       A: X mirror or Y mirror

       LxWxT: dimension, length x width x thickness (mm)

       Dx: mounted scan mirror with holder, x is the hole diameter of the holder in mm

       BB: other for special use such as SJ series and WT series



Example: SM1064-12X-21x16.8x2-D5-SJ, mounted X mirror at 1064nm wavelength, mirror dimension 21x16x22mm, hole diameter of the holder of 5mm, dielectric coating at 1064nm



Scan Mirrors (10.6um, CO2 laser)

Max input beam diameter

Part number

Dimension

(LxWxT, mm)

Remark

8

SM10.6-8X-18x13x1.5-SJ

18x13x1.5

Fused silica, gold-coating

8

SM10.6-8Y-23.2x16x1.5-SJ

23.2x16x1.5

Fused silica, gold-coating

8

SM10.6-8X-18x13x1.9-SJ

18x13x1.9

Fused silica, gold-coating

8

SM10.6-8Y-23.2x16x1.9-SJ

23.2x16x1.9

Fused silica, gold-coating

10

SM10.6-10X-18x14.5x2-SJ

18x14.5x2

Fused silica, gold-coating

10

SM10.6-10Y-24x16x2-SJ

24x16x2

Fused silica, gold-coating

10

SM10.6-10X-20.3x13.7x1.5-WT

20.3x13.7x1.5

Fused silica, gold-coating

10

SM10.6-10Y-24.4x17.8x1.5-WT

24.4x17.8x1.5

Fused silica, gold-coating

10

SM10.6-10X-18x14x2-LK

18x14x2

Fused silica, gold-coating

10

SM10.6-10Y-24x16x2-LK

24x16x2

Fused silica, gold-coating

12

SM10.6-12X-21x16.8x2-SJ

21x16.8x2

Fused silica, gold-coating

12

SM10.6-12Y-30x19x2-SJ

30x19x2

Fused silica, gold-coating

12

SM10.6-12X-21x16x2-WT

21x16x2

Fused silica, gold-coating

12

SM10.6-12Y-32x19x2-WT

32x19x2

Fused silica, gold-coating

12

SM10.6-12X-20x16x2-LK

20x16x2

Fused silica, gold-coating

12

SM10.6-12Y-30x19x2-LK

30x19x2

Fused silica, gold-coating

15

SM10.6-15X-27x19x2-SJ

27x19x2

Fused silica, gold-coating

15

SM10.6-15Y-37x22x2-SJ

37x22x2

Fused silica, gold-coating

16

SM10.6-16X-28x20x2-SJ

28x20x2

Fused silica, gold-coating

16

SM10.6-16Y-39x23x2-SJ

39x23x2

Fused silica, gold-coating

16

SM10.6-16X-27x21-2.5-LK

27x21-2.5

Fused silica, gold-coating

16

SM10.6-16Y-38x24x2.5-LK

38x24x2.5

Fused silica, gold-coating

20

SM10.6-20X-37x24x2-SJ

37x24x2

Fused silica, gold-coating

20

SM10.6-20Y-49x31x2-SJ

49x31x2

Fused silica, gold-coating

25

SM10.6-25X-46x30x3-SJ

46x30x3

Fused silica, gold-coating

25

SM10.6-25Y-56.4x39x3-SJ

56.4x39x3

Fused silica, gold-coating

32

SM10.6-32X-57.5x36x3-SJ

57.5x36x3

Fused silica, gold-coating

32

SM10.6-32Y-68x45x3-SJ

68x45x3

Fused silica, gold-coating



Scan Mirrors (1064nm, Nd:YAG laser)

Max input beam diameter

Part number

Dimension

(LxWxT, mm)

Remark

7

SM1064-7X-12X10X1-SJ

12X10X1

Optical glass, dielectric coating, reflectivity >99.5% at 1064nm and >80% at 633nm.

7

SM1064-7Y-17X10X1-SJ

17X10X1

8

SM1064-8X-18x13x1.5-SJ

18x13x1.5

8

SM1064-8Y-22x15x1.5-SJ

23.2x16x1.5

8

SM1064-8X-18x13x1.9-SJ

18x13x1.9

8

SM1064-8Y-22x15x1.9-SJ

23.2x16x1.9

10

SM1064-10X-20x15x2-SJ

20x15x2

10

SM1064-10Y-27.5x17x2-SJ

27.5x17x2

10

SM1064-10X-20.3x13.7x1.5-WT

20.3x13.7x1.5

10

SM1064-10Y-24.4x17.8x1.5-WT

24.4x17.8x1.5

10

SM1064-10X-18x14x2-LK

18x14x2

10

SM1064-10Y-24x16x2-LK

24x16x2

12

SM1064-12X-21x16.8x2-SJ

21x16.8x2

12

SM1064-12Y-30x19x2-SJ

30x19x2

12

SM1064-12X-21x16x2-WT

21x16x2

12

SM1064-12Y-32x19x2-WT

32x19x2

12

SM1064-12X-20x16x2-LK

20x16x2

12

SM1064-12Y-30x19x2-LK

30x19x2

15

SM1064-15X-27x19x2-SJ

27x19x2

15

SM1064-15Y-37x22x2-SJ

37x22x2

16

SM1064-16X-28x20x2-SJ

28x20x2

16

SM1064-16Y-39x23x2-SJ

39x23x2

16

SM1064-16X-27x21-2.5-LK

27x21-2.5

16

SM1064-16Y-38x24x2.5-LK

38x24x2.5

20

SM1064-20X-37x24x2-SJ

37x24x2

20

SM1064-20Y-49x31x2-SJ

49x31x2

25

SM1064-25X-46x30x3-SJ

46x30x3

25

SM1064-25Y-56.4x39x3-SJ

56.4x39x3

32

SM10.6-32X-57.5x36x3-SJ

57.5x36x3

32

SM10.6-32Y-68x45x3-SJ

68x45x3



Scan Mirrors (532nm, Nd:YAG laser)

Max input beam diameter

Part number

Dimension

(LxWxT, mm)

Remark

12

SM532-12X-21x16.8x2-SJ

21x16.8x2

Optical glass, dielectric coating, reflectivity >99.5% at 532nm.

12

SM532-12Y-30x19x2-SJ

30x19x2

12

SM532-12X-21x16x2-WT

21x16x2

12

SM532-12Y-32x19x2-WT

32x19x2

15

SM532-15X-27x19x2-SJ

27x19x2

15

SM532-15Y-37x22x2-SJ

37x22x2

16

SM532-16X-28x20x2-SJ

28x20x2

16

SM532-16Y-39x23x2-SJ

39x23x2

20

SM532-20X-37x24x2-SJ

37x24x2

20

SM532-20Y-49x31x2-SJ

49x31x2

25

SM532-25X-46x30x3-SJ

46x30x3

25

SM532-25Y-56.4x39x3-SJ

56.4x39x3



Scan Mirrors (visible light)

Max input beam diameter

Part number

Dimension

(LxWxT, mm)

Remark

10

SMV-10X-20.3x13.7x1.5-WT

20.3x13.7x1.5

Optical glass, protective silver coating

10

SMV-10Y-24.4x17.8x1.5-WT

24.4x17.8x1.5

12

SMV-12X-21x16x2-WT

21x16x2

12

SMV-12Y-32x19x2-WT

32x19x2



Scan Mirrors (1550nm)

Max input beam diameter

Part number

Dimension

(LxWxT, mm)

Remark

12

SM1550-12X-21x16.8x2-SJ

21x16.8x2

Optical glass,

di-electric coating

12

SM1550-12Y-30x19x2-SJ

30x19x2



Scan Mirrors (750nm)

Max input beam diameter

Part number

Dimension

(LxWxT, mm)

Remark

12

SM750-12X-21x16.8x2-SJ

21x16.8x2

Optical glass,

di-electric coating

12

SM750-12Y-30x19x2-SJ

30x19x2



Customized scan mirrors (various wavelengths and dimensions) are available on request.
