         List of Products             CO2 Laser Engraving, Marking and Cutting Machines


Universal Laser Systems, Inc. is an industry pioneer and highest volume manufacturer of computer-controlled CO2 laser systems used for laser marking, engraving and cutting operations. We have designed, manufactured and shipped thousands of CO2 laser systems worldwide. Universal is also one of the worlds largest suppliers of CO2 lasers. In 1998 we introduced the industrys first complete line of air-cooled, RF-excited CO2 lasers. Since then, we have consistently outpaced the market with new state-of-the-art technological advancements in CO2 lasers and laser systems. Sintec Optronics is an authorized distributor for Universal Laser Systems in Asia.



Universal Laser Systems, Inc. manufactures computer controlled laser engraving, laser cutting and laser marking systems. Our laser processing systems transform images or drawings on your computer screen into real items made out of an amazing variety of materials... wood, plastic, fabric, paper, glass, leather, stone, ceramic, rubber... and they are as easy to use as your printer.



There are series of CO2 lasers used in the machines. The powers range from 10W to 400W. Power benefits:

  • 10 Watts Low power level for light engraving and thin material cutting.

  • 25-35 Watts Entry-level production power level for standard engraving and cutting operations at moderate speed and high speed low power engraving. Not recommended for thick cutting or dual head applications.

  • 40-60 Watts Medium production power level for deeper, high speed engraving and thick cutting operations at moderate speed.

  • 65-80 Watts High production power level provides increased throughput, deep engraving and cutting.

  • 85-120 Watts Very high production power level that is ideal for heavy cutting and deep, higher throughput engraving. Ideal for use with dual head. In a dual laser system (X2-SuperSpeed only), turning one laser off is helpful for precision engraving of very low power materials.

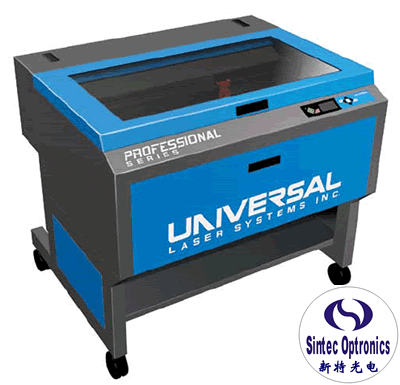

1.      PLS Series Laser Engraving and Cutting Machines



The entire Professional Series laser system including the CO2 laser cartridge, platform chassis, electronics and software interface is designed and manufactured by Universal Laser Systems. Every aspect of the system has been tuned to work together in perfect harmony to provide the best possible cutting, marking and engraving quality. Universals superior engineering and innovative technology result in systems that provide years of profitable, reliable and productive service.



l       The Professional series is designed for new and experienced users with demanding production requirements.

l       The advanced Laser Interface+ materials-based print allows user to choose between automatic and manual settings.

l        Systems are available with 10 to 120 watts of air-cooled laser power.

l       Field upgradeable firmware and software and flash upgradeable electronics extend the useful life of the system.

l       Four focusing modes are available, including motorized manual focus, auto focus, focusing from front LCD panel and through the print driver.

l       A 2.0 (50mm) focal length lens is standard; optional lenses are available.

l       Users can set and run multiple focus settings in same job.

l       Users can save, store and load material job settings on the fly.

l       Run time estimator provides an estimate of the time needed to run a job.

l       Relocatable origin resets the home position origin to work with your graphic software with 0.001 resolution.

l       Proportional pulse control (patented) provides userdefinable spacing between laser pulses for better engraving or cutting quality.

l       Multiple language support is available for ease of operation.

l       The system auto-detects the rotary fixture, cutting table and air compressor upon installation.

l       Shielded, interchangeable focusing optics stay cleaner for a longer period of time.





PLS3.60

PLS4.60

PLS6.60

PLS6.120

Work Area

24 x 12

(610mm x 305mm)

24 x 18

(813mm x 457mm)

32 x 18

(813mm x 457mm)

32 x 18

(813mm x 457mm)

Table Size

29 x 17

(737mm x 432mm)

29 x 23

(737mm x 584mm)

37 x 23

(940mm x 584mm)

37 x 23

(940mm x 584mm)

Maximum Part Size

29W x 17H x 9D 737x432x229mm

29W x 23H x 9D

737x584mmx229mm

37W x 23H x 9D

940x584x229mm

37W x23H x 9D

940x584x229mm

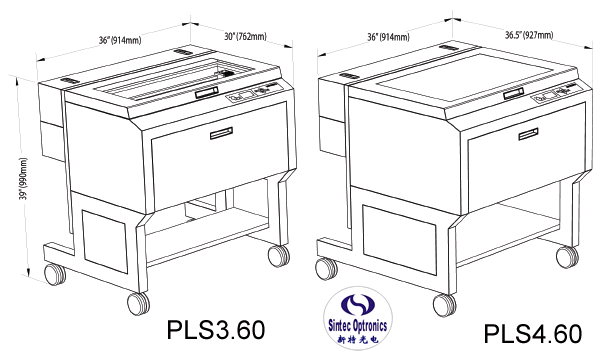

Overall Dimensions

36W x 38H x 30D 914x965x762mm

36Wx39Hx36.5D

914x991x927mm

44Wx39Hx37.5D 1118x991x953mm

44Wx39Hx37.5D

1118x991x953mm

Laser Power Options

10, 25, 30, 35, 40, 45, 50, 55, 60 watts

10, 25, 30, 35, 40, 45, 50, 55, 60 watts

10, 25, 30, 35, 40, 45, 50, 55, 60 watts

10, 25, 30, 35, 40, 45, 50, 55, 60 Select any two lasers for up to 120 watts combined power

Weight

235 lbs. (107 kg)

270 lbs. (123 kg)

325 lbs. (148 kg)

345 lbs. (156 kg)

User Interface

Keypad and LCD

Keypad and LCD

Keypad and LCD

Keypad and LCD

Printer Control / Connection

Windows XP/ Vista; USB 2.0*

Windows XP/Vista; USB 2.0*

Windows XP/ Vista; USB 2.0*

Windows XP/Vista; USB 2.0*

Power Requirements

110V/10A or 220V/5A; 50/60Hz

110V/10A or 220V/5A; 50/60Hz

110V/10A or 220V/5A; 50/60Hz

220V/15A; 50/60Hz

Exhaust Connection

External exhaust required: Port is 4 inches in diameter

External exhaust required: Port is 4 inches in diameter

External exhaust required: 2 ports (4 inches in diameter)

External exhaust required: 2 ports (4 inches in diameter)



2. VLS Series Laser Engraving and Cutting Machines

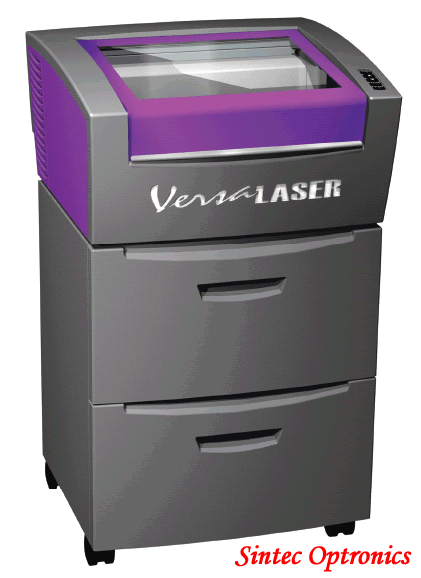

VersaLaser functions like a true plug and play computer peripheral.  It has a friendly, materials-based print driver that eliminates complex power, speed and materials calculations.  Affordable, easy to use and easy to install, VersaLaser is a great first step to expanding into the laser market. Available in 16"x12" or 24"x12" engraving areas and five laser power options.



l         16"x12" or 24"x12" Work Area

l         Cross-Platform Compatibility With All ULS Air-Cooled Quick Change Laser Cartridges (Patented)

l         10 or 25 watts - VLS2.30

l         10, 25, 30, 40 or 50 watts - VLS3.50

l         Auto Focus and Red Dot Pointer standard

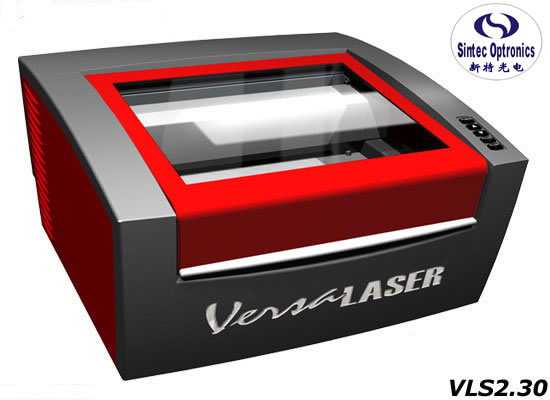

VLS2.30

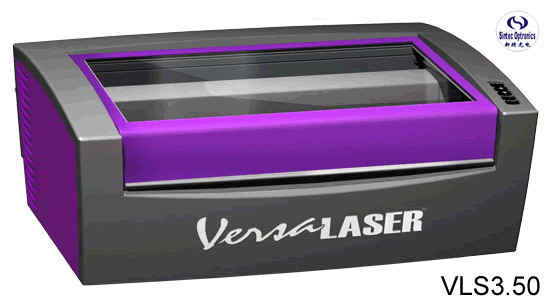

VLS3.50

Work Area

16 x 12 (406mm x 305mm)

24 x 12 (610mm x 305mm)

Table Size

18.75 x 14.5 (476mm x 368mm)

26.75 x 14.5 (679mm x 368mm)

Maximum Part Size

18.75Wx14.5Hx4D(476x368x102mm)

26.75Wx14.5Hx4D(679x368x102mm)

Overall Dimensions

With cart:26Wx44Hx25D

               661x1118x635mm

Without cart:26Wx14.5Hx25D

               661x368x635mm

With cart:34Wx44Hx25D

               864x1118x635mm

Without cart:34Wx14.5Hx25D

               864x368x635mm

Laser Power Options

10, 25, 30 watts

10, 25, 30, 35, 40, 45, 50watts

Weight

85-92 lbs. (39-42 kg)

110-123 lbs. (50-56 kg)

User Interface

Five button keypad

Five button keypad

Printer Control

Windows XP/ Vista; USB 2.0*

Windows XP/Vista; USB 2.0*

Power Requirements

110-220V/5A; 50/60Hz

110-220V/10A; 50/60Hz

Exhaust Connection

One 3 port

One 3 port

Optional accessories

l  Downdraft honeycomb cutting table

l  Computer controlled compressor air unit

l  Air assist back sweep

l  Air assist cone

l  Integrated cart

l  Rotary fixture

l  High power density focusing optics

l  Dual head

l  Red pointer

l  Lens kit (1.5 or 2.0)

l  Downdraft honeycomb cutting table

l  Computer controlled compressor air unit

l  Air assist back sweep

l  Air assist cone

l  Integrated cart

l  Rotary fixture

l  High power density focusing optics

l  Dual head

l  Red pointer

l  Lens kit (1.5 or 2.0)


 Accessories of CO2 laser engraver/cutter/marker          Photos of engraved samples
