          CW & Pulsed Fiber Lasers



          STR Series Fiber Lasers



1. STR Series Pulsed Fiber Lasers



STR series pulsed fiber laser is a compact module up to 100W output power with fiber delivery through a near diffraction limited beam. The excellent beam quality and power stability make this series laser a multipurpose tool with cost effective performance and maintenance free operation.



Features:

->High efficiency

->Good beam quality

->Compact rugged package

->Maintenance free operation



Applications:

->Marking

->Engraving

->Micromachining

->Precision drilling

->Welding

->Cutting



Technical specifications:

Model

STR-P10

STR-P20

STR-P30

STR-P50

Central Emission wavelength (nm)

1060-1085

1060-1085

1060-1085

1060-1085

Polarization

Random

Random

Random

Random

Nominal average output power (W)

10

20

30

50

Pulse energy (mJ)

0.5@20kHz

1.0@20kHz

1.0@20kHz

1.0@20kHz

Pulse repetition rate (kHz)

20-80

20-80

30-80

50-100

Pulse width (ns)

90@20kHz

120@20kHz

120@30kHz

120@50kHz

Typical beam quality (M2)

<1.5

<1.5

<1.5

<1.8

Collimated beam diameter (mm)

6-8

6-8

6-8

6-8

Output power tunability (%)

10-100

10-100

10-100

10-100

Long term power stability (8hrs)

<3%

<3%

<3%

<3%

Length of beam delivery fiber (m)

2.0

2.0

2.0

2.0

Operating voltage

24VDC

24VDC

24VDC

24VDC

Typical power consumption (W)

80

150

250

350

Cooling

Air

Air

Air

Air

Operating temperature (oC)

0-45

0-45

0-45

0-45

Dimension WxDxH (mm)

260x391x120

260x391x120

260x391x120

484x490x185



We also provide beam combiner modules STH-1064-12 (or called as red aiming module), which is designed for the use with the fiber lasers STR-P10, -P20 and -P30.Inside there is a beam combiner. A red diode is vertically fixed and the fiber laser beam horizontally goes through the module.





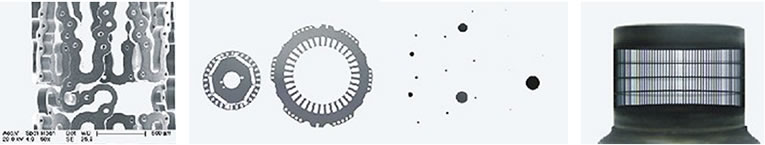

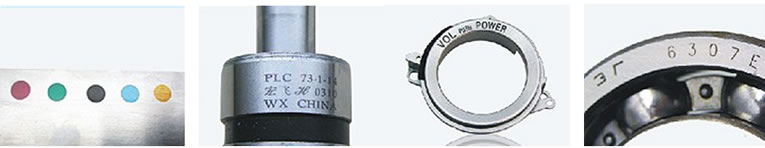

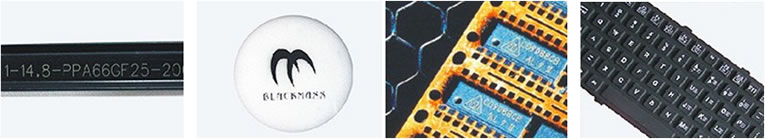

Typical Application Samples:



 2. STR Series Single Mode CW Fiber Lasers

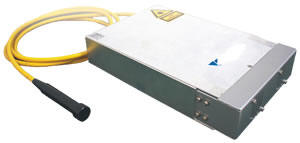

STR series low power single mode CW fiber laser is a compact module up to 50W output power with fiber delivery through a near diffraction limited beam. The excellent beam quality and power stability make this laser a multipurpose tool with cost effective performance and maintenance free operation.



Features:

-> High efficiency

-> Excellent beam quality

-> Compact air-cooled package

-> Maintenance free operation



Applications:

-> Marking

-> Engraving

-> Micromachining



Technical specifications:

Model

STR-C5

STR-C10

STR-C20

STR-C50

Mode of operation

CW

CW

CW

CW/Modulated

Central Emission wavelength (nm)

1060-1085

1060-1085

1060-1085

1060-1085

Polarization

Random

Random

Random

Random

Nominal output power (W)

5

10

20

50

Max. modulation frequency (kHz)

NA

NA

NA

50

Beam quality (M2)

<1.05

<1.05

<1.05

<1.1

Collimated beam diameter (mm)

3-7

3-7

3-7

3-7

Output power tunability (%)

10-100

10-100

10-100

10-100

Long term power stability (8hrs)

<3%

<3%

<3%

<3%

Length of beam delivery fiber (m)

2

2

2

5

Operating voltage

24VDC

24VDC

220VAC

220VAC

Power consumption (W)

35

55

100

250

Cooling

Air

Air

Air

Air

Operating temperature (oC)

0-45

0-45

0-45

0-45

Dimension WxDxH (mm)

146x230x42

146x230x42

215x304x105

450x650x246





3. STR Series Single Mode CW Fiber Lasers

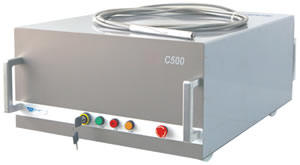

STR series high power single mode CW fiber laser is up to 500W output power with fiber delivery through a near diffraction limited beam. The excellent beam quality and power stability make this series laser a multipurpose tool with cost effective performance and maintenance free operation.



Features:

-> High efficiency

-> Excellent beam quality

-> Collimated output

-> Maintenance free operation



Applications:

-> Micromachining

-> Cutting

-> Welding

-> Drilling

-> Printing





Technical specifications:

Model

STR-C100

STR-C200

STR-C500

Mode of operation

CW/Modulated

CW/Modulated

CW/Modulated

Central Emission wavelength (nm)

1060-1085

1060-1085

1060-1085

Polarization

Random

Random

Random

Nominal output power (W)

100

200

500

Max. modulation frequency (kHz)

50

50

50

Beam quality (M2)

<1.1

<1.1

<1.1

Collimated beam diameter (mm)

3-7

3-7

3-7

Output power tunability (%)

10-100

10-100

10-100

Long term power stability (8hrs)

<2%

<2%

<2%

Length of beam delivery fiber (m)

5-10

5-10

5-10

Operating voltage (VAC)

220

220

220

Typical power consumption (W)

500

900

2000

Cooling

Air

Air /Water

Water

Operating temperature (oC)

0-40

10-40

10-40

Dimension WxDxH (mm)

450x650x246

450x650x246

450x650x246





          STJ Series Fiber Lasers

1. STJ LP-Series Fiber Lasers

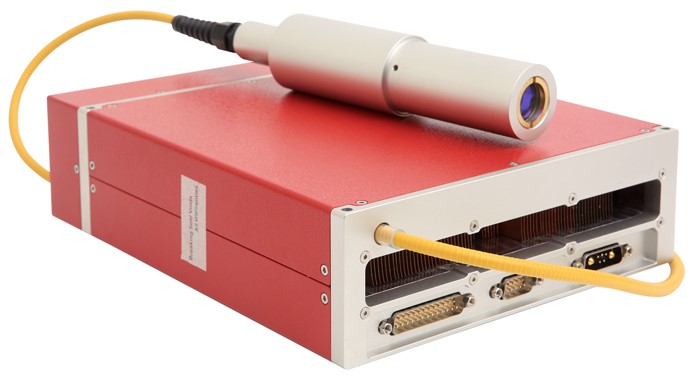

STJ-LP series fiber laser adopts MOPA (Master Oscillator Power Amplifier) structure, diode laser as seed light, and fiber based power amplification. This laser integrates independence adjustment of pulse width and frequency, to make sure a constant pulse energy output, which provides a good combining solution to the requirements of high power laser source and high marking speed.



The extremely flexible pulse width and frequency adjustment, which plays a significant impact on colour formation, enables colour or silver shining marking on stainless steel.



Features:

         Flexible & independent control of pulse width & frequency

         Selectable pulse shape

         High repetition frequency

         No laser leakage



Applications:

         Marking / Colour marking

         Ablation

         Cutting

         Drilling

         Scribing

         Soldering

         Trimming

         Engraving



Technical specifications:

Model

STJ-FLP-20-LP-S

STJ-FLP-30-LP-S

M2

<1.3

<1.8

Nominal Average Output power

>20W

>30W

Maximum Pulse Energy

0.66mJ

1.2mJ

Full Power Repetition Range

30~400kHz

25~400kHz

Pulse Repetition Rate Range

1~400kHz

1~400kHz

Pulse Width Range

200ns

200ns

Long Term Average Power Instability

<5

<5

Power Consumption~ 20C

<120

<140

Central Emission Wavelength

1064nm

1064nm

Emission Bandwidth ~ 3dB

<5nm

<5nm

Output Beam Diameter

7mm

6mm

Fiber length (m)

2.0

2.0

Power consumption @ 20C (W)

130

150

Operating temperature (C)

0~40

0~40

Storage temperature (C)

-10~60

-10~60

Cooling

Air

Air



2. STJ M1+ Series Fiber Lasers

STJSTJ-FLP-M1-S series MOPA pulsed fiber lasers make use of master oscillator power amplifier (MOPA) configuration, and show excellent laser performance as well as high level of temporal pulse shaping controllability. As compared to the Q-switching technology, the pulse repetition frequency (PRF) and pulse width can be controlled independently in MOPA configuration, while the peak power of the fiber laser can be well maintained. This feature is crucial for material processing applications, such as laser marking. Besides, its good pulse width tunability enables minimum pulses deformation, increases the thresholds of nonlinearities, and hence makes the laser more reliable and robust.



Features:

         >20W nominal power

         >50,000 hours lifetime

         Excellent beam quality

         Adjustable pulse width (6~200ns)

         Adjustable pulse frequency (1~1000kHz)

         Precise pulse control, first pulse usability

         Anti-reflection protection

         Flexible and customizable control



Applications:

         Alumina black etching

         ITO etching

         Thin metal surface processing

         Flexible oriented circuit processing

         Fine processing



Technical specifications:

Model

STJ-FLP-20-M1+-S

Mode of operation

pulsed

M2

<1.3

Nominal Average Output power

20W

Maximum Pulse Energy

0.4mJ

Full Power Repetition Range

50~1000kHz

Pulse Repetition Rate Range

1~400kHz

Pulse Width Range

6~200ns

Long Term Average Power Instability

<5%

Power Consumption~ 20C

<120

Dow Power Range

1-50KHz

Central Emission Wavelength

1064nm

Emission Bandwidth ~ 3dB

<5nm

Output Beam Diameter

7mm

Fiber length (m)

2.0

Power consumption @ 20C (W)

130

Operating temperature (C)

0~40

Storage temperature (C)

-10~60

Cooling

Air



3. STJ M6 Series Fiber Lasers

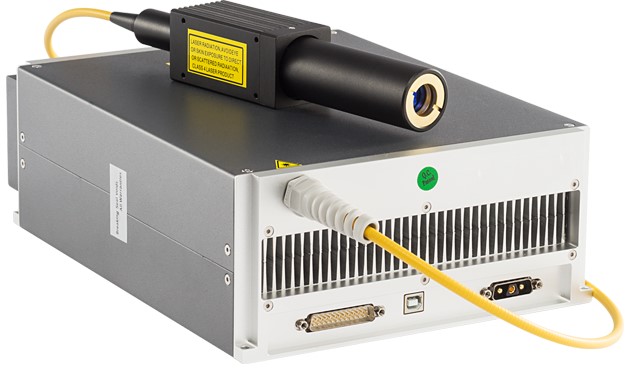

STJ-FLP-M6-S series make use of master oscillator power amplifier (MOPA) :

         NEW GUI software: user friendly interface, realizing human-machine interaction

         First pulse usable and adjustable

         Zero time delay: faster response speed

         Precise pulse control: pulse-to-pulse controllable

         Broader pulse width range:2~250ns

         Wider pulse frequency range:1~1000kHz

         No ghost image configuration



Features:

         >20W nominal power

         >50,000 hours lifetime

         Excellent beam quality

         Adjustable pulse width (6~200ns)

         Adjustable pulse frequency (1~1000kHz)

         Precise pulse control, first pulse usability

         Anti-reflection protection

         Flexible and customizable control



Applications:

         First pulse usability and adjustability

         Fast on/off time

         No ghost image

         High speed bitmap scanning

         Anti-reflection protection

         No photon darkening effect



Technical specifications:

Model

STJ-FLP-20-M6-S

STJ-FLP-30-M6-S

Mode of operation

pulsed

pulsed

M2

<1.3

<1.3

Nominal Average Output power

20W

30W

Maximum Pulse Energy

0.45mJ

0.9mJ

Full Power Repetition Range

45~1000kHz

31~1000kHz

Pulse Repetition Rate Range

1~1000kHz

1~1000kHz

Pulse Width Range

2~250ns

2~250ns

Long Term Average Power Instability

<5%

<5%

Power Consumption~ 20C

<120

<120

Dow Power Range

1-45KHz

1-31KHz

Central Emission Wavelength

1064nm

1064nm

Emission Bandwidth ~ 3dB

<5nm

<5nm

Output Beam Diameter

7mm

7mm

Fiber length (m)

2.0

2.0

Power consumption @ 20C (W)

<130W

<150W

Operating temperature (C)

0~40

0~40

Storage temperature (C)

-10~60

-10~60

Cooling

Air

Air

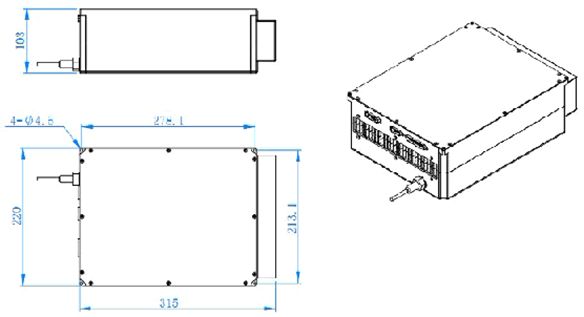

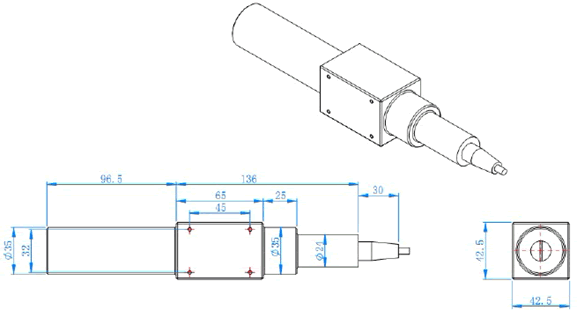

Dimension:


          STYL series nano-second Pulsed Fiber Lasers





1. STYL 15W Fiber Laser

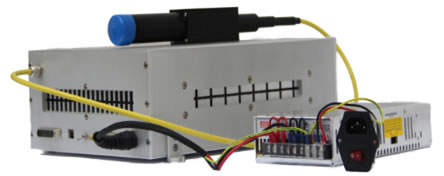

STYL-15-0.5 is a unique product for precisely micro-machining industry. Based on highly reliable seed laser, the system offers long term reliability and performance. With the peak power of more than 30kW, selectable pulse width in 0.5ns~5ns and highly pulse energy (up to 200μJ), STYL-15-0.5 is an ideal light source for black marking on anodized aluminum, Ceramic marking, hole drilling, ITO film removal and so on.





Product Features

l   All-fiber system

l   Pulse width: 0.5~5ns

l   Peak Power  Up to 30kW

l   Repetition rate: 1001000KHz

l   Pulse energy: Up to 200μJ

l   Beam quality: M2<1.5

l   Dust-proof design and ideal for OEM integration



Applications

l   Metal marking, color marking

l   Black marking on anodized AI

l   Ceramic marking, hole drilling

l   Poly-compounds marking

l   ITO film removal

l   Hole drilling

l   Mono silicon, poly silicon processing





Laser Power

15W

Central Wavelength

106x nm

Fundamental Pulse Width

0.5~5ns

Repetition Rate

100~1000KHz

Pulse Energy

100/200μJ

Peak Power

Up to 30kW

Spatial Mode

M2<1.5

Power Stability

<3%  over 8H

Sync (trigger) Output

SMA

Cooling

Air Cool

Power Requirements

100-240V 50/60Hz

DimensionsL*W*H

 365mm*265mm*125mm

Weight

< 20kg

Output

Collimated Free Space



         Other Fiber Lasers



1. Thulium Doped Fiber Amplifier



Features

 wide gain bandwidth

 low noise figure

 diffraction-limited beam

 Turnkey Systems

 maintenance-free



Applications

 lidar

 silicon photonics

 Mid-infrared frequency conversion

 Analysis of the infrared spectrum

 Mid-IR common laboratory equipment



Specifications

Model number

AMP-Tm-2000

Wavelength range

1920-2020nm

Center wavelength

1950nm

Small signal gain

19dB

Output power

100mW

Noise

<8dB

Beam quality, M^2

<1.1

Operating temperature

+10 to +40 degree Celcius

Electrical input

AC 100-240V (50Hz/60Hz)

Power consumption

<20W

Dimensions

378mm x 243.5mm x 90.5mm

Weight

4.8kg

Fiber

SM2000 fiber, 1m pigtail, FC/PC or FC/APC connectors





2. Ultra-wide-bandwidth Fiber Laser



Features

 ultra-wide-bandwidth

 compact structure, small size

 diffraction-limited beam

 Turnkey Systems

 maintenance free



Applications

 gas molecule detection

 Biomedical Analysis

 Analysis of the infrared spectrum

 test and measurement devices

 optical coherence tomography



Specifications

Model number

ASE-2000

Wavelength range

1950 +- 30nm

Wavlength bandwidth (-20dB)

>150nm

Output power

10mW

Output power stability

+-1% (25C )

Beam quality, M^2

<1.1

Operating temperature

+10 to +40 C

Electrical input

AC 100-240V (50Hz/60Hz)

Dimensions

159mm x 110mm x 55mm

Weight

2.2kg

Fiber

SM2000 fiber, FC/PC or FC/APC connectors



ASE-2000 has ultra-wide bandwidth and excellent power output stability and other technical characteristics. Applications include optics testing, spectral analysis, detection of gas molecules and biomedical analysis.


3. 1900-2100nm Fiber Lasers



Features

 center wavelength can be customized

 extremely narrow linewidth

 singlemode fiber output

 Turnkey Systems

 maintenance free



Applications

 lidar

 Environmental Monitoring

 Molecular Detection

 laser frequency conversion

 mid-infrared-related research and development



Specifications

Wavelength

1950nm

1900-2100nn (can be customised)

Wavelength accuracy

1 nm (typical)

Spectral Linewidth

<100KHz

Output power range

0-20mW

Output power stability

+/- 1%

Beam quality, M^2

<1.1

Operating temperature

0 to +40 C

Electrical input

AC 100-240V (50Hz/60Hz)

Power consumption

<20W

Dimensions

419mm x 260mm x 90mm

Weight

6kg

Fiber

SM2000 fiber, FC/PC or FC/APC connectors



Narrow linewidth fiber laser NLi-19xx is a high stability and very narrow linewidth laser sources. It is widely used to produce mid-infrared light, spectral analysis, nonlinear optics, and scientific research and development and other aspects. This product can be used with AMP-Tm-2000 used together to produce higher power.



4. Multi-wavelength Fiber Lasers



Features

 wavelength can be customized

 Excellent stability

 diffraction-limited beam

 Turnkey Systems

 maintenance free



Applications

 gas molecule detection

 Biomedical Analysis

 spectroscopy analysis

 test and measurement devices

 versatile optical source



Specifications

Wavelength

1900-2100nm (up to 3 outputs)

Bandwidth

0.8nm (typical)

Output power (Average)

2mW( typical) for each output

Output power stability

+/- 2% (at 25 C)

Beam quality, M^2

<1.1

Output polarisation

Random / Linear

Operating temperature

+10 to +40 C

Electrical input

AC 100-240V (50Hz/60Hz)

Power consumption

<20W

Dimensions

419mm x 260mm x 90mm

Weight

6kg

Fiber

SM2000 fiber, 1m fiber pigtail, FC/PC or FC/APC connectors



PlusWAVE2000 is a multi-wavelength light source and high stability, compact, easy to use, maintenance free.



  Visible fiber lasers      Fiber coupled PPLN laser SHG modules

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com

For more and updated information, please go to our New Websites.
