         Products             Beam Combiner


Beam Combiners are ideal for applications where diode lasers are being used for system alignment. Designed for used at 45 degree, they transmit the long wavelength beam and align it with the 90 degree reflected diode beam.

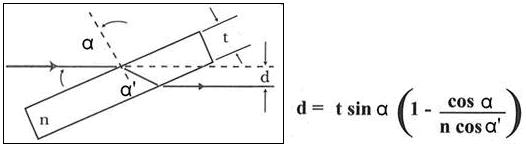

The displacement of the output beam to the incident beam is given by the following equation:



Where,

α is angle of incidence

n is index of refraction

t is thickness

d is displacement of the material



For example: BCZ-1-3, d=1mm; BCBK-1-3, d=0.8mm

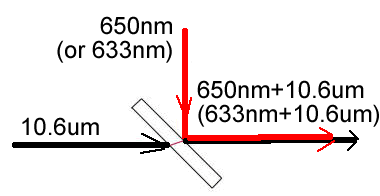

1. Beam Combiner for CO2 Laser (wavelength 10.6um)



Average transmission > 99%@10.6um, Average reflection > 85%@650nm (or 633nm)



Diameter Tolerance:+0/-0.13mm

Thickness:0.25mm

Side1:T>99%@10.6um,45AOI

Side2:T>99%@10.6um R>85%@650nm or 633nm 45AOI

Flatness:λ/20 @10.6um



Part No.

Material

Diameter (inch)

Thickness (mm)

Remark

BCZ-0.5-2-650

ZnSe

0.5

2

MaxT10.6m/MaxR650nm

BCZ-0.75-2-650

ZnSe

0.75

2

MaxT10.6m/MaxR650nm

BCZ-1.0-3-650

ZnSe

1.0

3

MaxT10.6m/MaxR650nm

BCZ-1.1-3-650

ZnSe

1.1

3

MaxT10.6m/MaxR650nm

BCZ-1.5-3-650

ZnSe

1.5

3

MaxT10.6m/MaxR650nm

BCZ-1-3-9.4-650

ZnSe

1.0

3

MaxT9.5m/MaxR650nm

BCZ-20-2-650

ZnSe

20mm

2

MaxT10.6m/MaxR650nm

BCZ-0.5-2-633

ZnSe

0.5

2

MaxT10.6m/MaxR633nm

BCZ-0.75-2-633

ZnSe

0.75

2

MaxT10.6m/MaxR633nm

BCZ-1-3-633

ZnSe

1

3

MaxT10.6m/MaxR633nm

BCZ-1.5-3-633

ZnSe

1.5

3

MaxT10.6m/MaxR633nm



Model Number

Diameter

Thickness

Reflectance/Wavelength

Wedge

BCZ-0508-AR

1.000"

0.120"

90% @ 0.633m

< 3 minutes

BCZ-0512-AR

1.000"

0.120"

90% @ 0.633m

< 3 minutes

BCZ-0708-AR

1.000"

0.120"

90% @ 0.633m

< 3 minutes

BCZ-0712-AR

1.500"

0.160"

90% @ 0.633m

< 3 minutes

BCZ-1012-AR

1.500"

0.160"

90% @ 0.633m

< 3 minutes

BCWZ-1012-AR

1.500"

0.160"

90% @ 0.633m

12 minutes 2 minutes

BCPZ-1012-AR

2.000"

0.200"

90% @ 0.633m

< 10 seconds

BCZ-1112-AR

2.000"

0.200"

90% @ 0.633m

< 3 minutes

BCZ-1512-AR

2.000"

0.200"

90% @ 0.633m

< 3 minutes

BCZ-2012-AR

2.000"

0.200"

90% @ 0.633m

< 3 minutes

BCZ-2520-AR

2.000"

0.200"

90% @ 0.633m

< 3 minutes

Note:

l         Transmission: > 99.1% average @ 10.6m with reflectance > 90% average @ 633nm (RED)

l         For 45 Angle of Incidence operation

l         Other red diode wavelengths available in most sizes above from stock. Specify 650nm, 670nm, or 680nm

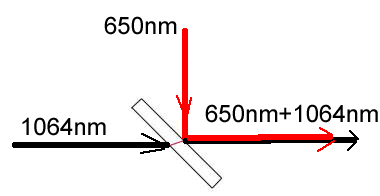

2. Beam Combiner for Nd:YAG Laser (wavelength 1064nm)



Average transmission > 99%@1064nm, Average reflection > 85%@650nm



Diameter Tolerance:+0/-0.13mm

Thickness:0.25mm

Side1:T>99%@1064nm,45AOI

Side2:T>99%@1064nm,R>85%@650nm,45AOI

Flatness: λ/2 @1064nm per 25mm dia



Part No.

Material

Diameter (inch)

Thickness (mm)

BCBK-0.5-2

BK7

0.5

2

BCBK-0.75-2

BK7

0.75

2

BCBK-0.75-3

BK7

0.75

3

BCBK-1.0-3

BK7

1.0

3

BCBK-1.0-3.4

BK7

1.0

3.4

BCBK-1.1-3

BK7

1.1

3

BCBK-1.5-3

BK7

1.5

3

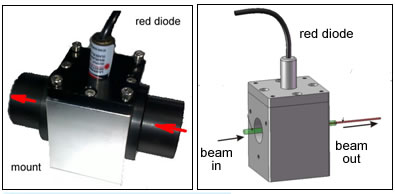

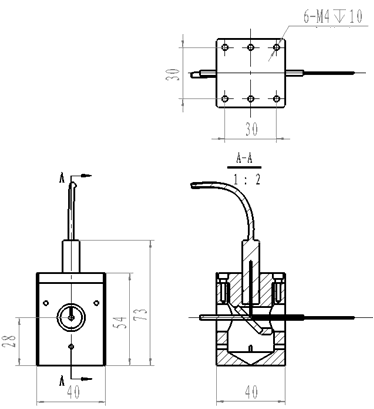

We also provide beam combiner modules. Inside there is a beam combiner. A red diode is vertically fixed and the laser beam (such as 1064nm fiber laser) horizontally goes through the module. The model of the modules is described as follows:



Part number: STH-xxxx-yy

STH red beam combiner

xxxx laser wavelength

yy    -  laser beam diameter



Our standard beam combiner STH-1064-12 is designed for the use with the fiber lasers STR-P10, -P20 and P30.

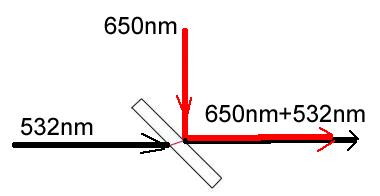

3. Beam Combiner for Green Laser (532nm)



Diameter Tolerance:+0/-0.13mm

Thickness:0.25mm

Side1:T>99%@532nm,45AOI

Side2:T>99%@532nm,R>85%@650nm,45AOI

Flatness: λ/2 @560nm per 25mm dia





Part No.

Material

Diameter (inch)

Thickness (mm)

BCBK-1-3-532T650R

BK7

1

3

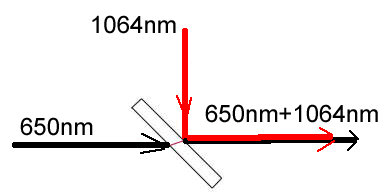

4. Reverse Beam Combiner



Reverse YAG Beam Combiner refers to an optic component used to transmit a short wavelength beam (eg. 650nm) at an angle of incidence of 45 while reflecting a long wavelength 1064nm.



Diameter Tolerance:+0/-0.13mm

Thickness:0.25mm

Side1:T>99%@650nm,45AOI

Side2:T>99%@650nm R>99%@1064nm,45AOI

Flatness: λ/2 @1064nm per 25mm dia



Part No.

Material

Diameter (inch)

Thickness (mm)

BCBK-1-3.5-1064R

BK7

1

3.5

BCBK-1-7-1064R

BK7

1

7

BCBK-2-6.35-1064R

BK7

2

6.35
