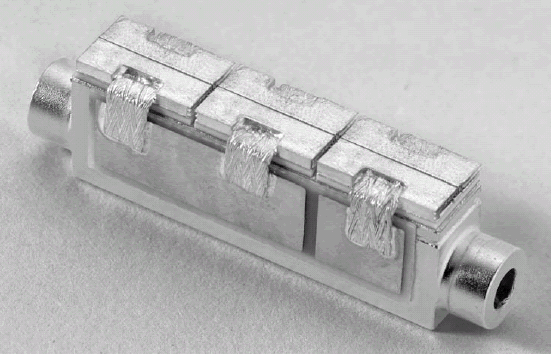

         List of Products             60W CW Laser Diode Array
Part Number: ARR01C060





  • Packaged Laser Diode Array

  • Available With Any Silver Bullet� Configuration

  • Available Wavelengths (790-1550nm)

OPTICAL CHARACTERISTICS

PARAMETER

CONDITIONS

MIN

TPY

MAX

UNITS

CW power output

30A at 25�C Heat Sink

60





W

Operating Current

60W at 25�C Heat Sink



28

32

A

Threshold Current

25�C Heat Sink



7.5

9.0

A

Wavelength Tolerance

60W at 25�C Heat Sink



� 3



nm

Spectral Width FWHM

60W at 25�C Heat Sink



1.9

2.5

nm

Wavelength Shift



0.23

0.25

0.27

nm/�C

Beam Divergence FWHM





40x10

42x12

� x �



ELECTRICAL CHARACTERISTICS

PARAMETER

CONDITIONS

MIN

TPY

MAX

UNITS

Series Resistance

25�C Heat Sink



0.024

0.036

ohms

Operating Voltage

25�C Heat Sink, 60W



5.4

6.3

V



ABSOLUTE MAXIMUM RATINGS

PARAMETER

CONDITIONS

Forward Current

35A

Reverse Current

25μA

Reverse Voltage

3V

Operating Temperature Range

-20�C or to 50�C

Storage Temperature Range

-40�C to 85�C

(1) These specifications apply for operation at 808nm. Other wavelengths available upon request.

(2) A dry nitrogen environment should be provided by the user when storing and operating at temperatures below ambient dew point.

TYPICAL APPLICATION
used in diode-pumped laser modules.

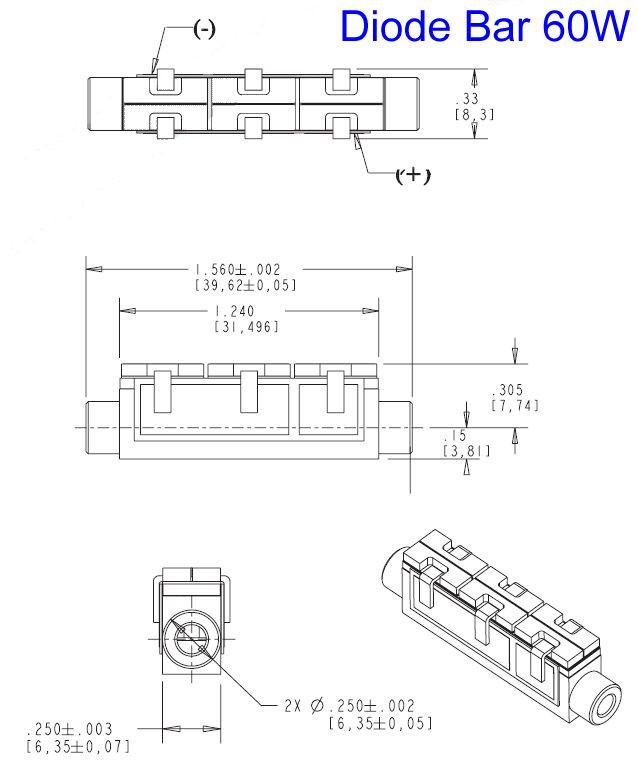

DIMENSION & MECHANICAL CHARACTERISTICS
