         List of Products             (Nd, Ce):YAG

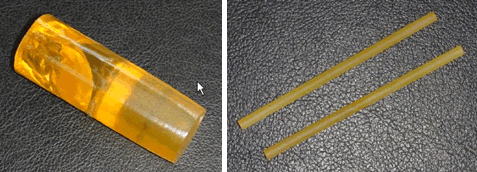

Nd:Ce:YAG is an excellent laser material used for no-water cooling  and miniature laser systems.  the (Nd,Ce): YAG laser rod we produce has the characteristics of high efficiency( laser efficiency than Nd: YAG high about 30-50%), low threshold, anti-violet radiation and high repetition frequency for lasers operation. It has achieved the international advanced level .it is the most ideal laser material for the high repetition air cooling lasers. It suitable for different modes of operation (cw, pulsed , Q-switched, mode locked, doubling of frequency ) and high-average power lasers.





Physical and Chemical Properties

Chemical formula

Nd3+:Ce3+:Y3Al5O12

Crystal Structure

Cubic

Lattice Parameters

12.01A

Melting Point

1970 ℃

Moh Hardness

8.5

Density

4.560.04g/cm3

Specific Heat (0-20)

0.59J/g.cm3

Modulus of Elasticity

310GPa

Young's Modulus

3.17104Kg/mm2

Poisson Ratio

0.3(est.)

Tensile Strength

0.13~0.26GPa

Thermal Expansion Coefficient

[100]:8.2 10-6/ ℃

[110]:7.7 10-6/ ℃

[111]:7.8 10-6/ ℃

Thermal Conductivity

14W/m/K(@25 ℃ )

Thermal Optical Coefficient (dn/dT)

7.310-6/ ℃

Thermal Shock Resistance

790W/m



Laser Properties

Laser Transition

4F3/2 --> 4I11/2

Laser Wavelength

1.064μm

Photon Energy

1.8610-19J@1.064μm

Emission Linewidth

4.5A @1.064μm

Emission Cross Section

2.7~8.810-19cm-2

Fluorescence Lifetime

230μs

Index of Refraction

1.8197@1064nm



Standard Specifications

Dopant concentration, at.%

0.1-2.5%

orientation:

<111>within 5

Flatness

< λ/10

Parallelism

≤ 10"

Perpendicularity

≤ 5 ′

Surface quality

10-5 per scratch-dig MIL-O-13830A

Optical Quality:

Interference fringes ≤ 0. 25λ /inch
Extinction ration ≥ 30dB

Size:

Diameter:38mm; Length:4080mm(Upon request of customer)

Dimensional tolerances

Diameter+0.000"/-0.05"; Length 0.5"; Chamfer: 0.07+0.005/-0.00" at 45

AR Coating Reflectivity

≤ 0.2% (@1064nm)
