DPSS UV Lasers

1.STRFH UV Laser

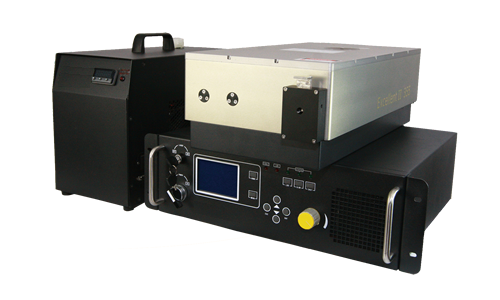

STRFH Excellent II 355 series

ExcellentⅡ355 UV series DPSS lasers include 8.0W to 10.0W models. With relatively short pulse width (<20ns@50K), superior beam quality（M²<1.2）and perfect beam spot quality (Beam Circularity>90% ). This series lasers are widely used in precisely marking on nonmetal materials, LED etching, glass marking and FPC cutting applications.

Main characteristics:

Laser wavelength 354.7nm. Repetition rates cover a wide range (single pulse to 200 kHz).
Short pulse width （<20ns@50K）, small thermal effect on operation field.
Superior beam quality （M2<1.2）, absolutely assured in all repetition rates.
ORHAC (online refreshment for harmonic coupling) technology, long term power stability.
Unique Q-switching technology, adapts a variety of control requirements of laser applications.
Whole process intelligent digital power control technology, which can control lasers through RS232 external controller.
Industrial production process control technology, provides quality stable products.
Higher powers require chiller

Applications:

Glass Scribing and marking
Milipore punching
removal of metal and non-metal coating
flexible PCB marking and scribing
material micromachining

Excellent II 355 Series	Parameter	Unit	Description
Laser wavelength	354.7	nm
Average Output Power ¹	8.0-10.0	W	@30kHz
Pulse Width ¹	<20	ns	@30kHz
Pulse Repetition Rate	10-120	kHz
Spatial Mode	TEMoo
M²	<1.2
Beam Diameter	2.5+/-0.2	mm	Measured from window
Beam Full Divergence Angle	<0.5	mrad
Beam Circularity	>0.90
Pulse-to-Pulse Stability	<3	%	RMS/@40KHz
Average Power Stability	<5	%	RMS/8hr
Beam-Pointing Drift ²	<25	μrad/℃
Polarization Ratio	>100:1
Polarization Orientation	Horizontal
Operating Temp. & RH	10 to 30 <80	℃ %
Storage Temp. & RH	-20 to 65 <90	℃ %
Electricity Requirement Power Consumption	100-240 50/60 <800	VAC Hz W	Single phase
Warranty	12	months

1. Laser power and other characteristics can be optimized in different repetition rates.

2. The temperature referred is ambient temperature.

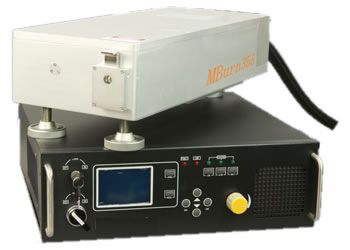

STRFH Mburn355 DPSS series

MBurn355 UV series DPSS lasers include models from 1.5W to 5W. With shorter pulse width (<6ns@40K), superior beam quality (M²<1.2) and perfect beam spot quality (Beam Circularity>95%). This series lasers are especially suitable for precisely marking on nonmetal materials, high-speed etching and cutting thin materials.

Main characteristics:

Laser wavelength 354.7nm. Repetition rates cover a wide range (single pulse to 200 kHz).
Short pulse width （<16ns@40K）, small thermal effect on operation field.
Superior beam quality （M²<1.2）, absolutely assured in all repetition rates.
ORHAC (online refreshment for harmonic coupling) technology, long term power stability.
Unique Q-switching technology, adapts a variety of control requirements of laser applications.
Whole process intelligent digital power control technology, which can control lasers through RS232 external controller.
Industrial production process control technology, provides quality stable products
Higher powers require chiller

MBurn 355 Series
Parameter	Value	Description
Laser wavelength	354.7 nm
Average Output Power ¹	1.5-5.0 W	@30kHz
Pulse Width ¹	<6.0 ns	@30kHz
Pulse Repetition Rate	10-100 kHz
Spatial Mode	TEMoo
M²	<1.2
Beam Diameter	2.0+/-0.2 mm	Measured at window
Beam Full Divergence Angle	<0.5 mrad
Beam Circularity	>0.90
Pulse-to-Pulse Stability	<3 %	RMS
Average Power Stability	<5 %	RMS/8hr
Beam-Pointing Drift ²	<30 μrad/℃
Polarization Ratio	>100:1
Polarization Orientation	Horizontal
Operating Temp. & RH	10 to 30℃ <80 %
Storage Temp. & RH	-20 to 65℃ <90%
Electricity Requirement Power Consumption	100-240VAC 50/60Hz <300W	Single phase
Warranty	12 months

1. Laser power and other characteristics can be optimized in different repetition rates.

2. The temperature referred is ambient temperature.

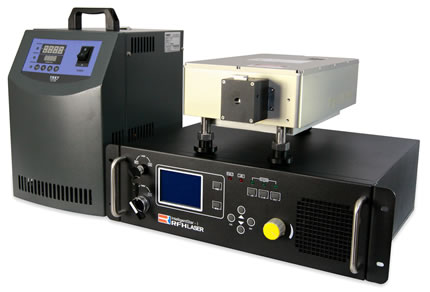

STRFH ExpertII 355 DPSS series

Expert 355 Series	Parameter	Unit	Description
Laser wavelength	354.7	nm
Average Output Power ¹	3.0 - 5.0	W	@30kHz
Pulse Width¹	<25	ns	@30kHz
Pulse Repetition Rate	10-200	kHz
Spatial Mode	TEMoo
M²	<1.2
Beam Diameter	1.8+/-0.1	mm	Measured at window
Beam Full Divergence Angle	<2.0	mrad
Beam Circularity	>0.9
Pulse-to-Pulse Stability	<3	%	RMS
Average Power Stability	<5	%	RMS/8hr
Beam-Pointing Drift ²	<30	μrad/℃
Polarization Ratio	>100:1
Polarization Orientation	Horizontal
Operating Temp. & RH	10 to 35 <80	℃ %
Storage Temp. & RH	-20 to 65 <90	℃ %
Electricity Requirement Power Consumption	100-240 50/60 <500	VAC Hz W	Single phase
Warranty	10,000 or 18	Hr months	Whichever comes first.

2. IL Series DPSS UV Lasers

MODEL	DPSS-355-4-IL	DPSS-355-7-IL	DPSS-355-10-IL
Average power @20kHz	4W	7W	10W
Beam Mode	TEM₀₀-M²<1.2	TEM₀₀-M²<1.3	TEM₀₀-M²<1.5
Peak power@ 20kHz	13.3 kW	17.5 kW	25 kW
Pulse Energy	0.2mJ	0. 35mJ	0.5mJ
Pulse width	15ns@20kHz	20ns@20kHz	20ns@20kHz
Wavelength	355nm
Beam Diameter	1.0mm
Beam Divergence	＜2.5mrad
Polarization Ratio	100:1 Horizontal
Average Power Stability	<3%
Beam-Pointing stability	＜25μrad
Pulse Repetition Rate Range	5K - 200KHz / CW
Cooling	Water-cooling
Ambient Temperature	15~300C
