          Laser Power Meter & Energy Meter

PMG-P250 Portable Laser Power Meter

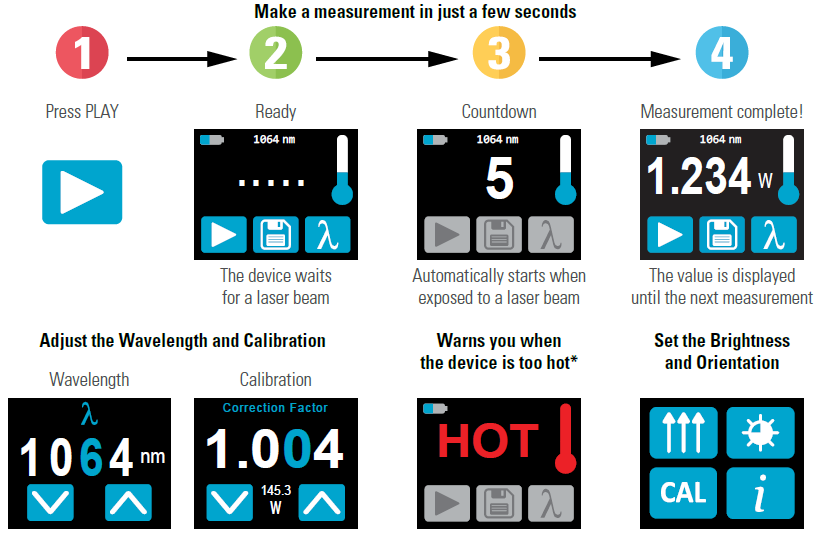

 User Interface

Key Features:

1.  POCKET-SIZE - This mid to high power laser probe is so compact it fits in your pocket!

2. EASY-TO-USE - The touch screen color LCD allows for a friendly user interface. You can make a measurement with just the touch of a button!

3. USER SETABLE - You can set the wavelength, brightness and screen orientation to adapt to your application.

4. DATA LOGGING - Save your data to the internal memory and then transfer it to your PC over the USB connection.

5. FROM LOW TO HIGH POWERS - Thanks to a low noise level and high damage threshold, the Pronto can measure powers from 0.5 W to 250 W.

6. YAG AND CO2 CALIBRATIONS - The PMG-250 comes fully calibrated: every wavelength between 248 nm and 2.5 μm (YAG), and a real calibration at 10.6 μm (CO2). The PMG-250-PLUS has an additional calibration for Single-Shot Energy measurements.

7. HANDS-FREE OPERATION - Place it on a flat surface or use one of the 2 threaded holes for safe use with optical stands.

Specifications:



PMG-250

PMG-250+





SSP Mode - Measures in 5 sec

CWP Mode - Measures Power continuously

SSE Mode - Measures in less than 0.5 sec

MAX AVERAGE POWER/ENERGY

25 0W

250 W

8 W

25 J (up to 150 J for pulses >1 ms)

EFFECTIVE APERTURE

19 mm �

19 mm �

INTERFACE

Touch Screen Color LCD Display

Touch Screen Color LCD Display

MEASUREMENT CAPABILITY

Spectral Range

0.19 - 20 μm

0.19 - 20 μm

Calibrated Spectral Range

0.248 � 2.5 μm and 10.6 μm

0.248 � 2.5 μm and 10.6 μm

Noise Equivalent Power/Energy

10 mW

10 mW

10 mW

60 mJ

Minimum Measurable Power/Energy

0.5 W

0.5 W

0.2 W

N/A

Response Time

5 sec

5 sec

1.5 sec

0.26 sec

Measurement Accuracy

� 3 %

� 3 %

� 2.5 %

� 5 %

Min Repetition Period (Max Pulse Width)

N/A

N/A

N/A

4 sec (88 ms)

Display Resolution

1 mW

1 mW

1 mW

10 mJ

DAMAGE THRESHOLDS

Maximum Average Power Density

45 kW/cm2 (at 1064 nm, 10 W, CW) / 14 kW/cm2 (at 10.6 μm, 10 W, CW)

Maximum Exposure Time

6 sec

6 sec

N/A

N/A

Maximum Device Temperature

65�C

65�C

40�C

40�C

USER INTERFACE

Measurement Controls

Wavelength Selection and User Calibration

Measurement Modes

Single Shot Power (SSP)

Single Shot Power (SSP), Continuous Power (CWP) and Single Shot Energy (SSE)

Data Acquisition and Transfer

Simple On/Off Controls, saves to on-board memory and transfers data to the PC using the USB connection

Screen Personalization

Orientation and Brightness controls

Battery Indicator

On-screen indicator with 4 levels

GENERAL SPECIFICATIONS

Display Type

Touch Screen Color LCD

Display Size

28.0 x 35.0 mm (128 x 160 pixels)

Backlight

Adjustable

Internet Upgrades

Via USB port

Data Storage

50,000 pts

Battery Type

Rechargeable Li-ion

Battery Life

17 hours or 4 200 measurements (with brightness set at 25%)

Battery Recharge

Via USB port

Operating Temperature Range

15 - 28 �C (max 80% RH)

PHYSICAL CHARACTERISTICS

Effective Aperture

19 mm �

Absorber

H9

Mounting Holes (for Post)

2 x 8-32

Dimensions

59.0W x 181.4L x 17.0D

Weight

210 g

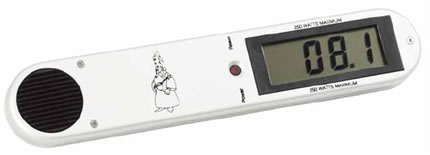

Portable Laser Power Meter

Innovative Power Meter Offers Unbeatable Convenience



The measurement of laser power is quick and simple with our power meter. The hand held power meter is a low cost, lightweight alternative to bulky, two-piece thermopile power meters and probes, or traditional �meat thermometer� probes. Ideally suited for industrial, scientific, and medical applications, use it when setting up your systems, and as a service tool to ensure maximum performance of your laser system at any time.



Designed to measure power levels from 1 - 250W, the power meter measures output power from the ultraviolet to the far infrared. This makes it the perfect tool for checking the performance of your excimer, argon, diode, YAG, and CO2 lasers, to name just a few.



Automatic data hold and auto ranging make the power meter easy to use. Simply insert the sensor into the laser beam and hold in place for a few seconds. The easy-to-read LCD screen will then display an accurate measurement of average laser power. To take another reading, simply push the reset button, and the power meter is ready to go.



Part number PMS-250

Range

1-250W

Resolution

0.1W

Wavelength range1

190nm � 11um

Individual calibrated wavelength1

10.6um

Target absorption1, 190nm � 1.1um & 9-11um

0.96-0.99

Target absorption1, 190nm � 1.1um

0.93-0.99

Accuracy

5%

Target diameter

22mm

Setting time

<4second

Max. allowable input power (single application)

300W

Max. average power density2

20kW/cm2

Max. peak energy density3

1J/cm2

Max. target temperature

180oC

Typical target temp. rise per measurement

0.4oC/W

Typical battery life

5 years (25,000 readings)

Battery type

3xCR2025 lithium

Auto shut-off time

25 seconds

Data hold time

15 seconds

Size

159x30x12mm

Weight

80g

Specifications subject to change without notice.

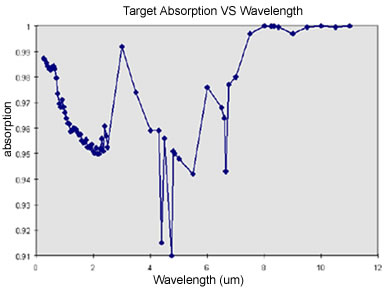

1 Typical absorption curve supplied with each meter

2 Damage to coating may cause above this value.

3 For pulsed lasers and 50usec pulse width.



Features:

l  Wavelength range: 190nm � 11um

l  Pocket sized

l  Highly accurate

l  Instant recycle

l  Easy-to-read digital display

l  Automatic data hold

l  Auto ranging

l  Automatic shut-off

l  Long life lithium battery

l  Audible signals



STPS Series Power & Energy Meter Display



There are 3 types display units available to PS series Power and Energy detectors.

         STPS-LEM2420, a touch panel and function keys make this device comfortable and easy to handle

         STPS-PyroBox, for direct connection between detector and computer

         STLM 100, a read out unit is designed to measure the output power of different lasers in combination with a thermopile detector.



1. STPS-LEM2420



The preamplifiers integrated into the device and the possibility to set sensor sensitivity, allow using a wide range of sensor heads. The large graphic display offers space for a variety of display and analysis choices. The digital display can be used for determining the energy, frequency and average power. The analogue part with its bar graph display is useful for e.g. laser adjustments. Laser stability can be monitored using the data logger and statistics window.



The STPS-LEM2420 is equipped with an USB interface and with a TCP/IP network connector. These ports allow remote control and transferring of all data to a PC. Additionally, a MMC/SD-Card slot to save the data is integrated.



Features:

         For Pyroelectric energy sensor heads and thermoelectric power sensor heads

         Digital display, analogue display, graphic data logger, statistics

         HiRes Graphic display with background illumination

         Wide dynamic range, especially for energy measuring input of correction factors e.g. for mirrors or beam splitters

         Power supply or rechargeable battery with integrated charging unit

         Adjustable trigger level

         External trigger input

         Touch panel

         USB 2.0 interface

         TCP/IP-Network-Connector

         MMC/SD-Card slot

         Software update possible

         Compatible to all heads

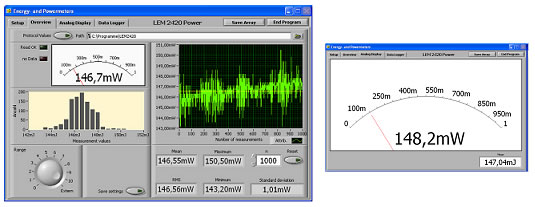

A Labview based software for displaying all via USB transferred data is also available. An overview window shows a small analog instrument, Histogram, data logger and also some statistical results. Additionally it is possible to save the showed data into a file. For adjustment work it is possible to switch to the analog instrument or the data logger.



Some basic Labview VIs for own projects are available. Because of the simple data structure and the simulated COM-port it is very easy to implement the device in other programming languages or other operating systems.

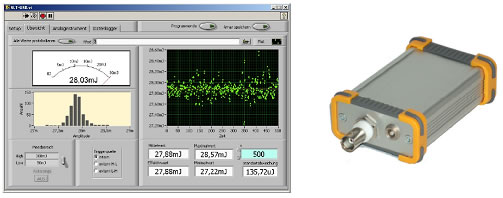

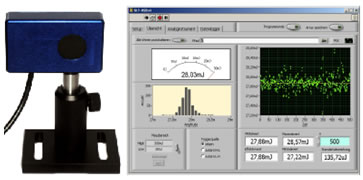

2. STPS-PyroBox



Use this interface to connect your pyroelectric detector directly to your PC. It's simple to program and drivers for the most operating systems are available.

         For all PEM detectors

         Two different ranges

         USB 2.0 connection

         Power supply from USB

         Max. rep. rate 100 pps

         Additional external trigger input

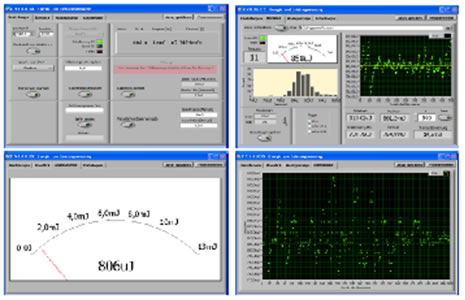

         Software for different applications available (Analogue and digital display, data logger, statistics...)

         Data transfer as ASCII code

         Dimensions 90 mm x 62 mm x 30 mm





3. STLM 100



This read out unit is designed to measure the output power of different lasers in combination with a thermopile detector. The maximum power is limited by the used power head. By using this read out unit it is possible to reduce the time constant of the whole measurement system to 1 second. Normally, the time constant of a power head is in the region of 15 to 25 seconds.



For connecting the head to the STLM100 a special adapter is required (15pin Sub-D to BNC). This adapter is used for matching sensitivity and thermal characteristic.



The STLM100 is equipped with a rechargeable battery and charging unit. It is possible to operate the STLM100 either from the power supply or rechargeable built-in batteries so that it remains versatile and can be adapted to most applications. The batteries are automatically charged when the instrument is plugged into the power supply. The batteries can also be charged when the STLM100 is turned off. The charging circuit prevents the batteries from being overcharged. The state of the batteries and the charging circuit is displayed by two LEDs.



         Large analogue display

         7 ranges (30 mW .. 30 W)

         Power supply and battery operation

         Integrated charging unit

         Time between charges: 30 hrs.

         Time constant 1 sec.

         Solid metal case

         Outer dimensions: 160x180x70 mm�



STPEM Series Energy Detectors



1. STPEM Standard Series energy detectors



The detectors are coated with a black absorption layer which possesses an almost constant absorption in the wavelength range from 185 nm to 25 μm. Particularly beneficial is the comparatively high sensitivity of the detectors which without an additional amplifier and due to the insensitivity to interferences permits laser pulse measurements in the μJ range.



The maximum pulse repetition rate depends on the internal capacitance of the detector as well as the load resistor. All detectors can be directly connected using the BNC connector to the 1 MOhm-Input of an oscilloscope. A small load resistor can be used to obtain the highest pulse repetition rate. Repetition rates of up to 100 Hz are then possible. Load resistors of 100 KOhm are part of the deliverable assortment. The corresponding sensitivity of the sensors is also specified.



Specifications:

Type

STPEM-4

STPEM-8

STPEM-11

STPEM-21

STPEM-34

Active diameter

4mm

8mm

11mm

21mm

34mm

Working range *

1μJ-20mJ

2μJ-75mJ

3μJ-150mJ

5μJ-500mJ

15μJ-1.4 J

Sensitivity in V/J

500-1000@1MW

130-250@100kW

200-500@1MW

50-200@100kW

100-400@1MW

50-150@100kW

50-150@1 MW

30-80@100 kW

20-70@1MW

10-40@100kW

Repetition rates **

80 Hz at 1 MW

120 Hz at 100 kW

40 Hz at 1 MW

100Hz at 100kW

40 Hz at 1 MW

80 Hz at 100 kW

25 Hz at 1 MW

50 Hz at 100 kW

25 Hz at 1 MW

80 Hz at 100 kW

Max pulse duration

2 ms

Spectral range

0.19 - >25 μm

Power density

8 MW/cm� (10 ns - pulse)

Energy density

0,15 J/cm�

Average power

0,15 W/cm�

Accuracy

5 %

Dimension(xL)

30 x 45 mm�

30 x 45 mm�

30 x 45 mm�

40 x 45 mm�

56 x 45 mm�

Connector

BNC

BNC

BNC

BNC

BNC

* - the lower limit: without amplifier at 1 mV input of an oscilloscope, upper limit: homogeneous illumination of the active area

- Higher repetition rates on request

** - this detector has a switch on the back side to choose between higher rep rate or higher sensitivity





2. STPEM Flat Series energy detectors



These detectors are a combination of our standard sensors with a flat housing. In these smaller housings the BNC connector is replaced by a SMA connector. The detectors are coated with a black absorption layer which possesses an almost constant absorption in the wavelength range from 185 nm to 25μm. Particularly beneficial is the comparatively high sensitivity of the detectors which without an additional amplifier and due to the insensitivity to interferences permits laser pulse measurements in the μJ range.



The maximum pulse repetition rate depends on the internal capacitance of the detector as well as the load resistor. All detectors can be directly connected using the BNC sockets to the 1MOhm-Input of an oscilloscope. A small load resistor can be used to obtain the highest pulse repetition rate. Repetition rates of up to 100 Hz are then possible.



Specifications:

Type

STPEM-10F

STPEM-20F

STPEM-30F

Active diameter

10mm

20mm

30mm

Working range *

1μJ - 20mJ

2μJ - 75mJ

3μJ - 150mJ

Sensitivity in V/J

500-1000 at 1 MW

130-250 at 100 kW

200-500 at 1 MW

50-200 at 100 kW

100-400 at 1 MW

50-150 at 100 kW

Repetition rates **

80 Hz at 1 MW

120 Hz at 100 kW

40 Hz at 1 MW

100 Hz at 100 kW

40 Hz at 1 MW

80 Hz at 100 kW

Max pulse duration

2 ms

2 ms

2 ms

Spectral range

0.19 - >25μm

0.19 - >25μm

0.19 - >25μm

Power density

8 MW/cm� (10 ns - pulse)

Energy density

0,15 J/cm�

0,15 J/cm�

0,15 J/cm�

Average power

0,15 W/cm�

0,15 W/cm�

0,15 W/cm�

Accuracy

5 %

5 %

5 %

Dimension(xL)

34 mm x 22 mm

40 mm x 22 mm

53 mm x 22 mm

Connector

SMA

SMA

SMA

* - the lower limit: without amplifier at 1 mV input of an oscilloscope, upper limit: homogeneous illumination of the active area

- Higher repetition rates on request

** - this detector has a switch on the back side to choose between higher rep rate and higher sensitivity





3. STPEM HP Series energy detectors



In opposition to our detectors of series PEM Standard this detectors are made for higher average power densities and a higher average power. As absorption coating we use our proven black coating with an very high and flat absorption over a wide wavelength range for these detectors.



With a smaller load resistor higher repetition rates are possible. We deliver the detectors with two calibration values, for 1 MOhm and 100 kOhm. The PEM 45 HP has switch to change the load resistor comfortable. For the PEM20HP an external resistor with BNC-connector is inclusive. On request a flat housing with cable output is possible.



Specifications:

Type

STPEM-20HP

STPEM-45HP

Active diameter

20mm

45 mm

Sensitivity

30 - 50 V/J at 1 MOhm

8 - 20 V/J at 100 kOhm

8 - 15 V/J at 1 MOhm

4 - 8 V/J at 100 kOhm

Max repetition rate

50 Hz at 1 MOhm

150 Hz at 100 kOhm

25 Hz at 1 MOhm

100 Hz at 100 kOhm

Max average power

3 W

5 W

Max average power density

0.5 W/cm�

0.5 W/cm�

Detection threshold

50 μJ

100 μJ

Accuracy

�3 %

�3 %

Connector

BNC

BNC

Dimension(xL)

46 mm x 47 mm

70 mm x 47 mm



4. STPEM K Series energy detectors



Main applications for this detector are pulse lasers with high power density (Excimer-, CO2-TEA-, Nd-YAG-Laser). With this device we offer a sensor that can be used in a wide range of applications due to a high damage threshold, a short time constant, relatively high sensitivity and high aperture. A special feature is a switch on the backside of the PEM45K allowing a choice between high sensitivity or a short time constant.



In opposite to other coatings these coating is very resistant. So it is possible to clean the surface with most solvents or disinfectants. This fact and the high damage threshold for Excimer lasers make these types ideal for medical applications.



Specifications:

Type

STPEM-20K

STPEM-45K

Active diameter

20mm

45 mm

Sensitivity

10 - 15 V/J at 1 MOhm

1.5 - 3.5 V/J at 1 MOhm

0.5 - 1.5 V/J at 100 kOhm

Max repetition rate

30 Hz at 1 MOhm

30 Hz at 1 MOhm

70 Hz at 100 kOhm

Max average power

3 W

5 W

Max average power density

0.5 W/cm�

0.5 W/cm�

Detection threshold

500 μJ

1 mJ

Accuracy

�3 %

�3 %

Connector

BNC

BNC

Dimension(xL)

46 mm x 46 mm

68 mm x 51 mm



Permissible power- and energy densities at selected wavelengths:

Wavelength

Excimer, 308 nm, t=20ns

Nd:YAG, THG, 355nm, t=7ns

Nd:YAG, SHG, 532nm, t=8ns

Nd:YAG, 1064 nm, t=8ns

CO2-TEA, 10.6μm,t=0,5μs

Peak power density

50 MW /cm�

65 MW /cm�

70 MW /cm�

120 MW /cm�

10 MW /cm�

Energy density

1 J/cm�

450 mJ/cm�

560 mJ/cm�

970 mJ/cm�

5 J/cm�



5. STPEM HR Series energy detectors



These sensors have a thin metallic or black absorption layer leading to a faster heat transfer to the sensor element. Repetition rates up to more than 2000 pps.



The spectral behavior is flat in the VIS and NIR but for longer wavelengths the absorption properties have to be taken into account. Main application is the use at one wavelength. The metallic coating of the two UV types is more stable in the ultraviolet region than the organic black coating.



Specifications:



STPEM-12HR

STPEM-24HR

STPEM-12HR-UV

STPEM-24HR-UV

Active diameter

12 mm

24 mm

12 mm

24 mm

Sensitivity

20-30 V/J

20-30 V/J

35-45 V/J

35- 45 V/J

Max repetition rate

750 Hz

750 Hz

2.5 kHz

1.2 kHz

Max average power

2 W

5 W

2 W

5 W

Max energy density (10ns pulse)

80 mJ/cm�

80 mJ/cm�

50 mJ/cm�

50 mJ/cm�

Max peak power density (10ns pulse)

8 MW/cm�

8 MW/cm�

5 MW/cm�

5 MW/cm�

Working range

30μJ - 100mJ

30μJ - 350mJ

30 μJ - 60 mJ

30 μJ - 250 mJ

Accuracy

�3%

�3%

�3%

�3%

Dimension(xL)

40mm x 40mm

55mm x 39mm

40 mm x 40 mm

55 mm x 39 mm





6. STPEM VUV Series energy detectors



STPEM VUV Series energy detectors are special Design with vacuum flange for 157nm and all other wavelengths where stirring gas or encapsulated beam guiding are used. The detectors are leak tested.



Specifications:



STPEM-10-VUV

STPEM-20-VUV

STPEM-24-VUV

STPEM-30K-VUV

Aperture

10 mm

20 mm

24 mm

30 mm

Sensitivity

30-50V/J at 1MΩ

15-25V/J at 1MΩ

200 V/J at 1 MΩ

1.5-2.5V/J at 1MΩ

Repetition Rate

50 Hz at 1 MΩ

150 Hz at 1 MΩ

300 Hz at 1 MΩ

50 Hz at 1 MΩ

Max average power

5 W

5 W

5 W

30 W

Accuracy

�5 %

�5 %

�5 %

�5 %

Max energy density (t=10ns)

50 mJ/cm�

50 mJ/cm�

100 mJ/cm�

300 mJ/cm�

Max. peak power

density

5 MW/cm�

5 MW/cm�

5 MW/cm�

30 MW/cm�

Detection threshold

100 μJ

200 μJ

5 μJ

1 mJ

Window

MgF2

MgF2

none

none

Connector

SMA

SMA

BNC

BNC

Vacuum connector

KF 16 ND

KF 25 ND

KF 25 ND

KF 40 ND

Dimension(�xL)

(incl. connectors)

30 x 54 mm



42 x 72 mm



55 x 65 mm



100 x 96 mm

Read out unit

STLEM 2420 or Scope



7. STPEM E Series energy detectors



The STPEM12E is a 12 mm diam. Sensor, combined with a low noise preamplifier. So it is possible to measure smallest laser energies. To use the whole dynamic range of the built in sensor element, the detector is equipped with a switch for changing the amplification. We offer this detector with two different coatings. For use at different wavelengths we recommend our reliable broadband black coating, whereas for high repetition rates and the UV range we recommend the metallic coating. Higher sensitivities and repetition rates are possible on request.



Specifications:

Sensitivity (switchable)

about 1000 V/J / about 10000 V/J

Working range

5 μJ - 15 mJ, 500 nJ - 1,5 mJ

Repetitions rate

1 kHz (black coating), 5 kHz (metal coating)

Max. average. power

500 mW

Max. energy density [t=10ns)

50 mJ/cm�

Active diameter

12 mm

Read out

Scope

Outer dimensions

25mm x 25mm x 60mm

Sensor types



PEM 12E MC � metallic coating

PEM 12 E BC � black coating





8. STPEM USB Series energy detectors



This pyroelectric detector head STPEM45KUSB respectively STPEM45USB is a combination of a robust pyroelectric sensor with a read out electronic with USB-port. It can be connected to an oscilloscope using the BNC-connector or to a PC using the USB port. In USB mode the BNC connector is an external trigger input.



The output signal is transferred to a connected PC via USB. The device is powered from the USBport. To display the measured values and user friendly software is available. The Pyrobox communicates with the computer using ASCII code and is very easy to integrate into your existing software program or system. The PEM USB is an inexpensive solution for long time tests, stability tests and OEM applications.



Specifications:



STPEM-45-USB

STPEM-45K-USB

Active diameter

45 mm

45 mm

Sensitivity with oscilloscope

8 - 15 V/J

1,5 - 3,5 V/J

Working range with USB

100μJ � 200mJ

1mJ � 1J

Repetition rate

30 Hz

30 Hz

Max. average power

5 W

5 W

Max. energy density

150 mJ/cm�

1 J/cm�

Max. pulse density

8 MW/cm�

120 MW/cm�

Accuracy

�5 %

�5 %

Connector

BNC, USB

BNC, USB

Dimension diameter

68 mm, length 53 mm

68 mm, length 53 mm



Software Application:



9. STPEM 20 USB Series energy detectors



This detector is the result of the combination of a very sensitive and low noise sensor with a high quality preamplifier for lowest laser energies. In comparison to other products in this class of sensitivity our detector features a large aperture and a windowless design.



A comfortable user interface allows a comfortable operation with a lot of display and analysis possibilities. For initial operation no driver installation is necessary. For own applications a DLL and a Labview library is available.



Specifications:

Diameter of active area

20 mm

Measurement ranges

4 ranges: 2,5 μJ, 25 μJ, 250 μJ und 2,5 mJ

Max. repetition rate

80 Hz

Max. energy density

80 mJ/cm�

Detection threshold

250 nJ

Accuracy

�2 %

Connection

USB 2.0

Dimensions

70 mm x 42 mm x 16 mm



USB-controlled Optical Power Monitor



What could be easier?



The SOPM150 is a versatile power monitor for use in the lab and for laser servicing as well as for OEM applications.



Highlights



  • Low cost and simple configuration. Basic system just includes base module, detector head, software and carrying case.

  • Easy to use

  • Powerful

  • Wide wavelength ranges: 190-950nm; 800-1550nm; 800-1650nm or 400-1650nm.

  • Bandwidth: 10 kHz



Properties



The SOPM150 is small enough to fit into your pocket and is USB powered and controlled.



Each head is automatically recognized and its individual calibration data are uploaded to the system. In addition, the user may load up to 5 separate filter curves. Thus, the dynamic range and functionality of the unit can be expanded while ensuring proper calibration.



The graphical user interface is intuitive to use and easy to read! The software includes a scope function, data logging and a large, digital display.



Specifications

  • USB powered and controlled

  • 30 Hz update rate with GUI, 1500 Hz as data logger

  • 5 gain ranges from 1�W to 10 mW full scale (<1nW resolution)





PARAMETER

CONDITIONS

MIN

TYP

MAX

UNITS

INPUT

Wavelength range



190



950

nm

Power ranges (full scale)





10.0

1

100

10

1



mW

mW

μW

μW

μW

Noise equivalent power (NEPRMS)

Min = 900 nm Max = 190 nm

5

500

50

5

500



25

2500

250

25

2500

μW

nW

nW

nW

pW

OUTPUT

Function



Linear analogue

Vout = scale x Pin



Connectors



DB9 and USB



Bandwidth





10



kHz

Sampling rate

GUI-Control



30



S/s

Direct polling



1000





Accuracy



� 10





%

Reproducibility



� 3





%

Linearity





� 0.2

� 0.4

dB

SUPPLY

Type



USB



DIMENSIONS



60 x 81 x 36 mm (B x L x H)

mm



ORDERING INFORMATION

1) Base module: SOPM150; and 2) Detector heads. Please select suitable diode materials for specific wavelength ranges.

Example: SOPM150YYY

Diode material (YYY)

UVS

190-950nm; 10x10mm



G5

800-1550nm; φ 5mm



G10

800-1550nm; φ 10mm



IGA

800-1650nm; φ 3mm



VIGA

400-1650nm; φ 3mm



Optical Power Monitor



Precision measurement of optical power from pW to mW.



Properties

The SOPM series of optical power monitors employ photodiodes to measure optical power. Precision dual transimpedance input stages provide for high common mode rejection and linearity throughout the full dynamic range of the system.



Fields of Application

These optical power monitors are used for the measurement and monitoring of optical power from the UV to near IR. The output is a voltage linearly proportional to power. The fast response time at high signal-noise-ratio makes the OPM series particularly useful in systems control feedback loops, such as in fibre alignment systems. The high sensitivity and wide dynamic range allow measurement of fibre coupled lasers and LEDs alike.



Several options of photodiode material and optical input, including free beam input, make these units useful in a wide range of applications including non-telecom metrology. A wide variety of modules are available with TTL-compatible interfaces for full parameter control. The proprietary auto-nulling function allows up to 7V of offset nulling. This is particularly useful for eliminating a DC signal component to concentrate on signal changes, such as during component burn-in and life-time testing.



The amplifiers are classified according to rise time. Within each classification there are options of enclosure style, diode material, receptacles and numbers of channels. Please consult the linked documentation for full details in each case.



Order Code

Risetime

No. of Gains

Output

P max

G max

SOPM100

100 ns

1

0 to +4.5 V

3 mW

30 mW

1500 V/W

150 V/W

SOPM200

35 ns

1

0 to +4.5 V

3 mW

30 mW

1000 V/W

100 V/W

SOPM300

25 μs

3

0 to +4.5 V

1 mW

10 mW

107 V/W

106 V/W

SOPM400

2 μs

4 or 6

0 to +4.5 V

3 mW

30 mW

106 V/W

105 V/W

SOPM500

45 μs

6

0 to +10 V

3 mW

30 mW

108 V/W

107 V/W

SOPM700

n.a.

4

digital

10 μW

100 μW

109 V/W

108 V/W

SOPM800

1 μs

3

4.5 V

4.5 mW

105 V/W



 Laser Power/Energy Meters



Display                                                                                          Detector

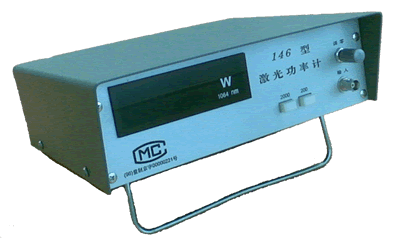

A power meter consists of a display and a detector. The power meter has been calibrated at a given wavelength before shipping.



Laser Power Meters

Model

146

147

148

M-92A

M-92B

M-92C

M-93

Range

200W
2000W

2uW-
20W

2W-200W
2mW-200mW

0.2W-
20W

2W-50W

2W-
200W

20mW
200mW

Resolution

0.1W

1nW

1064nm:1mW
633nm:1uW

0.1mW

1mW

1mW

0.01mW

Sensor diameter

20mm

18mm

18mm

25mm

10mm

Wavelength

400-1100nm

190nm-25um

400-1100nm

Calibration @ wavelength

1064nm

633nm

1064nm
633nm

10.6um

633nm

Max power density

15kW/cm2

350W/cm2



Max energy density

70J/ cm2





Display

3.5-digit LED

Un-stability

5%

Cooling

water

air

water

air

application

High-power laser

Low-power laser

Medium laser

CO2 laser

Low-power laser



Laser Energy Meters

Model

M2000B

M2000

145A

145B

145C

Range

2J-200J

2J-200J

200mJ-20J

2J-200J

20mJ-2J

Resolution

1mJ

1mJ

0.1mJ

1mJ

0.01mJ

Sensor diameter

11.3mm 50mm

50mm

20mm

20mm

20mm

Wavelength

190nm-25um

190nm-25um

400nm-3um

400nm-3um

400nm-3um

Calibration @ wavelength

10.6um

10.6um

1064nm, 532nm, 694nm

Max power density

10GW/cm2

10GW/cm2

10GW/cm2

10GW/cm2

10GW/cm2

Max energy density

70J/ cm2

70J/ cm2

70J/ cm2

70J/ cm2

70J/ cm2

Display

3.5-digit LED

Un-stability

5%

Cooling

air

Application

CO2laser energy measure

Long pulse width energy measure

Pulse repetition rate 0-30Hz measure



 laser beam analyser      Beam viewer       RF power meter

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113 Whatsapp: +65 91904616  Wechat: C518018

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com  https://www.facebook.com/sintecoptronics

For more and updated information, please go to our New Websites.
