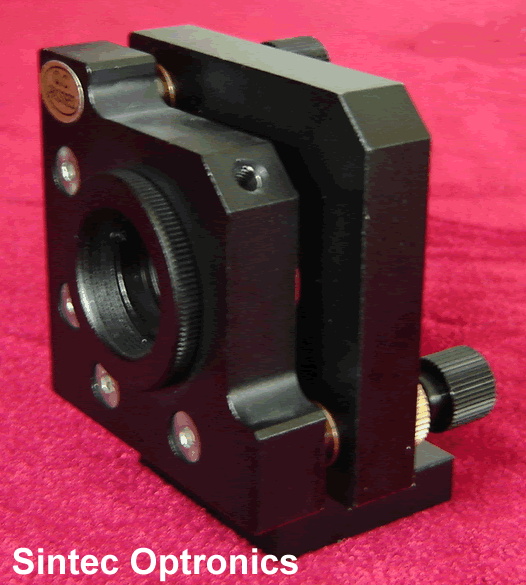

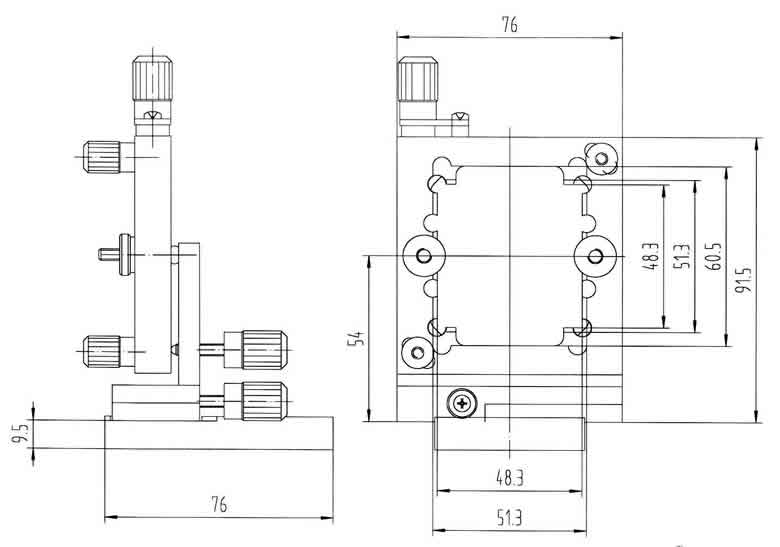

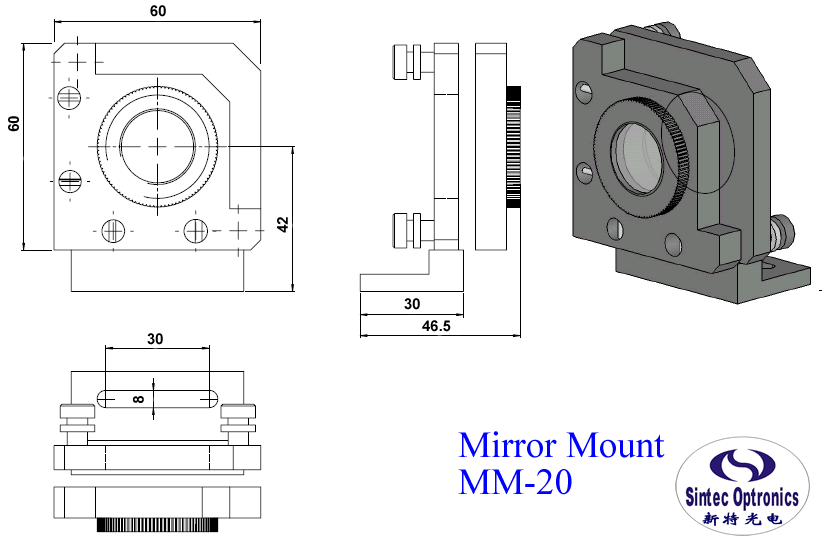

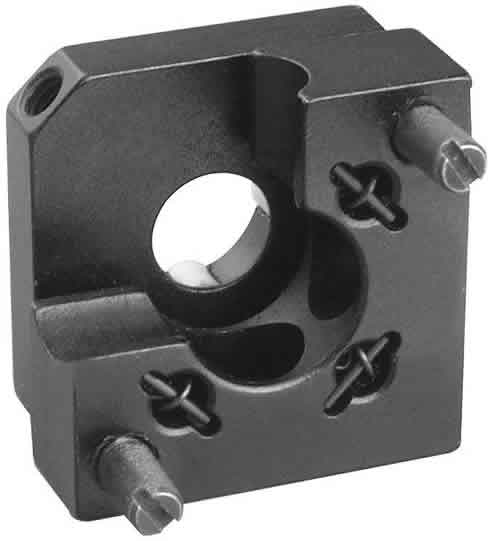

 MM20 Mirror Mount


Model: MM-20

2D adjustable

Suitable for the mirrors with diameter 20mm

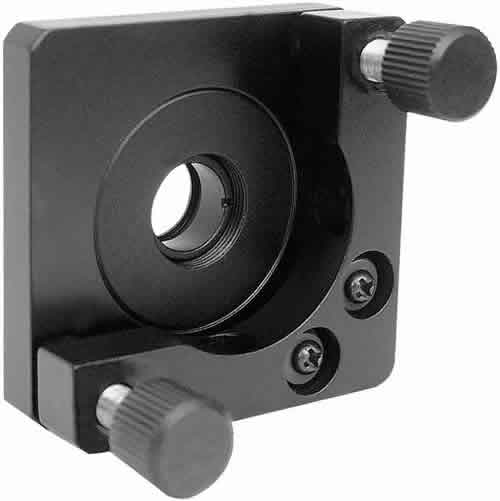

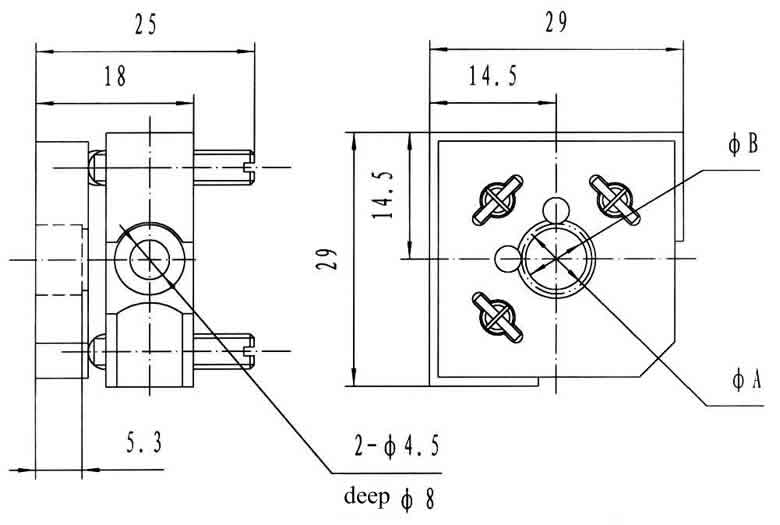

 OMMB8(10, 12.5)-1 Reflective Mirror /Splitter Mounts




OMMB8-1

OMMB10-1

OMMB12.5-1

A

8

10

12.5

B

7

9

11.5

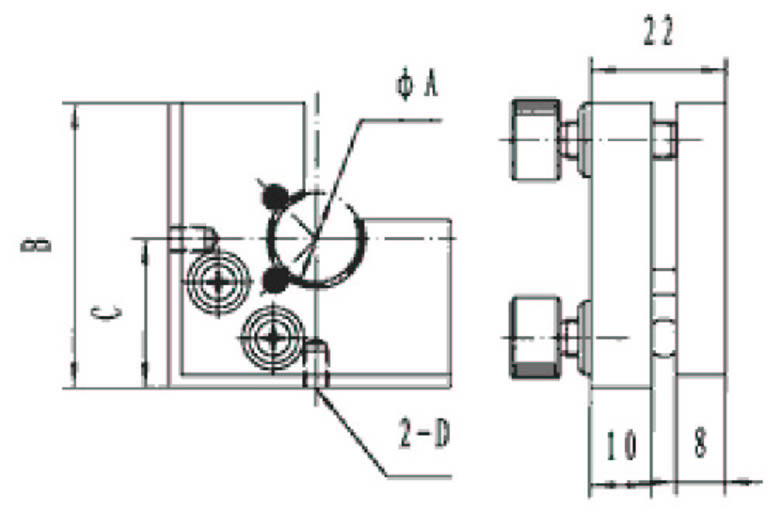

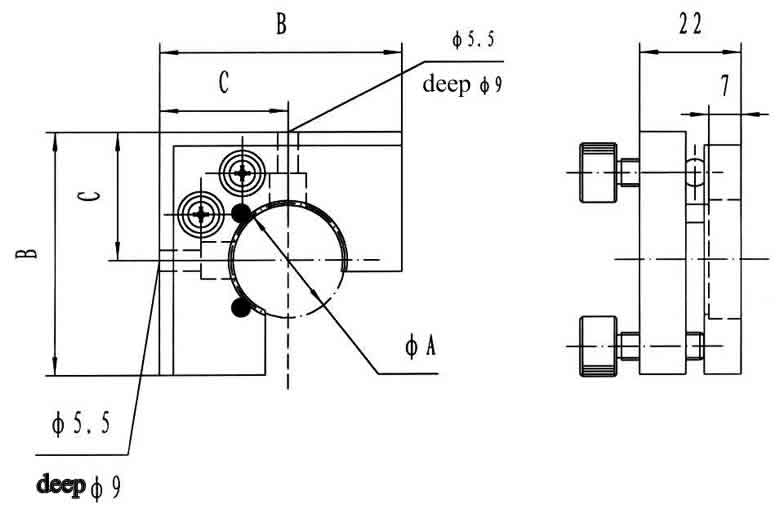

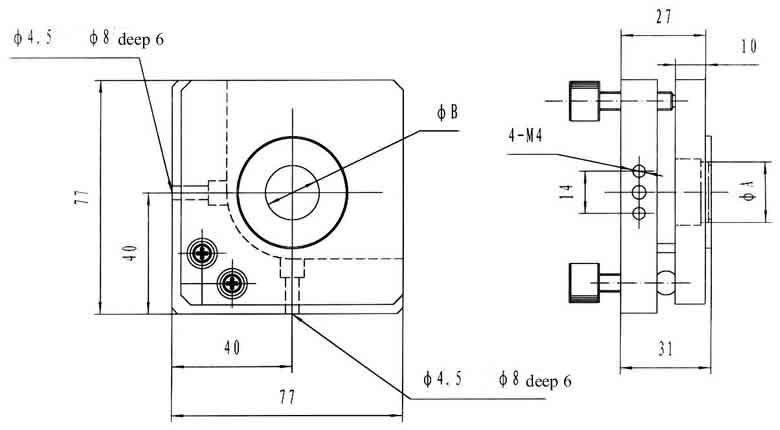

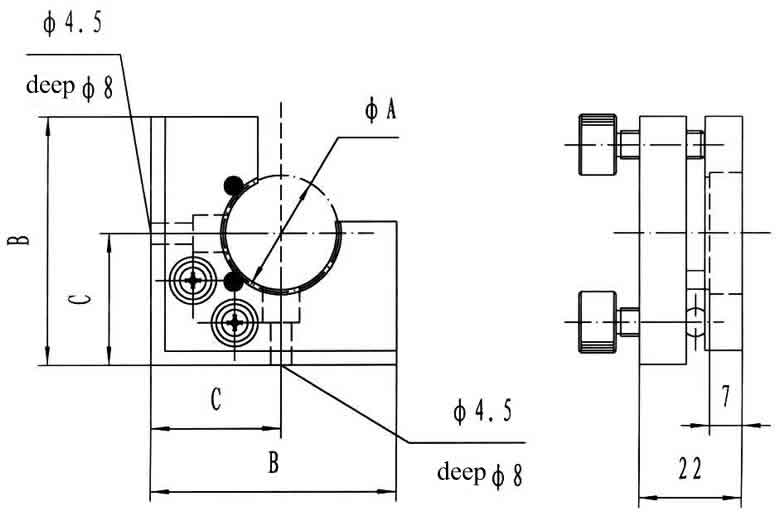

 OMMB20(25, 30, 40, 50, 50.8)-1 Reflective Mirror/Splitter Mounts




OMMB20-1

OMMB25-1

OMMB30-1

OMMB40-1

OMMB50-1

OMMB50.8-1

A

20

25

30

40

50

50.8

B

48

53

58

78

78

78

C

25.5

28

30.5

40.5

40.5

40.5

Weight

0.09kg

0.1kg

0.11kg

0.15kg

0.15kg

0.15kg



Model

A

B

C

Weight

OMMB20-1Y

20

48

25.5

0.09kg

OMMB25-1Y

25

53

28

0.1kg

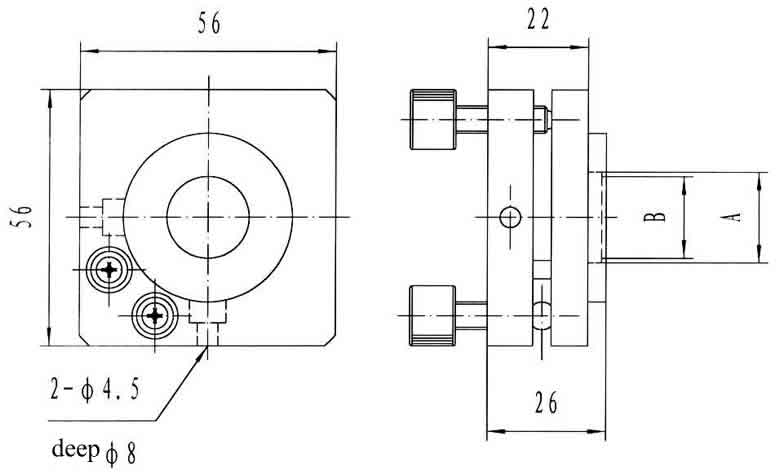

OMMB15-1T

OMMB40-1T

OMMB50-1T

OMMB50.8-1T

A

15

40

50

50.8

B

46

78

78

78

C

24

40.5

40.5

40.5

D

M4

f4.5 & bore f8

f4.5 & bore f8

f4.5 & bore f8

Weight

0.1kg

0.16kg

0.16kg

0.16kg

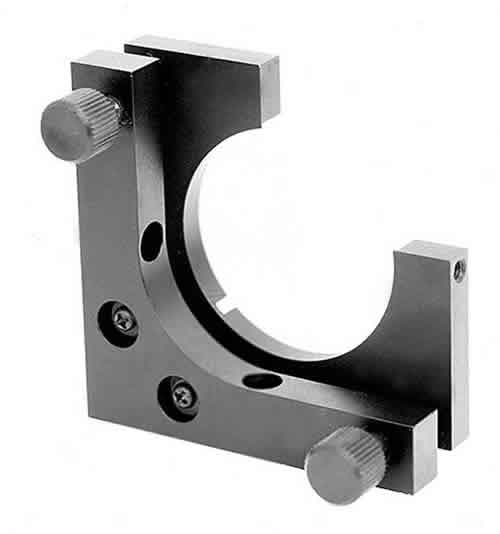

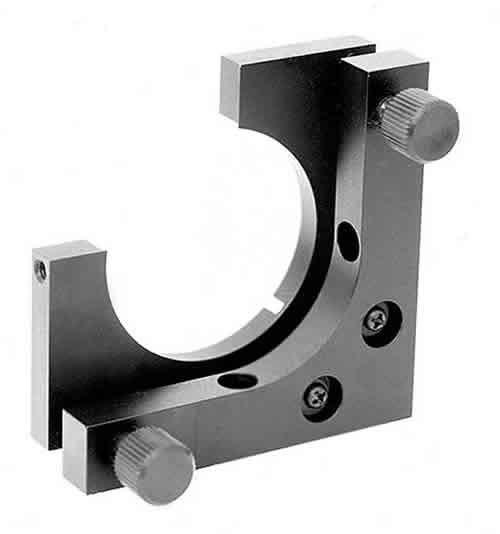

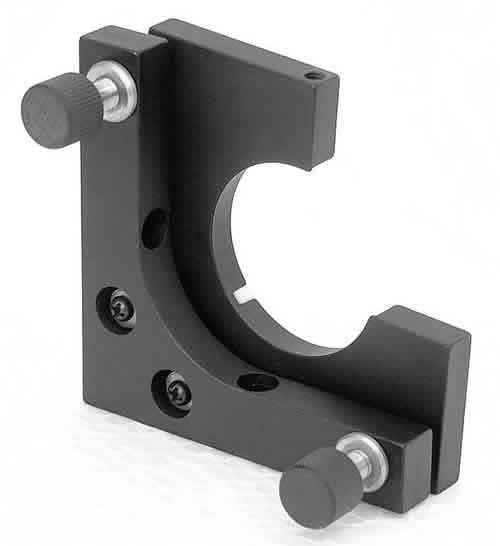

OMMB15-1A

OMMB20-1A

OMMB25-1A

OMMB30-1A

A

15

20

25

30

B

13

18

23

28

Weight

0.09kg

0.15kg

0.15kg

0.15kg

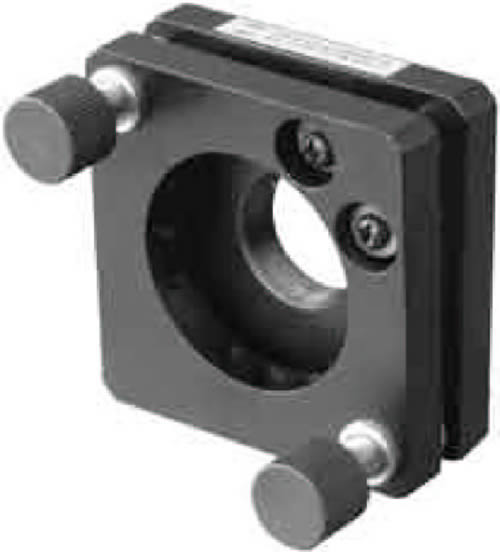

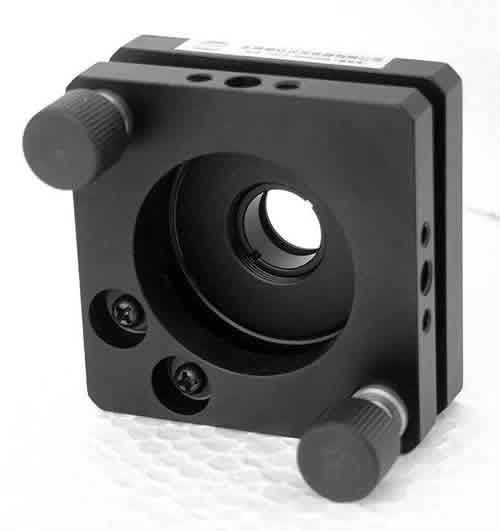

OMMB15-1AT mount12.jpg (10939 字节) mount13.jpg (21386 字节)



OMMB15-1AT

OMMB20-1AT

OMMB25-1AT

OMMB30-1AT

A

15

20

25

30

B

13

18

23

28

Weight

0.1kg

0.16kg

0.16kg

0.16kg

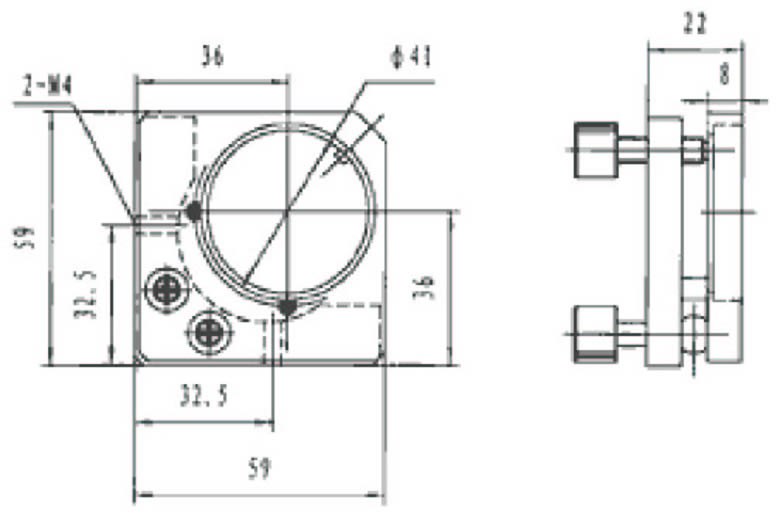

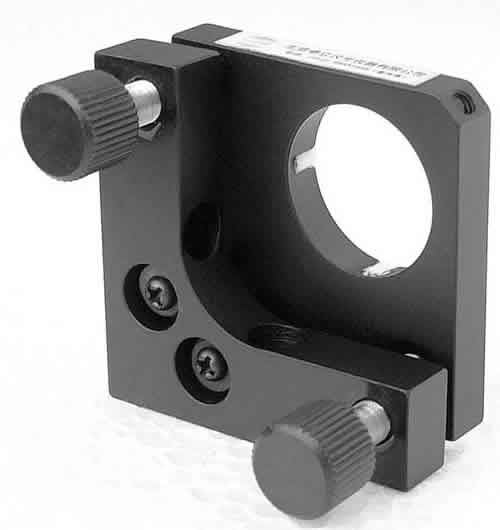

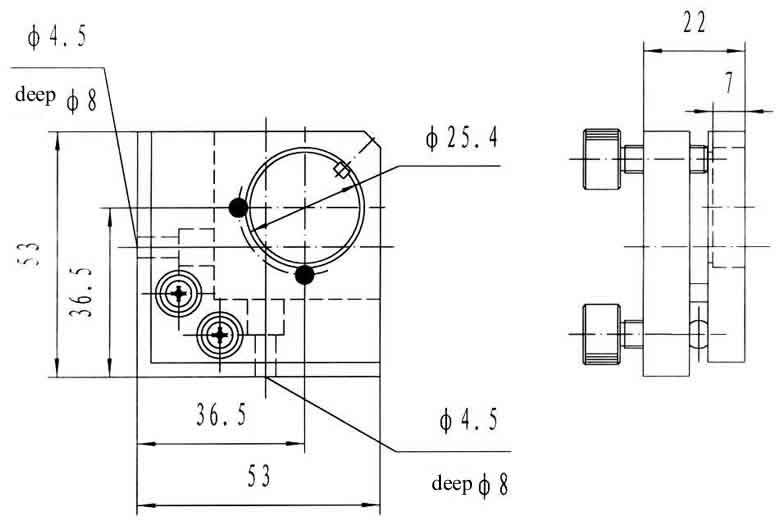

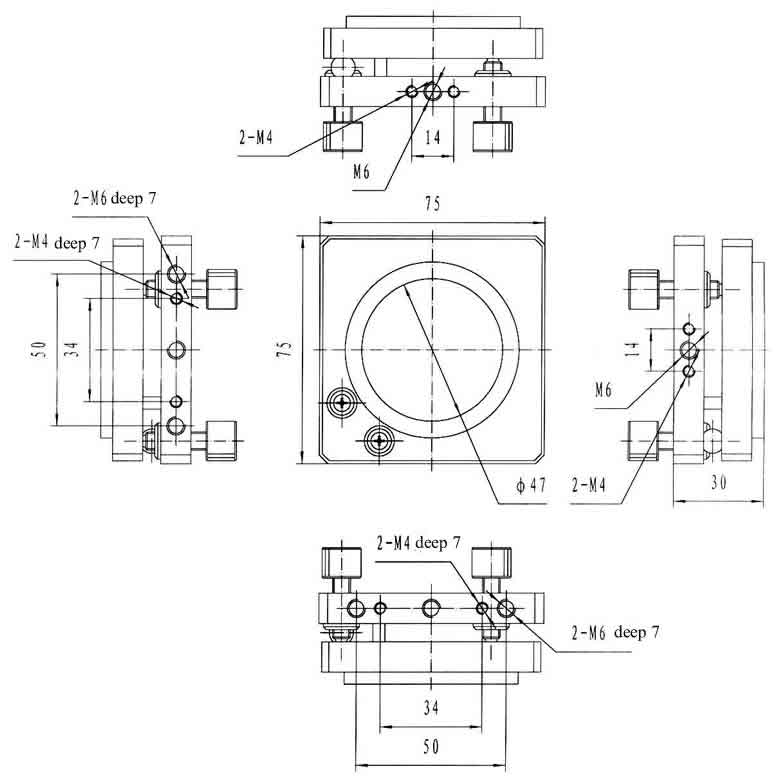

OMMB50-1AT mount11.jpg (16369 字节) mount14.jpg (36176 字节) OM M B25.4-1B  mount16.jpg (11699 字节)  mount19.jpg (23101 字节)

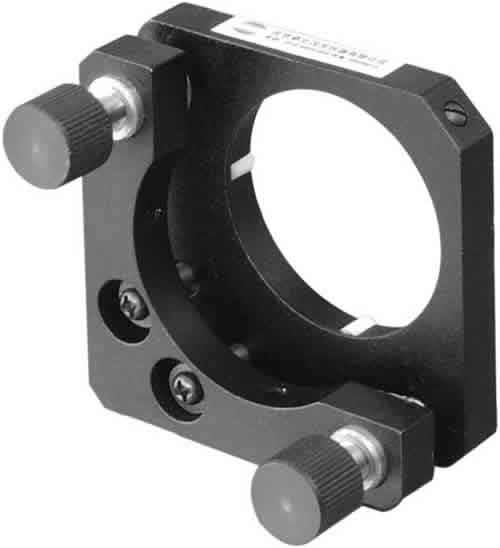

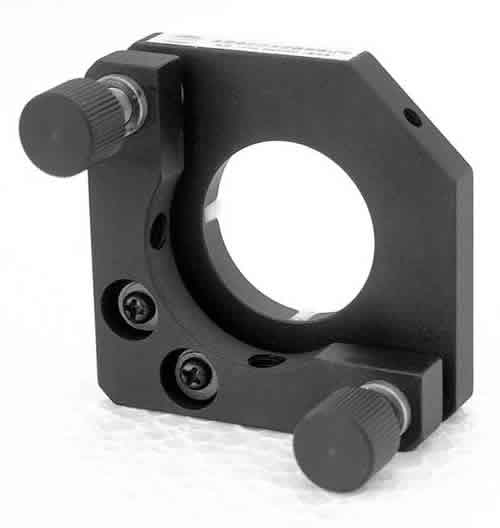

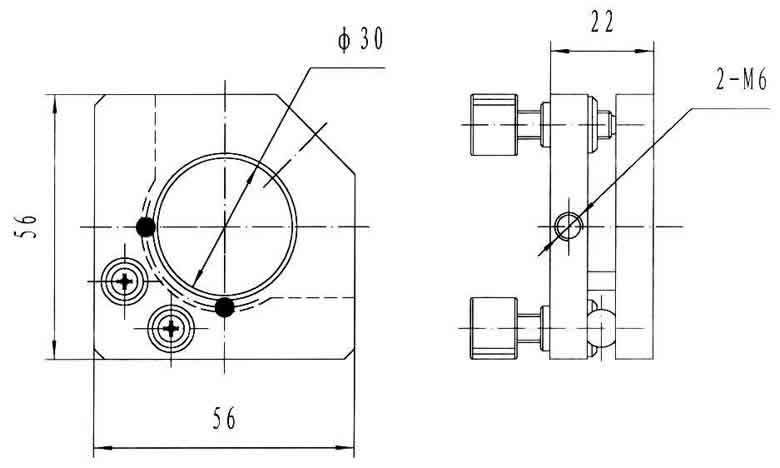

OM M B30-1BT mount18.jpg (10429 字节) mount20.jpg (19992 字节) OM M B40-1BT  mount17.jpg (11580 字节) mount15.jpg (35505 字节)

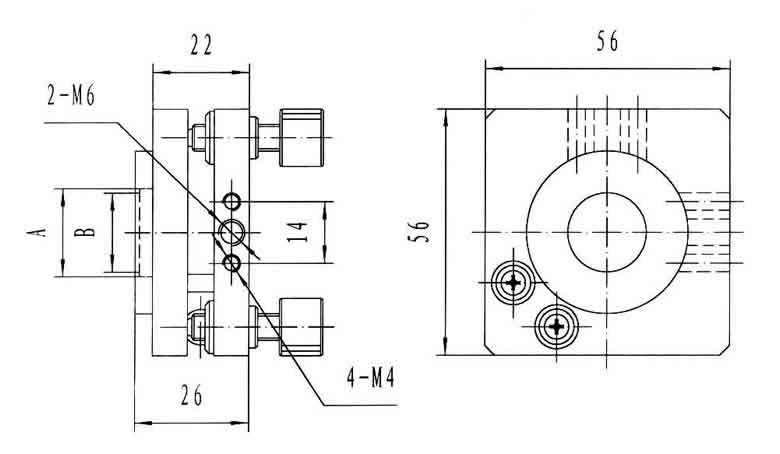

Model

A

B

Weight

OMMB20-1CT

20

18

0.12kg

OMMB25-1CT

25

23

0.18kg



 Precision Beam Steerers

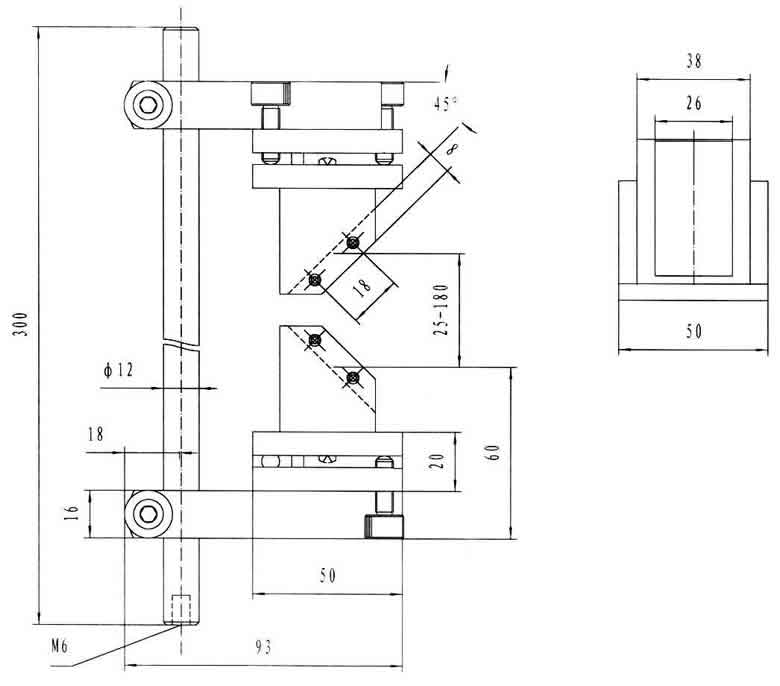

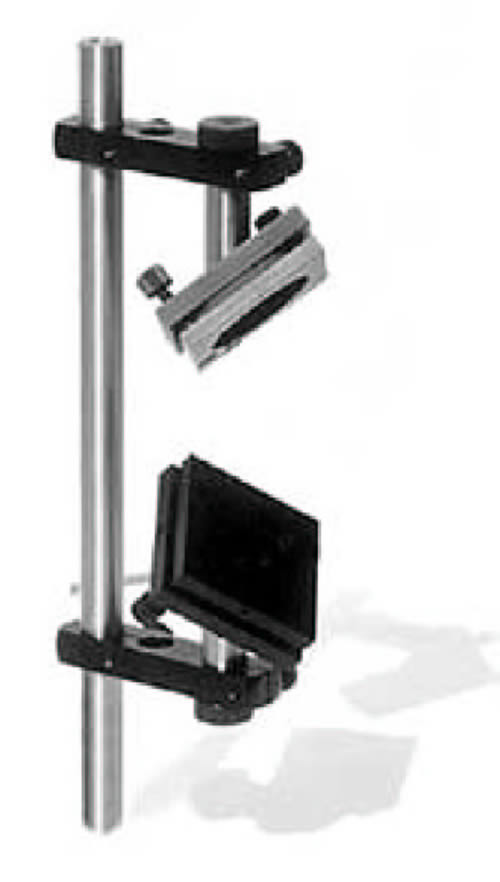

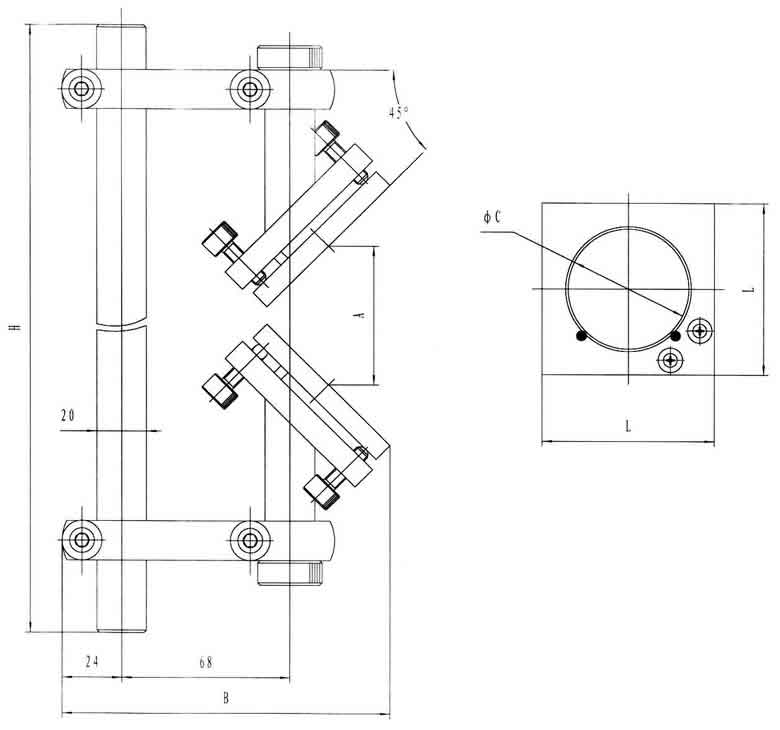

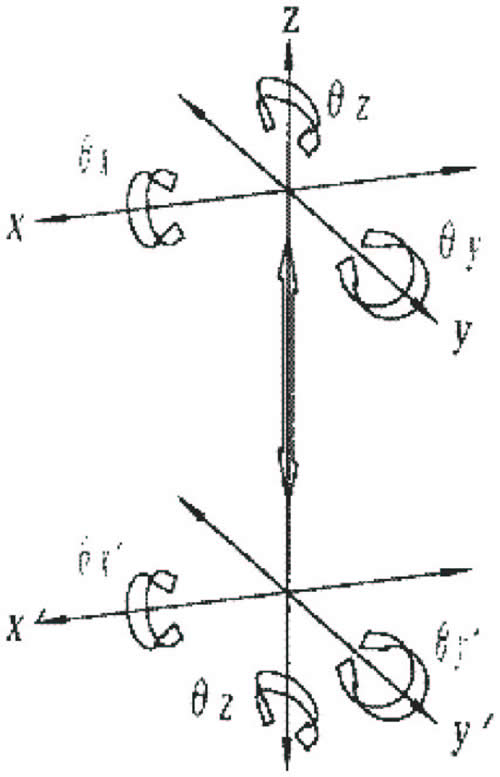

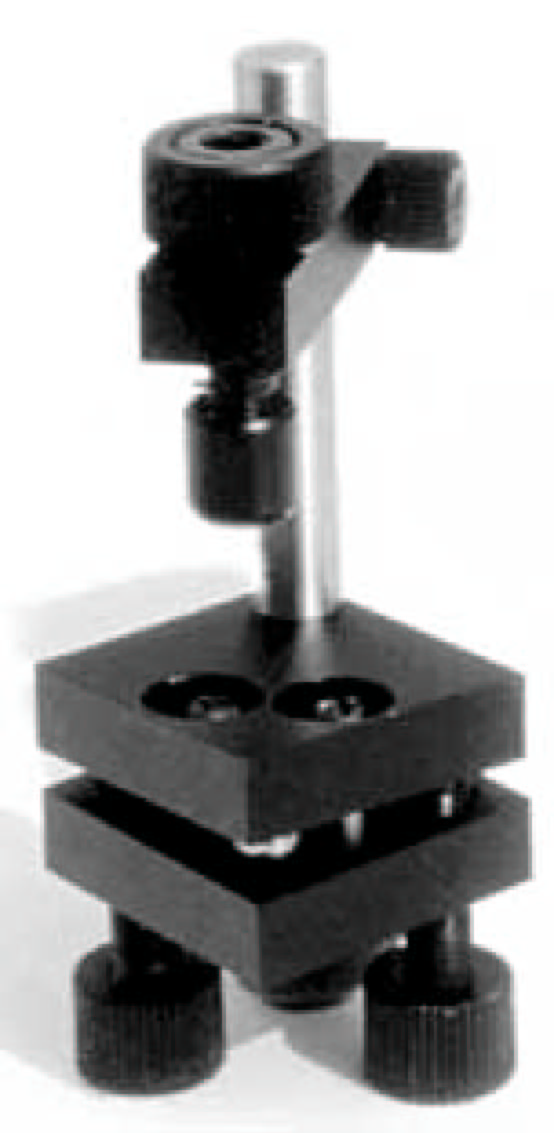

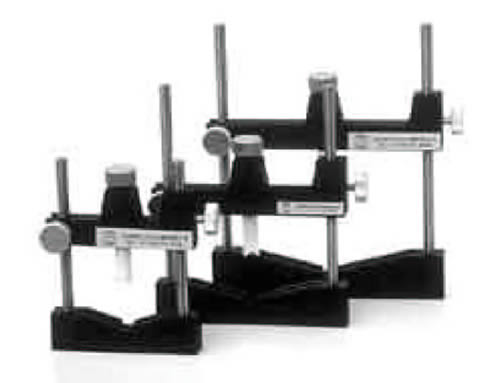

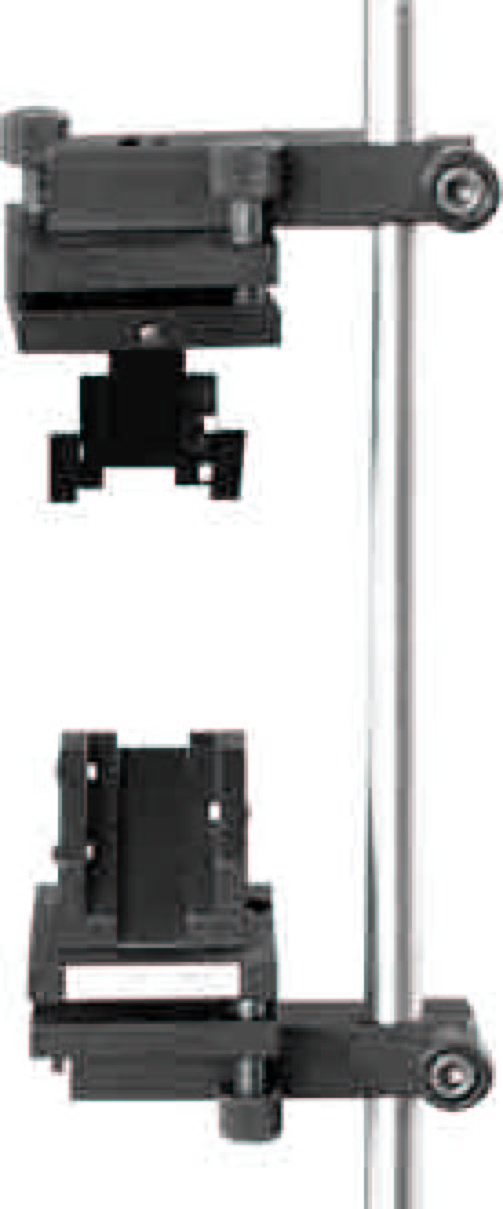

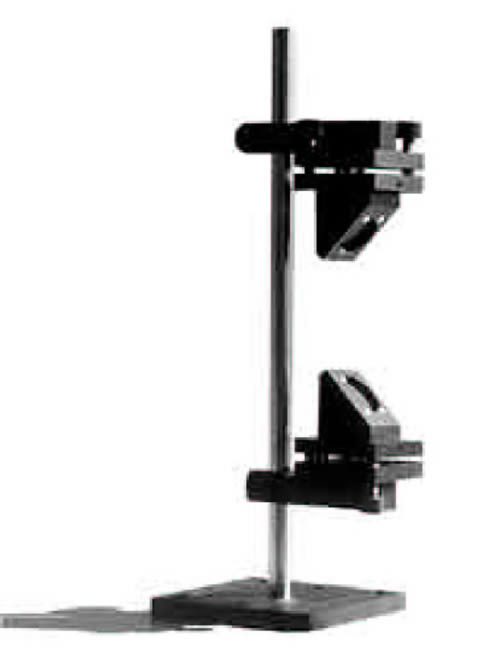

Beam steerers provide a very stable means to adjust the height and direction of a laser beam. The bean steerer consists of a pair of precision flat mirrors mounted at 45 degrees facing each other on a post or a carrier. By adjusting the spacing between the mirrors and their rotation and tilt, the beam may be directed as desired. mount24.jpg (110212 字节)

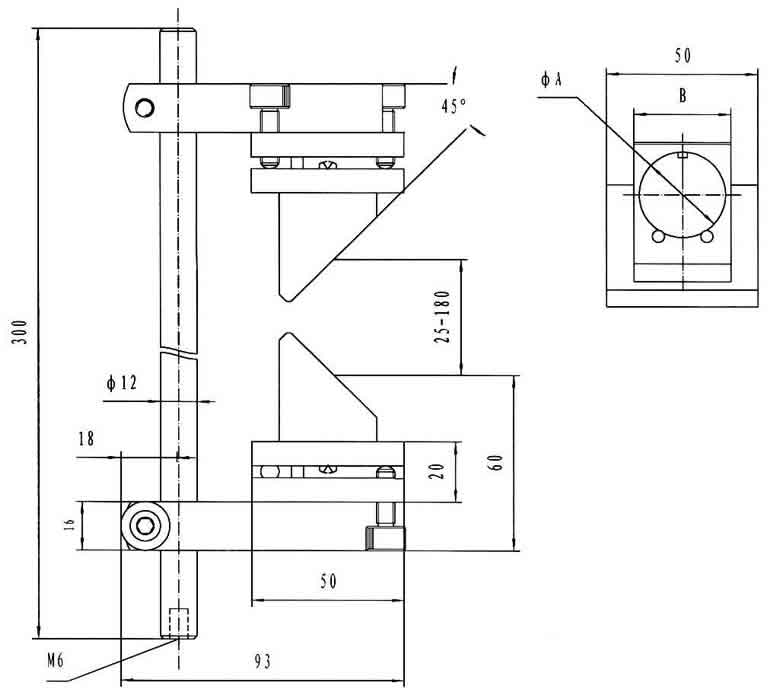

OMBS180-1 to OMBS180-4

  • Height adjustment range: 180mm

  • Weight: 0.8kg

Model

A

B

OMBS180-1

25

32

OMBS180-2

20

32

OMBS180-3

30

36

OMBS180-1 to OMBS180-3 OMBS180-4 OMBS180-4

OMBS180-5 to OMBS180-6

  • Height adjustment range: 180mm

  • Weight: 1.0kg
OMBS180-5 to OMBS180-6 OMBS180-5 to OMBS180-6

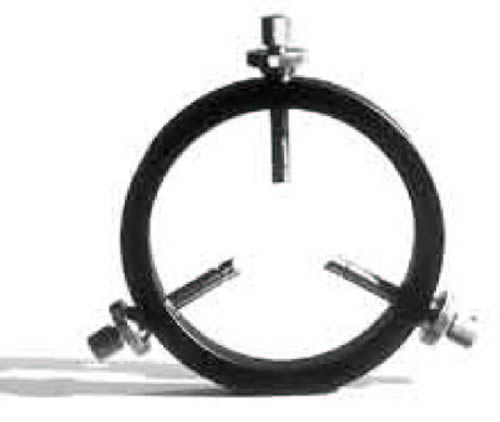

 Adjustable Lens Holders

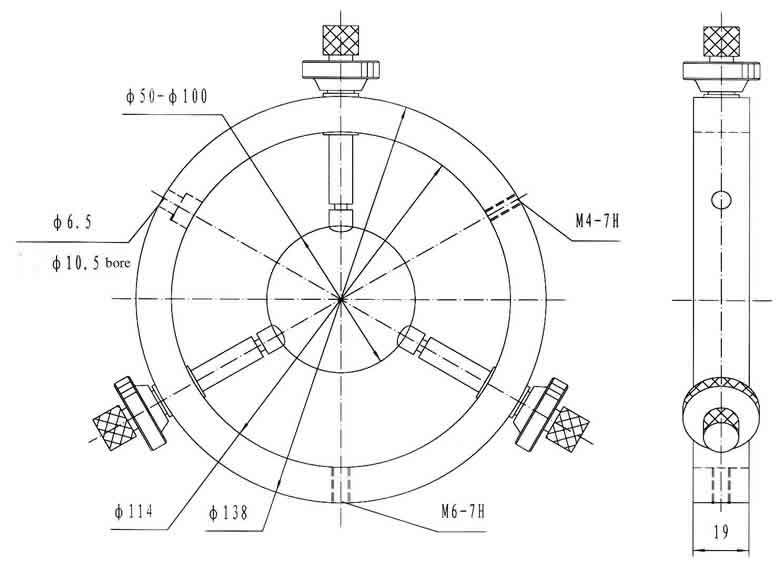

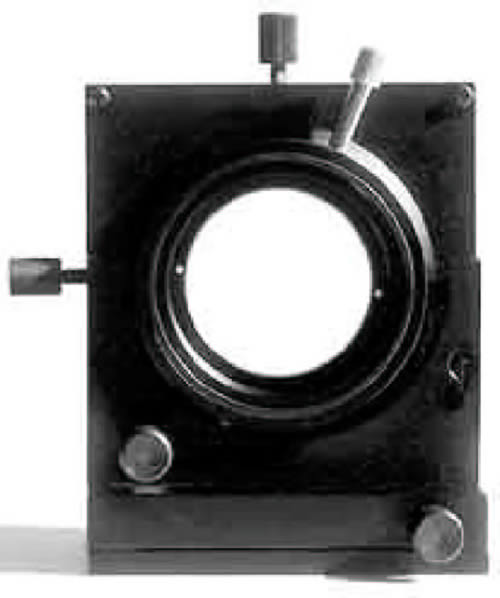

OMLH-1 Adjustable Lens Holders

  • Allowed lens diameter:  50mm - 00mm

  • Weight: 0.4kg

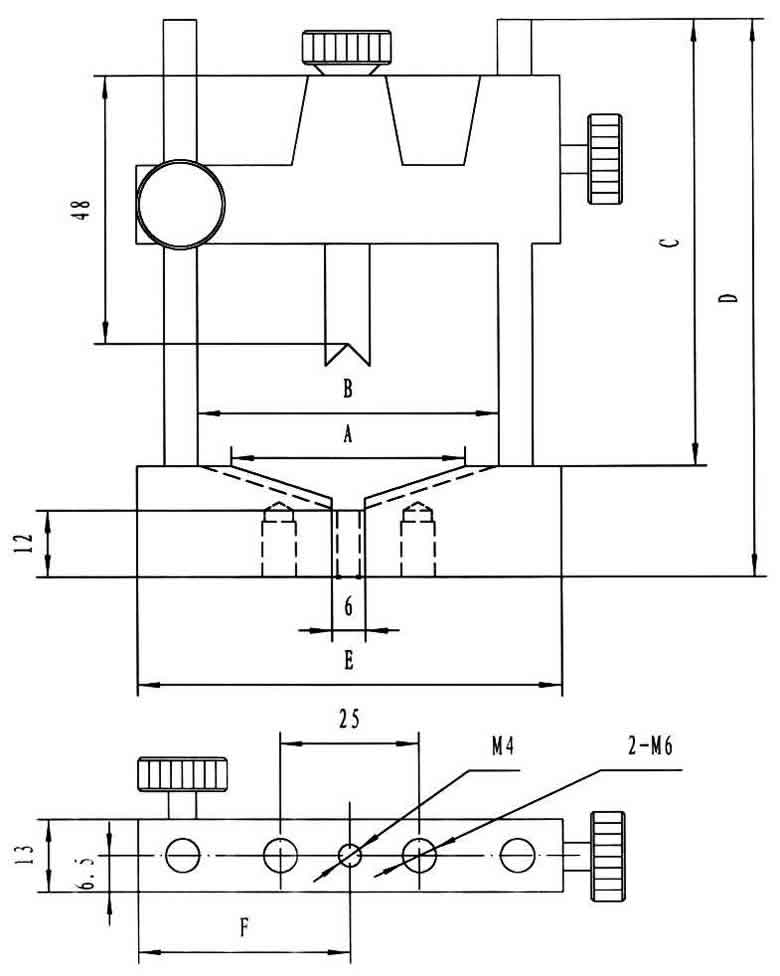

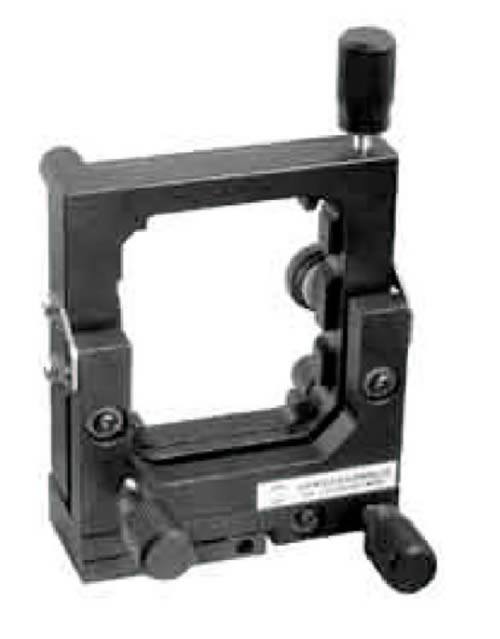

OMLH-2 (-3, -4) Adjustable Lens Holders

Adjustable lens holders provide quick and easy placement and removal of lenses without changing holder position. The lens is retained between two crossed V-groves for vertical and horizontal centering.


Model

A

B

C

D

E

F

Lens diameter

Weight

OMLH-2

90

105

126

151

127

63.5

10 - 100

0.25kg

OMLH-3

65

80

106

128

102

51

5 - 75

0.20kg

OMLH-4

42

54

80

100

76

38

5 - 50

0.15kg


OMLH-1 OMLH-1 OMLH-2 to OMLH-4 OMLH-2 to OMLH-4
Cylindrical Lens Holder

OMLH-5:

  • Lens dimension: 6.4x25mm or12.7x25mm

  • Weight: 0.05kg
OMLH-6:

  • Lens dimension: 19x51mm or 25x51mm

  • Weight: 0.15kg
      OMLH-5 OMLH-5           OMLH-6 OMLH-6

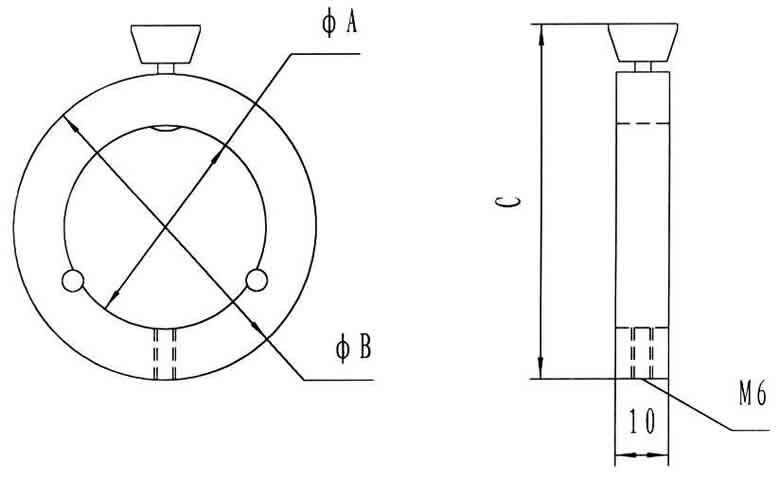

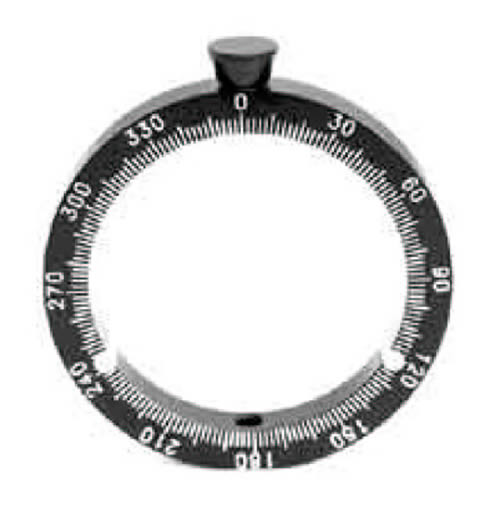

OMLH-7 and OMLH-8 Polarizer Holders

These holders are used to mount and rotate polarizers or cylindrical lenses. They can be rotated from 0 to 360 degrees.


Model

A

B

C

Weight

OMLH-7

38

57

66

0.05kg

OMLH-8

56

75

86

0.07kg


OMLH-9 Gimbal Cylindrical Lens Holders

Used to hold cylindrical lenses.

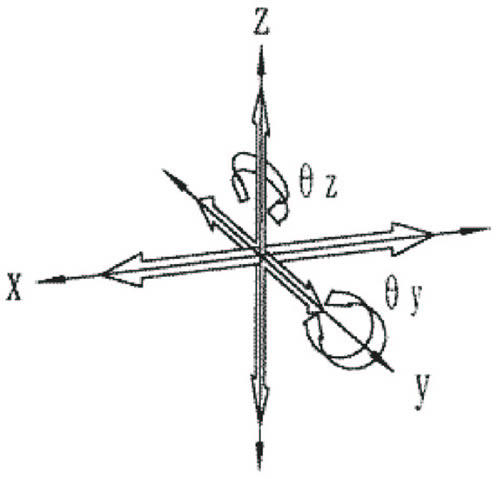

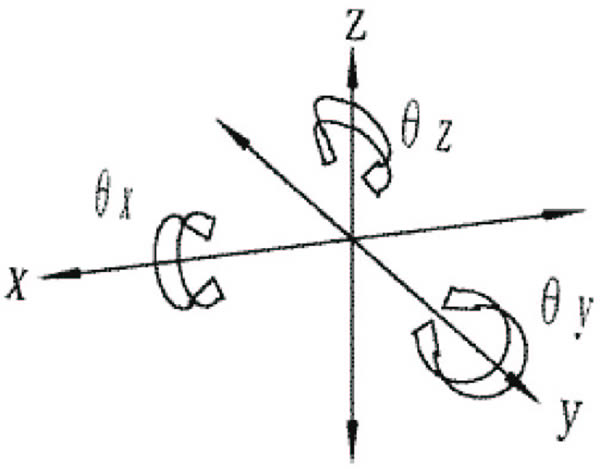

  • 2-dimension tilt range: qy and qz: �4o

  • Rotation range: qx: �5o

  • Lens length: 50 - 50.8mm

  • Lens width: 60.5mm

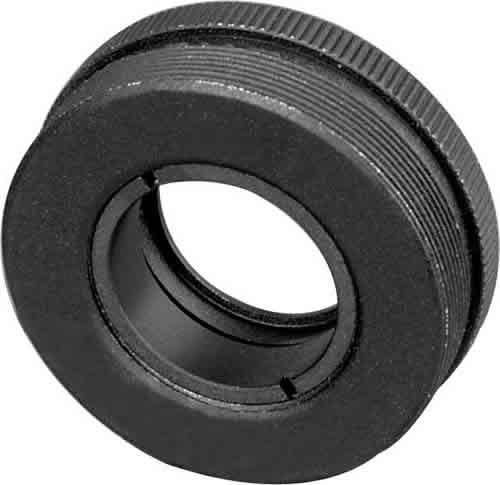

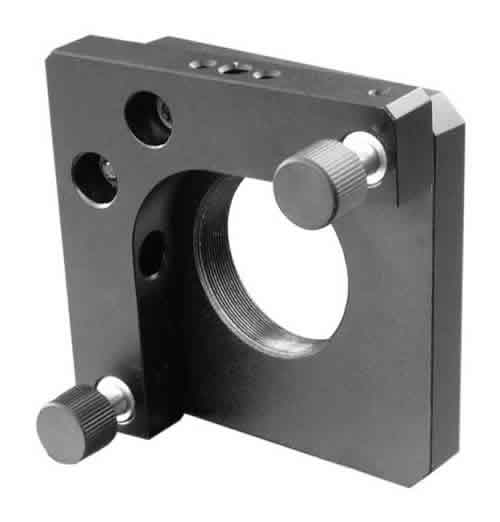

OMMBWJ-1AT Objective Lens Mounts

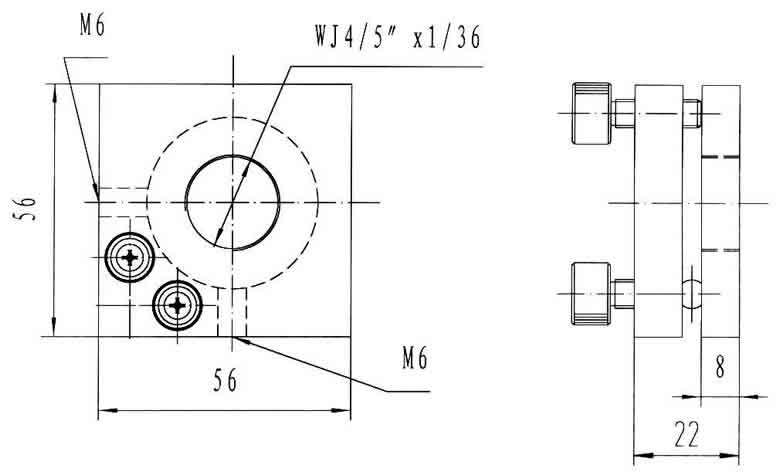

There is a central screw WJ4/5� - 1/36� for fixing objective lens. There are two precision screws M6x0.25mm for adjustment.

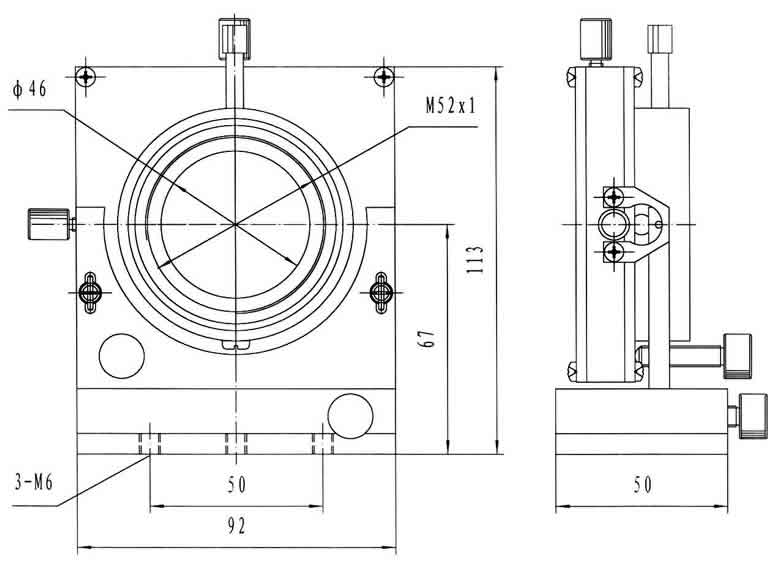

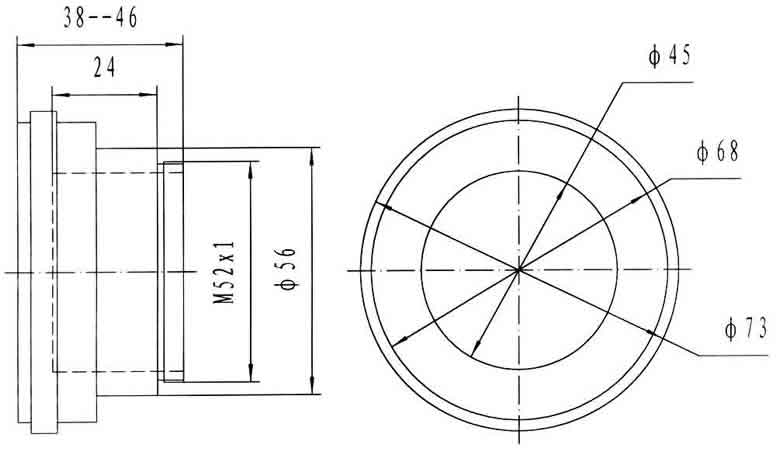

OMOM50-1 5-axis Gimbal Mirror Mount

The mount provides 3 travels along X, Y and Z directions and 2 rotations along qy and qz directions.

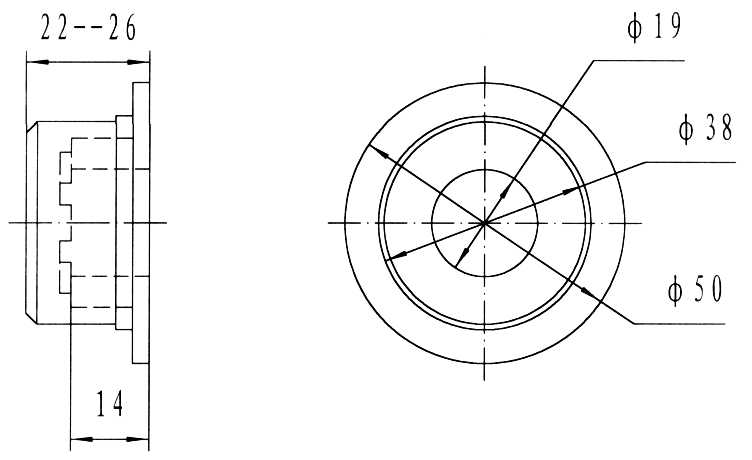

  • Installation screw: M52x1

  • Tx: 6mm

  • Ty: �2.5mm

  • Tz: �2.5mm

  • qy:   �2�

  • qz:   � 4 �

  • Weight: 0.6kg


Prism/Beamsplitter Tables

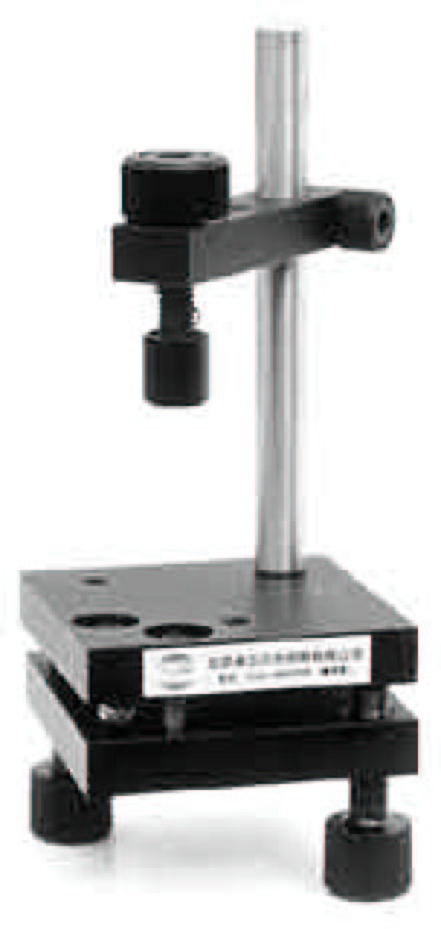

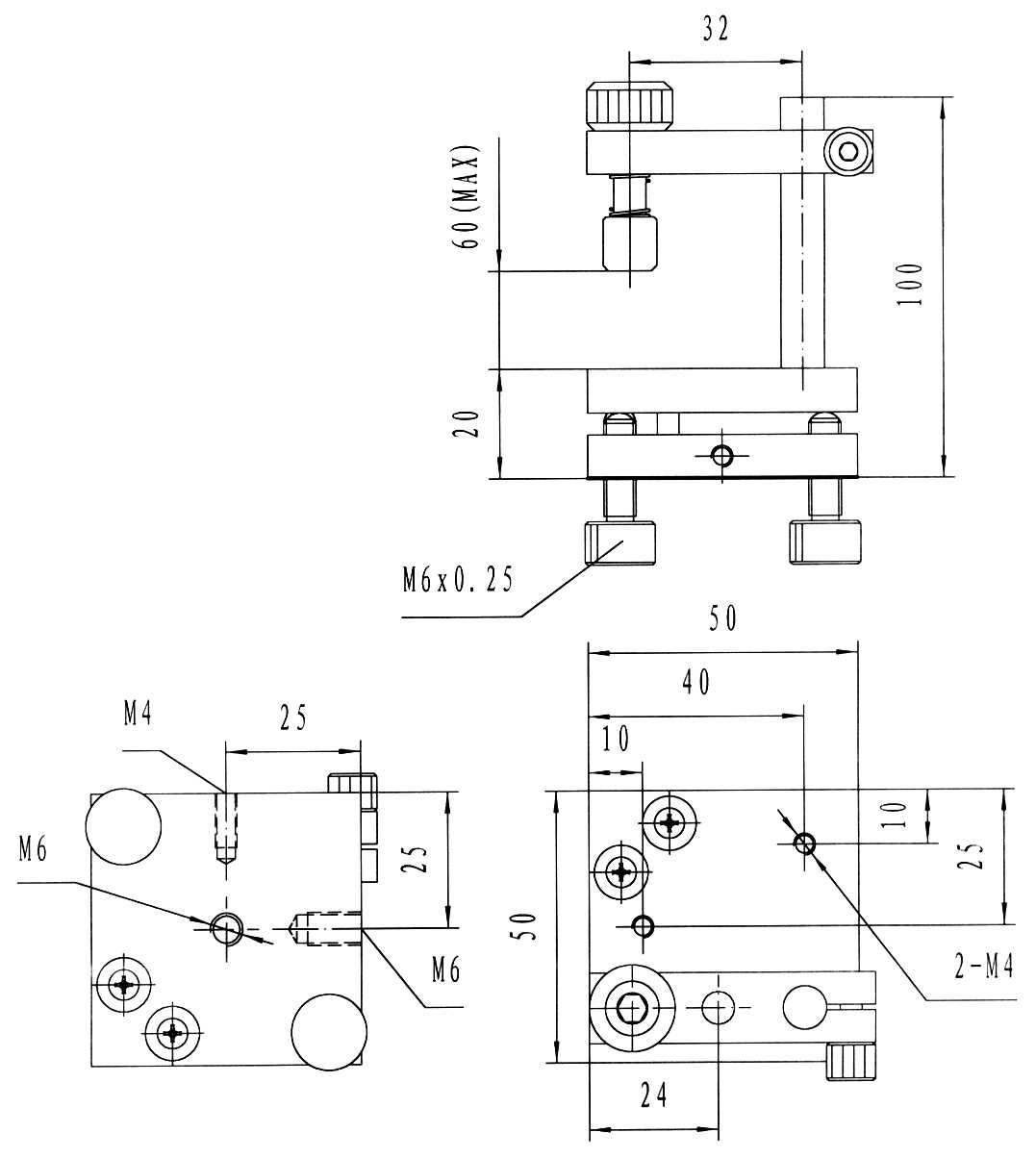

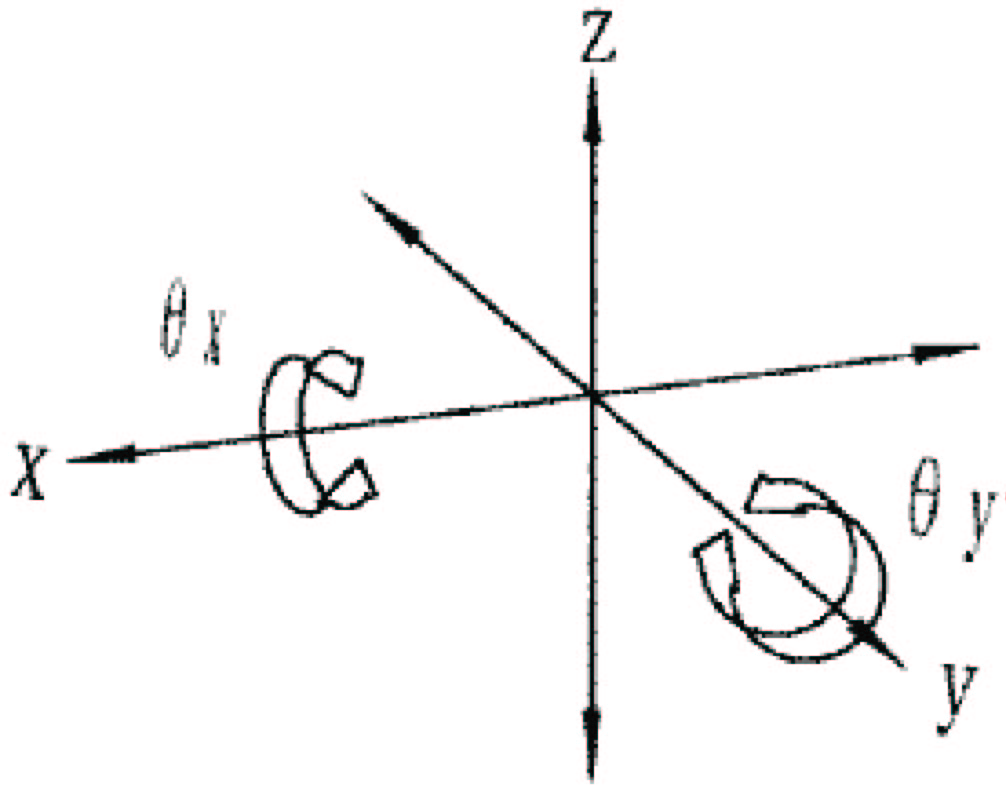

OMPH-1

  • Sample height:  60mm (max)

  • Table size:       50x50mm

  • Adjustment along qx and qy: � 5 �

  • Adjusting rod: M6x0.25

  • Weight:           0.2kg





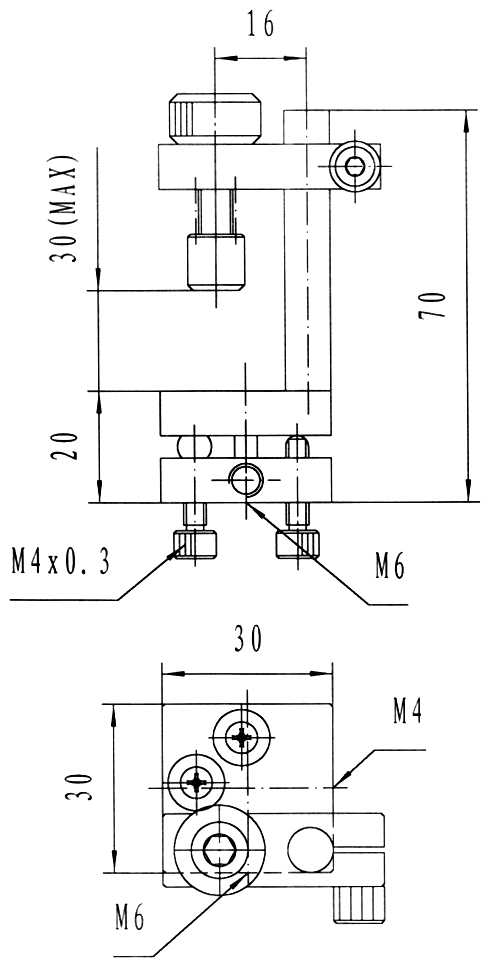

OMPH-2

  • Sample height: 30mm (max)

  • Table size:     30x30mm

  • Adjustment:   � 5 �

  • Adjusting rod: M4x0.3

  • Weight:           0.18kg




Beam expander mount     Download Data Sheets (PDF)
