1.ST FOTON Series Diode Pumped UV Laser

ST FOTON 355 series

In order to meet the requirements of precise processing in industrial, we developed a 355nm end-pumped Q-switched laser. The adoption of water cooled system allows laser source to have stable performance, smaller size, compact structure and low power consumption. The output laser beam is the fundamental mode, the beam quality is good, and the peak power is high, which can meet most industrial precision processing requirements. The product is provided with either all-in-one pack or individual pack for your needs.

All-in-one pack Individual pack

Features:

Thanks to the integrated design, the product has compact structure, small size, light weight, low power consumption, stable operation over time and good beam quality. The laser's driver has a simple design and a user-friendly operation interface. It is extremely convenient for user to install and debug it, besides user also can adjust and control the laser power and repetition frequency output at any time in order to meet various need.

Applications:

Fine cutting, scribing, marking and micro-machining of various materials;
laser rapid prototyping;
LED scribing;
FPC board cutting;
Micro-holes drilling (�10μm);
Flexible PCB board marking and dicing;
Plating removing;
Blind hole processing.

Specification:

Model	Foton-355-3	Foton-355-5	Foton-355-10	Foton-355-15
Laser	DPSS Laser	DPSS Laser	DPSS Laser	DPSS Laser
Wavelength	355nm	355nm	355nm	355nm
Average Power	>3W@30kHz	>5W@40kHz	>10W@40kHz	>15W@60kHz
Beam Spot	<0.7mm	<0.7mm	<1.1mm	<0.7mm
Beam Divergence	<2mrad	<2mrad	<2mrad	<2mrad
Pulse Width	<15ns@30kHz	<15ns@40kHz	<15ns@50kHz	<15ns@60kHz
Beam Mode	TEM00	TEM00	TEM00	TEM00
Beam Quality (M2)	≤1.2	≤1.2	≤1.2	≤1.2
Frequency Range	20kHz~200kHz	30kHz~200kHz	40kHz~200kHz	60kHz~200kHz
Stability	≤2%	≤2%	≤2%	≤2%
Pointing RMS	<10urad	<10urad	<10urad	<10urad
Polarization	Linear (Vertical)	Linear (Vertical)	Linear (Vertical)	Linear (Vertical)
Ratio	>100:1	>100:1	>100:1	>100:1
Cooling Method	Water Cooled	Water Cooled	Water Cooled	Water Cooled
Power Supply	220VAC@50Hz	220VAC@50Hz	220VAC@50Hz	220VAC@50Hz
Working Temperature	15~30�C	15~30�C	15~30�C	15~30�C
Power Consumption	500W	500W	500W	700W
Dimension	400x240x138mm	400x240x138mm	400x240x138mm	400x240x138mm
Weight	17kg	17kg	17kg	17.5kg

Specification subject to change without notice

Typical Laser Beam:

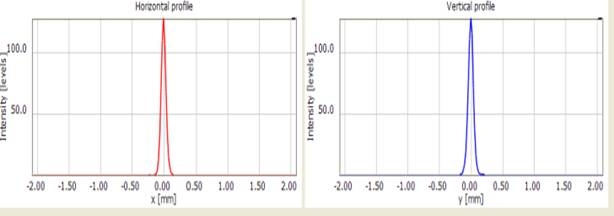

Energy intensity distribution along X-axis	Energy intensity distribution along Y-axis

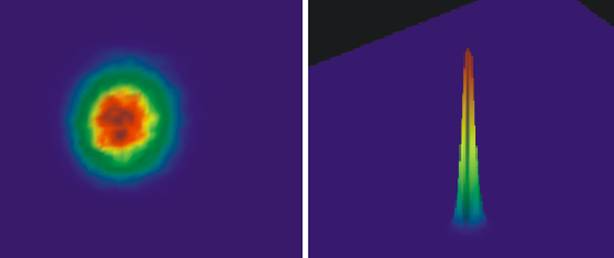

3D energy intensity distribution diagram

A good beam quality can be observed from the 2 diagrams on above, as the energy intensity distribution is symmetry along X and Y axes.

Outline and Mounting:

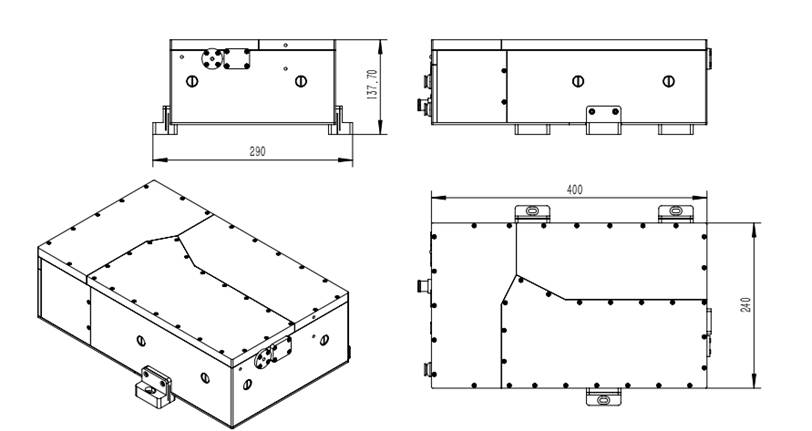

All-in-one pack:

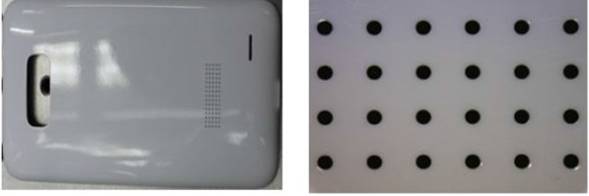

Processed Samples by 3W 355nm Lasers

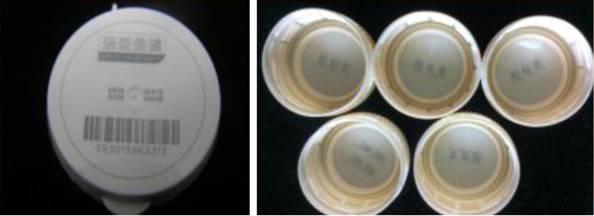

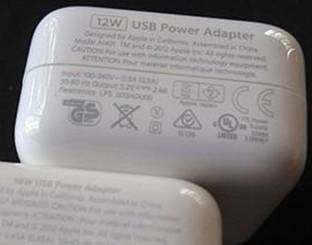

Charger PVC materials

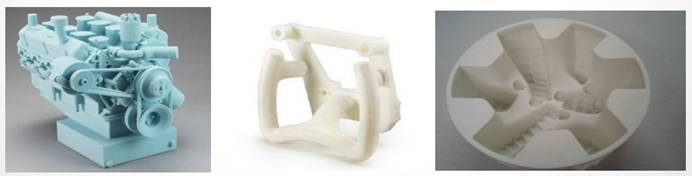

3D printing

Processed Samples by 5W 355nm Laser

Cutting ear's phone

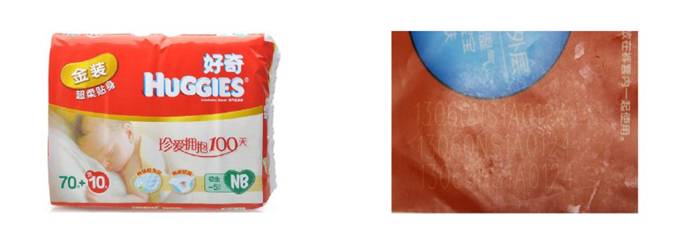

Flying marking of plastic materials

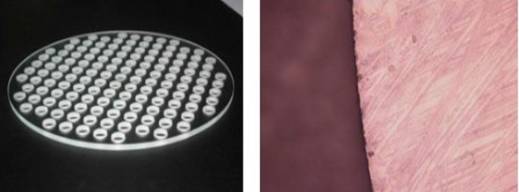

Sub-surface engraving and cutting of fragile glasses

Processed Samples by 10W 355nm Laser

Marking

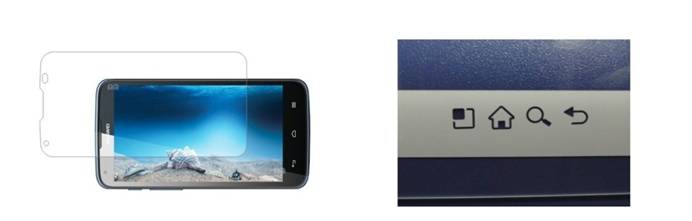

Painting removal of mobile�s touch screen

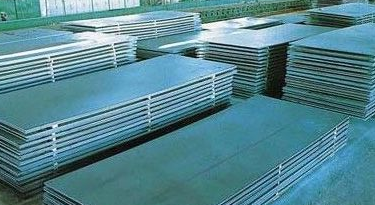

Cutting of metals

Processed Samples by 15W 355nm Laser

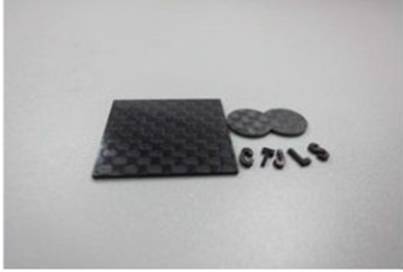

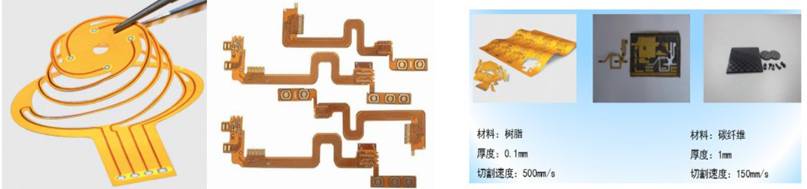

Cutting of fiber materials

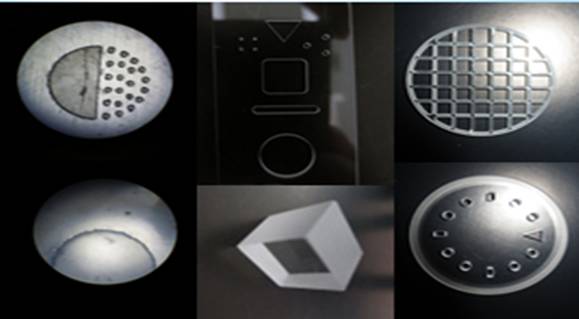

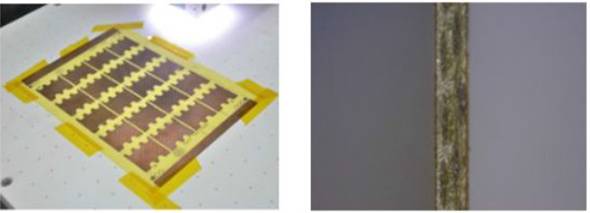

Cutting of FPC boards

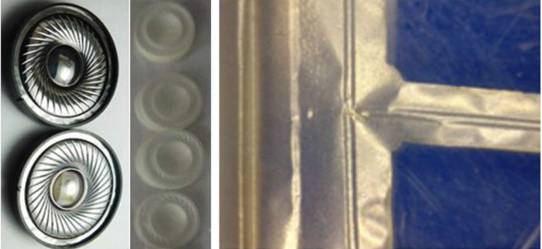

Drilling of ear phone

ST FOTON 532 series

In order to meet the requirements of precise processing in industrial, we developed a 532nm end-pumped Q-switched laser. The adoption of water cooled system allows laser source to have stable performance, smaller size, compact structure and low power consumption. The output laser beam is the fundamental mode, the beam quality is good, and the peak power is high, which can meet most industrial precision processing requirements. The product is provided with either all-in-one pack or individual pack for your needs.

All-in-one pack Individual pack

Features:

Applications:
The DPSS green laser is suitable for processing and marking characters, patterns, batch numbers, production dates, Bar code, logo on a variety of materials, such as nylon, ABS, PVC, PES, coating materials, spray materials, plastic rubber, epoxy resin and others. The marked graphics are high resolution and beautiful. At present, the DPSS green laser marking machine has incomparable performance in many fields such as craft craving, electronic devices, pipeline materials, and film etching, which other types of laser marking machine cannot achieve.

Specification:

Model	Foton-532-5	Foton-532-10	Foton-532-35	Foton-532-60
Laser	DPSS Laser	DPSS Laser	DPSS Laser	DPSS Laser
Wavelength	532nm	532nm	532nm	532nm
Average Power	>5W@30kHz	>10W@40kHz	>35W@40kHz	>60W@60kHz
Beam Spot	<0.7mm	<0.7mm	<1.1mm	<1.2mm
Beam Divergence	<2mrad	<2mrad	<2mrad	<2mrad
Pulse Width	<15ns@30kHz	<15ns@40kHz	<15ns@50kHz	<15ns@60kHz
Beam Mode	TEM00	TEM00	TEM00	TEM00
Beam Quality (M2)	≤1.2	≤1.2	≤1.2	≤1.2
Frequency Range	30kHz~100kHz	30kHz~100kHz	60kHz~300kHz	60kHz~300kHz
Stability	≤2%	≤2%	≤2%	≤2%
Pointing RMS	<10urad	<10urad	<10urad	<10urad
Cooling Method	Water Cooled	Water Cooled	Water Cooled	Water Cooled
Power Supply	220VAC@50Hz	220VAC@50Hz	220VAC@50Hz	220VAC@50Hz
Working Temperature	15~30�C	15~30�C	15~30�C	15~30�C

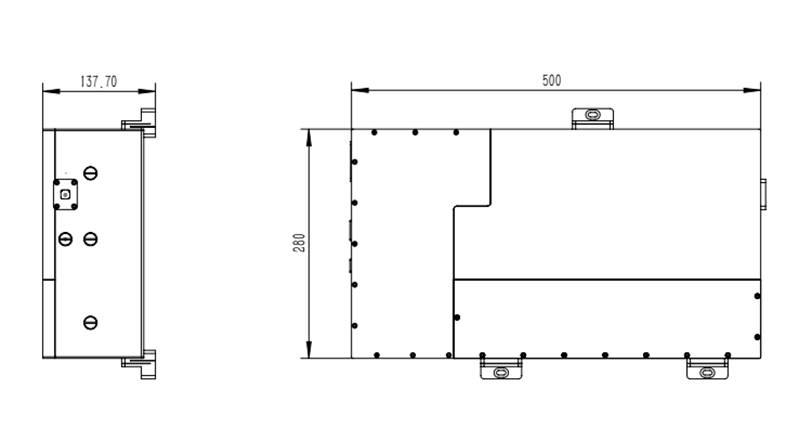

Dimension	400x240x138mm	400x240x138mm	400x240x138mm	500x280x138mm
Weight	17kg	17kg	17kg	25kg
