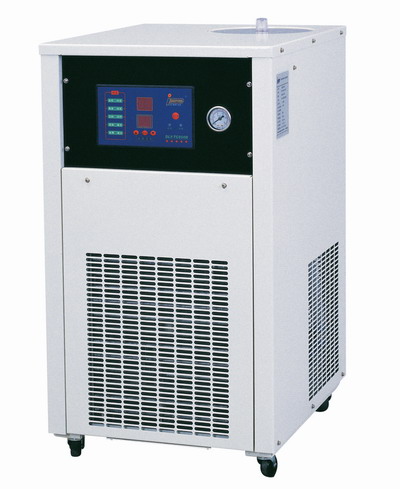

         New Products             Laser Chiller



We are presenting new generation of chillers for variety of laser like DPSS, CO2 and YAG lasers, and laser applications for marking, cutting, welding, and drilling.



Features:

         Stand-structure to reduce footprint

         Top-ventilation air outlet

         High cooling and display accuracy up to 0.1C,

         High stability, low noise

         Over-current & over-load protection

         Temperature protection feedback, NO or NC output

         Water flow interlock to user device

         Stainless steel pump and water tank design for long lifespan

         PVC fittings to prevent erosion

         DI water, or distilled water as coolant

         Pressure sensor and bypass channel to change water flow and outlet pressure

         Microprocessor and LCD display control panel

         Equipped with caster

         Water filter

All the surface contacting the water are stainless steel or engineering plastics. A water flow switch is used to alarm if there are less water flow or no water flow. Foreign design and manufacturing techniques, strict quality control, and excellent management make sure that our products are highly quality, highly reliable and highly durable.

These chillers can be used in laser cooling, chemical engineering and commercial applications.

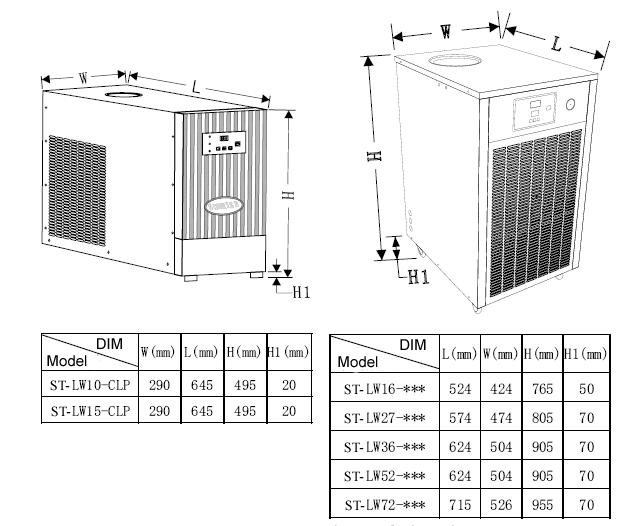

                                                                                    Cooling Principle          Dimensions



Model

ST-LW10-CLP

ST-LW15-CLP

Nominal Cooling Capacity

(W)

1000

1500

Power Supply

1PH-220/50Hz

Power of Compressor

(HP)

3/8

1/2

Refrigerant

R12

R22

Power of Pump

(W)

91

Flow Range

(L/min)

830

Lift Range

(m)

104

Pure Water Storage

(L)

5.5

Chilled Water Inlet & Outlet

Rp

Internal Thread 1/2"

Operation Range

Ambient Temperature

≤35

Chilled Water Temp.

825

Flow Switch

Release Flow Point:2.0L/min

LWH mm

290645495

290645496



Model

ST-LW16-

ST-LW27-

ST-LW36-

ST-LW52-

ST-LW72-

BLP

BHP

BSP

BLP

BHP

BSP

BLP

BHP

BSP

BLP

BHP

BSP

BLP

BHP

BSP

Nominal
Cooling
Power (W)

W

1600

2700

3600

5200

7200

Btu/h

5024

9288

12384

17888

24768

Kcal/h

1376

2322

3096

4472

6192

Power Supply

1PH-220V/50Hz

Refrigerant

R22

Power of
Compressor (HP)

1/2

1

1.5

2

2.75

Rated Air Flow (m/h)

600

1400

2000

2000

2700

Rated Air Discharge (W)

2200

3700

4100

7200

10000

Rated Power of Fan (W)

36

236

286

286

2110

Water Tank Volume (L)

8.5

11.2

15

15

17

Water Inlet & Outlet

Inner teeth DN15(1/2")

Inner teeth DN20(3/4")

Drain

Inner teeth DN15(1/2")

Power of Pump (W)

90

550

550

90

550

550

90

550

550

90

550

550

90

550

550

Rated Pump Lift (m)

6

21

35

6

21

35

8

21

35

8

21

35

8

21

35

Rated Flow (m/h)

1.1

2

2

1.1

2

2

0.9

2

2

0.9

2

2

0.9

2

2

Flow Switch

Operator flow≥3.5L/min, Release flow≤2.0L/min,Max.current≤3A

Rated Current (A)



5.6





5.8





8.2





11.8





14



Net Weight (kg)

69

71

95

98

115

Dimension (LDH)(mm)

424524765

474574805

504624905

504624905

526715955

Noise (dba)

52

56

57

57

58

Filter

5"

10"





ST Series Chillers



Main Specifications:

Input electricity: 380VAC, 50Hz (or 60Hz on request), 3-phase, 4 lines

Coolant: R22 (R407cor R134aon request)

Water temperature: 8-40 degree C

Temperature stability: 3oC ( 0.5oC or 0.2oC on request)

Display resolution: 0.1oC

Flow rate control: depending on model

Environmental temperature: <36oC



Model

Cooling capacity

KW

Input electricity

KW

Lift

mH2O

Flow rate

l/min

Dimension mm

L

W

H

ST16

1.6

0.775

22

20

560

480

700

ST36

3.6

1.6

22

25

700

530

900

ST50

5.0

2.1

22

25

700

530

900

ST80

8.0

3.21

22

30

800

600

1100

ST130

13

5.1

36

50

1180

600

1200

ST160

16

6.38

36

50

1280

650

1200

ST180

18

7.85

36

60

1280

700

1300

ST220

22

8.54

42

80

1440

800

1350

ST330

33

10.32

42

100

1520

760

1700

ST350

35

11.3

42

100

1520

760

1750

* The above specifications are based on the conditions:  room temperature 30 Celcius degree and water temperature 20 Celcius degree.
