          Broadband Communication Sources



Erbium Broadband Sources

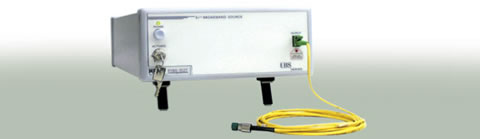

ST-EBS-Series

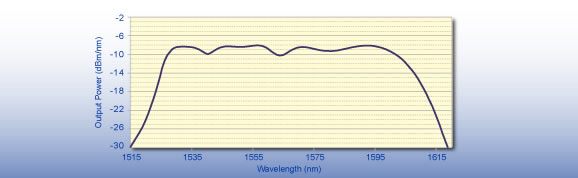

A complete line of flattened Broadband and Comb Sources designed for optical-component measurement, EDFA-subsystem evaluation and optical link characterization





Features

l  Provides broadband light several thousand times brighter than a typical EELED

l  Unique and extra-ordinary source for different applications

l  Output light is unpolarized

l  Wide spectral range with excellent flatness

l  Excellent stability of 5 mdB/hour

l  Packaged in instrument or modular format



Applications

l  Wide dynamic-range optical component testing

l  Accurate EDFA gain spectrum measurement

l  Telecom systems compliance tests

l  Optical link characterization

l  Optical-code division multiple access and local networking by spectral slicing

l  Biomedical imaging

l  Sensors & gyroscopes






Micro Broadband Source

ST-EBS-xs



l  Small modular broadband sources with extremely low output ripple and high stability.

l  Available in both C and L band for applications where a stable light source is needed as in optical sensing and spectroscopy.

l  Compact (MSA size)

l  Output power up to 20 dBm

l  Stability < 50 mdB/hr

l  Available in C and L Band

l  Craft Terminal Interface

l  Customization available



Applications

l  Wide-dynamic-range characterization of components such as AWGs and FBGs

l  Alternative to multiple DFB lasers and multiplexer in telecommunications test sets

l  Accurate gain-spectrum measurement of EDFAs with spectral-hole burning included

l  Local networking using spectral slicing or optical code-division multiplexing

l  PMD measurements of long-span fiber links

l  Gyroscopes

l  White-light interferometry

l  Optical Sensing

l  Spectroscopy



Specifications

Total Output Power

20 dBm non flattened, up to 19 dBm flattened

Spectral Width

~ 35 nm

Ripple for Flattened

1.5 dB over 35 nm

Stability (after 30-min warm up)

50 mdB/hr ( 20 mdB/hr typical)

State of Polarization

Unpolarized

Optical Isolation (output)

30 dB over bandwidth

Output Connector

FC/APC






DWDM Comb Source

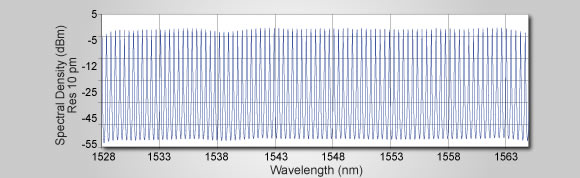

The CombSource is designed to simulate a DWDM signal launched into a fiber link and is an ideal replacement for a costly bank of DFB lasers. It is well-suited for measurements of DWDM amplifier gain and noise figure spectra as well as the evolution of the OSNR and channel power spectra in long-haul, multiply-amplified DWDM systems.





Features

Replacement for bank of 90 DFB lasers

Output power up to 22 dBm

Excellent extinction ratio (>47 dB)

Channels locked to ITU-T grid of 50 GHz or 100 GHz

Units available in both C and L band



Applications

Simultaneously measure optical amplifier gain flatness and noise figure under conditions of full channel loading (high peak-to-valley extinction ratio extends NF measurement capability to high-power booster amplifiers).



Measure full C-band OSNR and channel power evolution over links consisting of multiple spans and optical amplifiers without the need for costly banks of DFB lasers.

Measure magnitude of inter-channel Raman pumping along a span for fully-loaded C-band case.

Test DWDM demux components.



Specifications



9022

4522

9622

4822



Composite Output Power*

> 21.5 (22 typ)

dBm

Power Stability**

better than 20

milli-dB/hr

Min. Spectral Range

1529 - 1565

1529-1567

nm

Min. Number of Channels

90

45

96

48



Spacing Between Channels

50

100

50

100

GHz

Ripple

< 2.0

dB

Min. Extinction Ratio***

45

50

44

49

dB

Max. channel Linewidth ( FWHM )

44

34

46

36

pm

Deviation from ITU Grid

≤ 20

pm

Other power versions are available upon request

After 60 min. warm-up

Measured with a spectral resolution of 20 pm




Erbium Broadband Sources - Dual Band

ST-EBS-7514



The strong, uniform and extremely stable light of the dual band source makes it a very powerful source for component testing. It provides a uniform dynamic range for the characterization of high-loss passive optical components in both the C & L bands.



Features

l  Output power up to 14 dBm

l  Covers both C & L Band

l  Flatness better than 3 dB over 76 nm



Applications

l  Spectral measurements of C & L band DWDM components

l  Compliance tests of C-, L- or dual-band systems

l  Accurate gain and gain-flatness measurement of dual-band EDFAsLocal networking by spectral slicing

l  High sensitivity PMD measurements

l  Fiber sensors and gyroscopes

l  White-light interferometry



Specifications





ST-EBS-7514

Spectral Width



@ 3 dB

> 76 nm

@ 20 dB

100 nm

Typical Ripple

< 2.5 dB over > 75 nm

Stability

5 mdB/hr typ.

Output Power

> 14 dBm

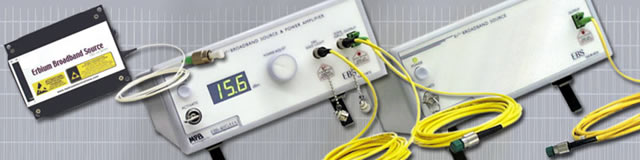

Flat High-Power Broadband Sources

ST-EBS-4022, ST-EBS-4022L, ST-EYBS-3527





ST-EBS-4022

The ST-EBS-4022 Erbium Broadband Source is an extremely stable, flattened broadband source delivering 22 dBm in a 40-nm wide spectrum spanning the whole Erbium C band. It utilizes amplified spontaneous emission (ASE) from diode-pumped Erbium-doped fiber and a spectral shaping scheme which flattens the output to better than 1 dB from 1527 to 1567 nm.



Featuring the same power-spectral density as a full set of 100-GHz spaced DFB lasers, the ST-EBS-4022 can dramatically reduce equipment costs in a variety of telecommunications test sets. As a powerful, flat source, it also naturally lends itself to local networking using spectral slicing or optical code-division multiplexing.



The very high power of the ST-EBS-4022 provides an unsurpassed, uniform dynamic range for the characterization of passive optical components such as array waveguides. Testing is quick and precise, and with the remarkable spectral stability of the ST-EBS-4022, frequent spectrum recording is unnecessary.



Applications

l  Wide-dynamic-range characterization of components such as AWGs and FBGs

l  Alternative to multiple DFB lasers and multiplexer in telecommunications test sets

l  Accurate gain-spectrum measurement of EDFAs with spectral-hole burning included

l  Local networking using spectral slicing or optical code-division multiplexing

l  PMD measurements of long-span fiber links

l  Fiber sensing

l  Gyroscopes

l  White-light interferometry



ST-EBS-4022L

l  An extremely stable, flattened broadband source delivering 21 dBm in a 40-nm wide spectrum spanning the whole L-Band.

l  ASE spectra-shaping scheme flattens the output from 1567 to 1607 nm

l  Very high power provides an unsurpassed, uniform dynamic range for the characterization of passive optical components such as array wavelengths



Applications

l  Wide-dynamic-range characterization of components such as AWGs and FBGs in the L band

l  Alternative to multiple DFB lasers and multiplexer in telecommunications test sets

l  Accurate gain-spectrum measurement of EDFAs with spectral-hole burning included

l  Local networking using spectral slicing or optical code-division multiplexing

l  PMD measurements of long-span fiber links

l  Fiber sensing

l  Gyroscopes

l  White-light interferometry



ST-EYBS-3527

l  A high-power, spectrally-flattened broadband source delivering 27 dBm in a 35nm wide spectrum spanning the C-band.

l  Allows loss measurements to be made over the C-band with a uniform, large dynamic range with equal precision

l  Equipped with output isolation to provide protection against back-reflections from the device under test



Applications

l  Spectral measurements of C-band DWDM components

l  Accurate EDFA gain spectrum measurements

l  Telecom systems compliance tests

l  PMD measurements of long-span fiber links

l  Fiber senors and gyroscopes



Specifications





ST-EBS-4022

ST-EBS-4022L

ST-EYBS-3527



Total Output Power (typical)

22

≥ 21

27

dBm

Spectral Width









@ 3 dB

≥ 40

≥ 40

35

nm

@ 20 dB

58

58



nm

Ripple (typical)

1 dB over ≥38nm

≤1.5 peak to peak

1dB over ≥32 nm
