         List of Products             450nm Blue Lasers


STN Series High Power 450nm Blue Lasers

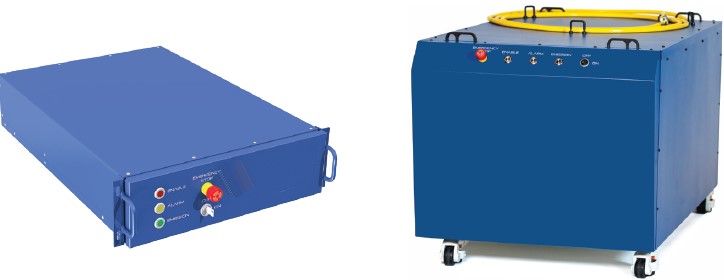

1. STN Series Fiber Coupled Blue Lasers

High brightness, fiber delivered blue lasers for metals processing



The STN Series Fiber Coupled Blue Lasers are high brightness blue lasers that process metals better and more efficiently than IR or green lasers and integrate with standard scanning systems. This enables them to service a wide range of welding, additive manufacturing, and other materials processing applications in batteries, e-mobility and consumer electronics. This series combined with scan head delivery, offers an ideal laser for metal processing due to the high absorption of blue light by metals: including 13x for copper and 3x for aluminum. Reducing the excess heat input compared to infrared lasers enables spatter-free and defect free welds with the highest possible mechanical and electrical performance. With available output powers from 125W to 1kW, these blue lasers can power mass production solutions for <1mm copper and aluminum welds which require a large process window and demand extremely high yields.



Key Benefits

  • High quality low to spatter-free welding

  • Dramatically improves process performance and process window

  • Enables welding processes not possible or with low yields with IR



Application

  • Batteries and energy storage

  • E-mobility

  • Consumer electronics

  • Interconnects

  • Electronics packaging

  • 3D metal printing (powder bed fusion and wire feed)



Optical

Units

STN-125-F

STN-250-F

STN-500-F

STN-1000-F

Wavelength

nm

~444

~444

~444

~444

Bandwidth

nm

15

15

15

15

Output Power

W

125

250

500

1000

Power Adjustment

%

20-100

20-100

20-100

20-100

Power Stability (8 hours)

%

1.5 at full power

Fiber Diameter (Core)

micron

100

100

200

200

Fiber Numerical Aperture

N/A

0.22

0.22

0.22

0.22

Beam Parameter Product

(10-90% enclosed power)

mm.mrad

5

5

15

15

Standard Fiber Length

(Connector Type)

m

5 (QBH). Options for 10 and (QD)

Electrical

Operating Current

A

<18

<18

<8 per phase

<8 per phase

Operating Voltage

V

180/264 (47-63Hz) 1ph 3 wires

208-240 (50/16Hz, 3ph 4 wires)

External Control Inputs

Laser Enable (High on)

CW Analog Control

Modulation

Communications



V

V

kHz



+5/+24

0-10

5

Ethernet



+5/+24

0-10

5

Ethernet



+5/+24

0-10

5

Ethernet



+5/+24

0-10

5

Ethernet

Safety Interlocks

Interlock Voltage (Laser Enable)

Open Circuit (Laser Shut-down)



V



V



24



0



24



0



24



0



24



0

Mechanical

Driver (19" Rack)

Driver (Stand Alone)

Height, Width, Depth

mm

178 443 635

641 671 1183

Weight

kg

21

21

~160

~180

IP Rating



IP20/NEMA 1

IP52/NEMA 12

Operating Conditions

Temperature

Deg C

15-25

15-25

15-25

15-25

Relative Humidity

(non-condensing)

%

0-90

0-90

0-90

0-90

Storage and Transport

Temperature

Deg C

0-40

0-40

0-40

0-40

Cooling

Heat Load

kW/Rton

3/0.85

3/0.85

4/1.2

8/2.3

Min Flow Rate

Lpm/gpm

6/1.5

6/1.5

16.5/4.3

33/8.6

Supply Temperature

Deg C

15-25

15-25

20-24

20-24

Max Pressure

bar/psi

5.5/80

5.5/80

5.5/80

5.5/80

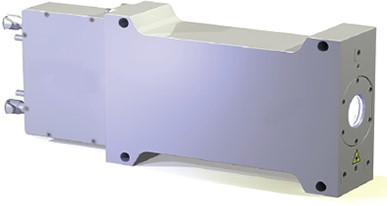

2. STN Series Free Space Blue Lasers

High brightness, free space output blue lasers for metals processing



The STN Series Free Space Blue Lasers are high brightness, blue lasers that process metals better and more efficiently than IR or green lasers and integrate with standard scanning systems. This enables them to service a wide range of welding, additive manufacturing, and other materials processing applications in batteries, e-mobility and consumer electronics. The high brightness of this series, combined with scan head delivery, offers an ideal laser for metal processing due to the high absorption of blue light by metals: including 13x for copper and 3x for aluminum. Reducing the excess heat input compared to infrared lasers enables spatter-free and defect free welds with the highest possible mechanical and electrical performance. With available output powers from 125W to 250W, these blue lasers can power mass production solutions for <500micron copper and aluminum welds which require a large process window and demand extremely high yields.

Key Benefits

  • Compact footprint to simplify integration

  • Capable of direct interface to standard scanners

  • All semiconductor laser reliability and lifetime

  • Lower cost of ownership than fiber and solid-state lasers

  • Spatter and defect free conduction mode welds

  • Higher weld joint densification



Application

  • Batteries for consumer electronics

  • Consumer electronics

  • Interconnects

  • Electronics packaging

  • Powder bed fusion 3D metal printing

Optical

Units

STN-125

STN-250

Wavelength

nm

~444

~444

Bandwidth

nm

15

15

Output Power

W

125

250

Power Adjustment

%

20-100

20-100

Power Stability (8 hours)

%

1.5 at full power

Collimator Aperture Diameter

micron

20 or 30

20 or 30

Beam Parameter Product

(10-90% enclosed power)

mm.mrad

<5

<5

Electrical

Operating Current

A

<18

<18

Operating Voltage

V

180/264 (47-63Hz) 1ph-3 wires

External Control Inputs

Laser Enable (High on)

CW Analog Control

Modulation

Communications



V

V

kHz



+5/+24

0-10

5

Ethernet



+5/+24

0-10

5

Ethernet

Safety Interlocks

Interlock Voltage (Laser Enable)

Open Circuit (Laser Shut-down)



V



V



24



0



24



0

Mechanical

Driver/Head with telescope

Height, Width, Depth

mm

H: 178/170 - W:443/100 - D: 635/410

Weight

kg

21

11.4

Power Supply



19 Rack

IP Rating



IP20/NEMA 1

Operating Conditions

Temperature

Deg C

15-25

15-25

Relative Humidity

(non-condensing)

%

0-90

0-90

Storage and Transport

Temperature

Deg C

0-40

0-40

Cooling

Heat Load

kW/Rton

3/0.85

3/0.85

Min Flow Rate

Lpm/gpm

6/1.5

6/1.5

Supply Temperature

Deg C

15-25

15-25

Max Pressure

bar/psi

5.5/80

5.5/80



STK Series Blue Diode Lasers



1.     500W-2000W Blue Diode Lasers



Compared with traditional laser products, our blue diode laser has a higher absorption rate for materials such as copper and aluminium, and can process non-ferrous metals with lower power. Our blue laser is more compact and easier to use. With flexible laser output mode, it can be integrated into the processing system conveniently.



Our blue lasers can be used in wide applications like welding, cladding, surface treatment, lithium-ion battery manufacturing, etc. Our professional laser application team, with good knowledge and experience, provides the best laser system solution for our customers all around the world.

Features:

  • Good beam quality

  • High electro-optical conversion efficiency

  • Excellent power stability

  • Two operation modes: CW and modulation

  • Excellent system reliability

  • Max modulation frequency up to 5kHz

  • Easy-to-use control interface

  • Cost effective and maintenance free

Application:

  • Welding

  • Additive manufacturing

  • Surface treatment

  • Lithium-ion battery manufacturing

Part number

STK-450-500-330

STK-450-1000-400

STK-450-2000-600

Power

500W

1000W

2000W

Wavelength

4505 nm

4505 nm

4505 nm

Output Fiber Core Diameter

330μm

400μm

600μm

Output Cable Length

10m or Customized

10m or Customized

5m or Customized

Output Cable Connector

QBH

QBH

QBH

Aiming Beam

Red

Red

Red

Operation Mode

CW or modulation

CW or modulation

CW or modulation

Polarization

Random

Random

Random

Power Stability (25℃)

1.5% (2h)

1.5% (2h)

1.5% (2h)

Power Adjustment Scope

10%-100%

10%-100%

10%-100%

Max Modulation Frequency

5kHz

5kHz

5kHz

Physical Size (HWD)

798420900mm

798420900mm

8007501200mm

Weight

< 130 kg

< 140 kg

< 140 kg

Power Supply

Three Phase, 38020 V, AC, PE, 50/60 Hz

Three Phase, 38020 V, AC, PE, 50/60 Hz

Three Phase, 38020 V, AC, PE, 50/60 Hz

Power Consumption

3.5kW

7.0kW

10.0 kW

Control Interface

RS232/AD

RS232/AD

RS232/AD

Minimum Water-Cooling Capacity

3.0kW

6.0kW

8.0 kW

Temperature Settings

25℃ (Laser Module), 30℃ (QBH)

25℃ (Laser Module), 30℃ (QBH)

25℃ (Laser Module), 30℃ (QBH)

Cooling Tubes Size

I.D. Φ25mm

I.D. Φ25mm

I.D. Φ32mm

Cooling Water Flow Rate (Laser Module)

>20L/min

>25L/min

>50L/min

Cooling Water Flow Rate (QBH)

1.5~2.0L/min

1.5~2.0L/min

1.5~2.0L/min

Note: The back reflection will affect the performance and life of the direct diode laser. It is necessary to use the output laser when it is 8-10 away from the vertical direction of the surface.

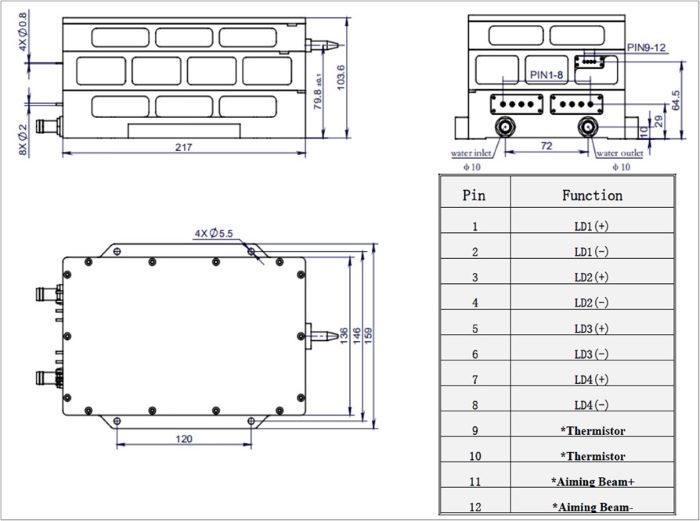

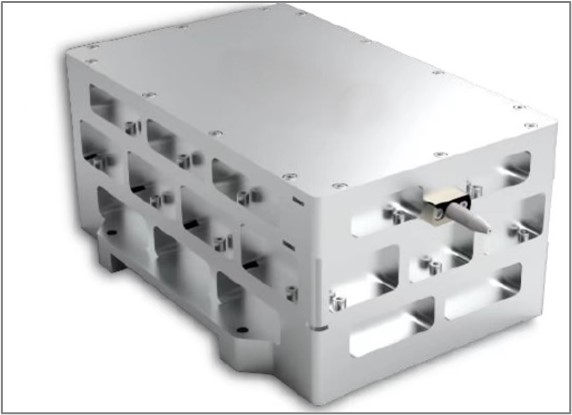

2. 100W~200W Blue Diode Lasers

2.1 200W Blue Diode Lasers

Features:

  • 445nm wavelength

  • 100W/150W/200W output power

  • 105μm fiber core diameter

  • 0.22NA

  • Cooling mode: water cooling

Applications:

  • Material Processing

  • 3D Printing

Specification (20℃)

Symbol

STK- 445-200-105

Minimum

Typical

Maximum

Optical Data (1)

Total CW Output Power (W)

Pbol (4)

200

-

-

Number of submodules

pcs

-

4

-

Submodule CW Output Power (W)

Po

-

50

-

Center Wavelength (nm)

λc

44520

44520

44520

Spectral Width (FWHM), (nm)

△λ

-

6

-

Wavelength Shift with Temperature, (nm/℃)

△ λ/△T

-

0.1

-

Wavelength Shift with Current, (nm/A)

△ λ/△A

-

1

-

Electrical Data

Electrical-to-Optical Efficiency, %

PE

-

30

-

Operating Current, (A)

Ibol (4)

-

3

3.5

Threshold Current, (A)

Ith

-

0.35

-

Operating Voltage (single module), V

Vop

-

52

60

Slope Efficiency (single module), (W/A)

η

-

18.5

-

Power Supply Mode

-

-

4 modules

-

Fiber Data

Core Diameter, (μm)

Dcore

-

105

-

Numerical Aperture

NA

-

0.22

-

Minimum Bending Radius, (mm)

-

50

-

-

Fiber Length, (m)

-



5.5



Fiber Termination

-

-

HP-SMA905

-

Thermistor, (KΩ)/β(25℃℃)

Rt

-

103%/3450

-

ESD (V)

Vesd

-

-

500

Storage Temperature (2), (℃)

Tst

-20



70

Lead Soldering Temp, (℃)

Tls

-

-

260

Lead Soldering Time, sec

t

-

-

10

Operating Temperature (3), (℃)

Top

15

-

30

Relative Humidity, %

RH

15

-

75

Remark:

  1. Data measured under operation output at 200W@20℃℃.

  2. A non-condensing environment is required for operation and storage.

  3. Operating temperature defined by the thermistor. Acceptable operating range is 15℃℃~30℃℃, but performance may vary.

  4. Product delivery qualification standards: Ibeginning of life ≤ 3.5A Pbeginning of life ≥ 200W.

  5. Within the warranty period, the product is considered qualified with Iend of life =3.5A Pend of life 160W.

2.2. 150W Blue Diode Lasers

Specification (20℃)

Symbol

STK- 445-150-105

Minimum

Typical

Maximum

Optical Data (1)

Total CW Output Power (W)

Pbol (4)

150

-

-

Number of submodules

pcs

-

3

-

Submodule CW Output Power (W)

Po

-

50

-

Center Wavelength (nm)

λc

44520

44520

44520

Spectral Width (FWHM), (nm)

△λ

-

6

-

Wavelength Shift with Temperature, (nm/℃)

△ λ/△T

-

0.1

-

Wavelength Shift with Current, (nm/A)

△ λ/△A

-

1

-

Electrical Data

Electrical-to-Optical Efficiency, %

PE

-

30

-

Operating Current, (A)

Ibol (4)

-

3

3.5

Threshold Current, (A)

Ith

-

0.35

-

Operating Voltage (single module), V

Vop

-

52

60

Slope Efficiency (single module), (W/A)

η

-

18.5

-

Power Supply Mode

-

-

3 modules

-

Fiber Data









Core Diameter, (μm)

Dcore

-

105

-

Numerical Aperture

NA

-

0.22

-

Minimum Bending Radius, (mm)

-

50

-

-

Fiber Length, (m)

-



5.5



Fiber Termination

-

-

HP-SMA905

-

Thermistor, (KΩ)/β(25℃℃)

Rt

-

103%/3450

-

ESD (V)

Vesd

-

-

500

Storage Temperature (2), (℃)

Tst

-20



70

Lead Soldering Temp, (℃)

Tls

-

-

260

Lead Soldering Time, sec

t

-

-

10

Operating Temperature (3), (℃)

Top

15

-

30

Relative Humidity, %

RH

15

-

75

Remark:

  • (1) Data measured under operation output at 150W@20℃.

  • (2) A non-condensing environment is required for operation and storage.

  • (3) Operating temperature defined by the thermistor. Acceptable operating range is 15℃℃~30℃℃, but performance may vary.

  • (4) Product delivery qualification standards: Ibeginning of life ≤ 3.5A Pbeginning of life ≥ 150W;

  • (5) Within the warranty period, the product is considered qualified with Iend of life =3.5A Pend of life 120W.

2.3 100W Blue Diode Lasers

Specification (20℃)

Symbol

STK- 445-100-105

Minimum

Typical

Maximum

Optical Data (1)

Total CW Output Power (W)

Pbol (4)

100

-

-

Number of submodules

pcs

-

2

-

Submodule CW Output Power (W)

Po

-

50

-

Center Wavelength (nm)

λc

44520

44520

44520

Spectral Width (FWHM), (nm)

△λ

-

6

-

Wavelength Shift with Temperature, (nm/℃)

△ λ/△T

-

0.1

-

Wavelength Shift with Current, (nm/A)

△ λ/△A

-

1

-

Electrical Data

Electrical-to-Optical Efficiency, %

PE

-

30

-

Operating Current, (A)

Ibol (4)

-

3

3.5

Threshold Current, (A)

Ith

-

0.35

-

Operating Voltage (single module), V

Vop

-

52

60

Slope Efficiency (single module), (W/A)

η

-

18.5

-

Power Supply Mode

-

-

2 modules

-

Fiber Data









Core Diameter, (μm)

Dcore

-

105

-

Numerical Aperture

NA

-

0.22

-

Minimum Bending Radius, (mm)

-

50

-

-

Fiber Length, (m)

-



5.5



Fiber Termination

-

-

HP-SMA905

-

Thermistor, (KΩ)/β(25℃℃)

Rt

-

103%/3450

-

ESD (V)

Vesd

-

-

500

Storage Temperature (2), (℃)

Tst

-20



70

Lead Soldering Temp, (℃)

Tls

-

-

260

Lead Soldering Time, sec

t

-

-

10

Operating Temperature (3), (℃)

Top

15

-

30

Relative Humidity, %

RH

15

-

75

Remark:

  • (1) Data measured under operation output at 100W@20℃℃.

  • (2) A non-condensing environment is required for operation and storage.

  • (3) Operating temperature defined by the thermistor. Acceptable operating range is 15℃℃~30℃℃, but performance may vary.

  • (4) Product delivery qualification standards: Ibeginning of life ≤ 3.5A Pbeginning of life ≥ 100W;

  • (5) Within the warranty period, the product is considered qualified with Iend of life =3.5A Pend of life 80W.

Packaging Dimension:

  1. STK Series blue laser consists of up to 4 submodules50W per module. Power can be supplied separately or in series.

  2. STK Series blue laser cooling water inlet and outlet size: Outer 10mm* Inner 6.5mm.The water flow should be at least 5L/min.

  3. *: Optional functions.

Operating Notes

Applications:

  • Avoid eye and skin exposure to direct radiation during operation.

  • ESD precautions must be taken during storage, transportation and operation.

  • Short circuit is required between pins during storage and transportation.

  • Please connect pins to wires by solder instead of using socket when operation current is higher than 6A. Soldering point should be close to the root of the pins. Soldering temperature should be lower than 260 and time shorter than 10 second.

  • Make sure the fiber output end is properly cleaned before operation of laser. Follow safety protocols to avoid injury when handling and cutting the fiber.

  • Use constant current power supply to avoid surge current during operation.

  • Laser diode must be used according to the specifications.

  • Laser diode must work with good cooling.

  • Operation temperature ranges from 15 to 30℃℃.

  • Storage temperature ranges from -20 to +70℃℃.

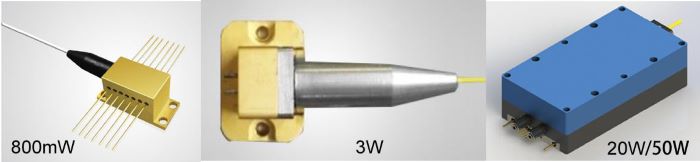

3.   <100W Fiber-coupled Blue Lasers

The STK series fiber-coupled blue lasers are manufactured by adopting specialized fiber-coupling techniques, resulting in high efficiency, stability and superior beam quality. The asymmetric radiation from the laser diode chips are coupled into an output fiber with small core diameter by using special micro optics. Their prices are reasonable and cheaper in the market.

Part Number

STK450FFBFN-0.8W

STK445F03N-3W

STK445FTRFN-20W

STK445FTRFN-50W

Optical Parameter

Laser power(W)

0.8

3

20

50

Wavelength(nm)

450

445

445

445

Tolerance(nm)

10

10

10

10

Spectral width(nm)

<6

<6

<6

<6

Temperature drift (nm/K)

0.3

0.1

0.1

0.1

Fiber Data

Core dia.(um)

105

105

105

 200

NA

0.22

0.22

0.22

0.22

Fiber Length (m)

1.0

1.0

3.5

3.5

Connector

NIL

SMA905

SMA905

SMA905

Thermistor

K Ohm



option

10

10

Electrical Parameter

Operation(A)

1.0

3.0

2.5

2.8

Threshold current(A)

0.25

0.3

0.3

0.3

Operation voltage(V)

4.8

5.2

41

81

Others

Operation temp.(oC)

15-35

15-35

15-35

15-35

Store temp.(oC)

-20-+70

-20-+70

-20-+70

-20-+70

Dimension(mm)

30x12.7x14.8

20x13.6x16

143x68x37

143x68x37

Pilot





option






 Fiber-coupled Diodes

Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113 Whatsapp: +65 91904616  Wechat: C518018

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com  https://www.facebook.com/sintecoptronics

For more and updated information, please go to our New Websites.
