          STYS Series Supercontinuum Sources

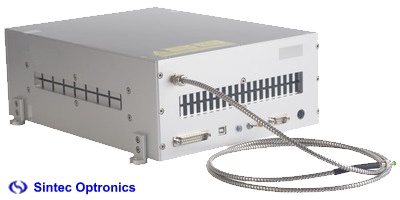

STYS-SC-5-FC (SM fiber coupled)

Supercontinuum source SC-5-FC is a cost effective supercontinuum laser with single mode FC connector output. With a total output power of more than 800mW covering a broad spectral range of 470nm to 2200nm, the system is an ideal light source for fiber component characterization, fiber sensing, OCT and other areas. The system is based on self-designed highly reliable seed laser offering unique reliability and performance. SC-5-FC can replace the traditional ASE, SLD and Lamp systems in many applications.



Features:

�         FC/APC fiber connector output

�         Up to 800mW

�         Single-mode output

�         480nm-2200nm

�         Spectrum Stability<0.1dB

�         With anti-reflection isolator

Applications:

�         Fiber component characterization

�         Fiber sensing

�         OCT

�         Industry inspection

�         Broadband spectroscopy

�         Fluorescence spectroscopy





Specification:

Model

STYS-SC-5-FC

Total Power (Full specrum)

800mW

Wavelength

480nm-2200nm

Spectrum Stability

<0.1dB

Power Stability

<1%

Repetition Rate

5MHz

Output

FC connector (Optional fiber collimated output)

Fundamental Pulse Width

~150ps

Length of Output Fiber

1.5m

State of Polarisation

Unpolarised

Computer Interface

USB

Sync(trigger) Output

SMA

Power Requirements

100-240V, 50/60Hz

Dimensions (W*L*H)

340mm*260mm*125mm

Weight

<20kg

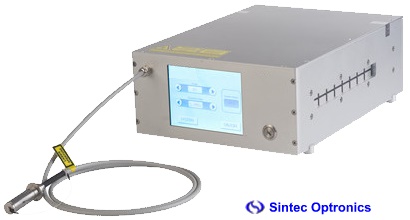

STYS-SC-HE (Fixed Rep rate)

Supercontinuum source SC-HE is the latest high power supercontinuum laser with fixed repetition rate. It delivers a wide spectral output ranging from 410nm to 2400nm with up to 3W total power. SC-HE is a short pulse, MHz repetition rate source based on MOPA architecture providing excellent reliability and lifetime. High spectrum density over the whole spectrum makes it the ideal source for the various applications like fluorescence, nanophotonics, flow-cytometry, OCT and etc.

Features:

�         Self-designed highly reliable seed laser

�         Wavelength: 410nm-2400nm

�         Pulse energy: up to 1uJ

�         Total power: up to 3W

�         One-key-start system

�         TFT control

�         Single-mode output

Applications:

�         Super-resolution imaging

�         Fluorescence spectroscopy and microscopy

�         Nanophotonics

�         Broadband spectroscopy

�         OCT

�         Nonlinear optics

�         Material characterization



Specification:

Model

STYS-SC-HE

Total Power (Full specrum)

3W
Visible Power >300mW

Wavelength

410nm-2400nm

Spectrum Stability

<0.1dB

Power Stability

<1%

Repetition Rate

4MHz

Output

FC connector (Optional fiber collimated output)

Fundamental Pulse Width

~100ps
Beam Diameter ~2mm@633nm
Beam Divergence (half angle) <5mrad

Length of Output Fiber

1.5m

State of Polarisation

Random

Computer Interface

USB

Sync(trigger) Output

NIM trigger

Power Requirements

100-240V, 50/60Hz

Dimensions (W*L*H)

340mm*260mm*125mm

Weight

<20kg



STYS-SC-PRO (Multi function)

Supercontinuum source SC-Pro is the latest high power supercontinuum laser with variable repetition rate. It delivers a wide spectral output ranging from 410nm to 2400nm with up to 4W total power. SC-Pro is a short pulse, MHz repetition rate source based on MOPA architecture providing excellent reliability and lifetime. High spectrum density over the whole spectrum makes it the ideal source for the various applications like fluorescence, nanophotonics, flow-cytometry, OCT and etc.



Features:

�         Self-designed highly reliable seed laser

�         Wavelength: 410nm-2400nm

�         Pulse energy: up to 1uJ

�         Total power: up to 3W

�         Single-mode output

�         NIM trigger signal output, externally triggered

�         One-key-start, touch screen control system

Applications:

�         Super-resolution imaging

�         Fluorescence spectroscopy and microscopy

�         Nanophotonics

�         IR spectroscopy

�         OCT

�         Nonlinear optics

�         Material characterization



Specification:

Model

STYS-SC-PRO

Total Power (Full specrum)

4W@25MHz
3W@5MHz
2W@3MHz
1W@1MHz
Visible Power >400mW

Wavelength

410nm-2400nm

Power Stability

<1%

Repetition Rate

100kHz-25MHz adjustable (min 100kHz step size)

Output

FC connector (Optional fiber collimated output)
Maximum pulse energy Up to 1uJ

Fundamental Pulse Width

~100ps
Beam Diameter ~2mm@633nm
Beam Divergence (half angle) <2mrad

Length of Output Fiber

1.5m

State of Polarisation

Unpolarised

Computer Interface

USB

Sync(trigger) Output

SMA NIM pulse

Power Requirements

100-240V, 50/60Hz

Dimensions (W*L*H)

340mm*260mm*125mm

Weight

<20kg

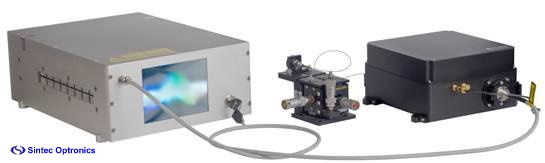

AOTF filter unit for Supercontinuum sources

AOTF system is a simply plug and play module with any of the supercontinuum sources. For each integrated AOTF crystal, the system enables up to 8 simultaneous tunable wavelength channels. Combines of three different crystals, the AOTF module covers the entire supercontinuum spectrum from 400nm to 2400nm. The system can be equipped with either one or two of them according to customer demand. The AOTF offers a free-space collimated beam as standard optical output. As an alternative, a single-mode fiber delivered output is also available.



Features:

�         400-2400nm filter range

�         Simultaneous 8 channels output

�         Linear polarized output

�         Easy plug & play

�         User friendly GUI

Applications:

�         High resolution microscopy

�         Fluorescence microscopy

�         Nanophotonics

�         Replace for several single wavelength laser

�         Material characterization



Specification:

Model

 STYS-AOTF-VIS STYS-AOTF-NIR STYS-AOTF-IR
Wavelength Range 400nm-650nm 650nm-1100nm 1100-2000nm
Filter Bandwidth 3-8nm 2-7nm 6-12nm
AOTF Diffraction Efficiency >70%
Output Efficiency >40%
Polarization Linear Polarised

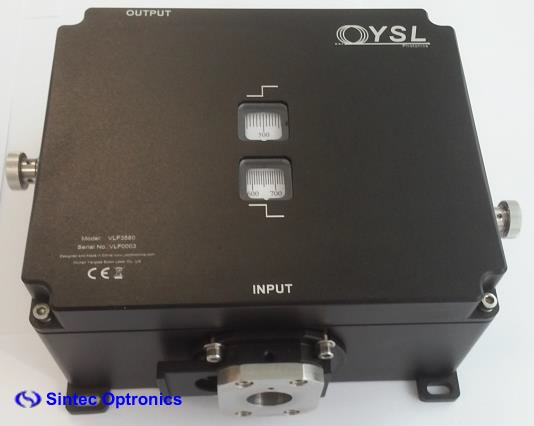

Variable Linear Filter for Supercontinuum sources
 As a removable filtering module with easy plug and play connection, VLF System has been designed to further increase the flexibility of the YSL supercontinuum light sources. With VLF, customers can select any specific single wavelength between 400nm to 840nm with a 10nm-100nm bandwidth. The VLF System offers a free-space collimated beam as standard optical output, as an optional, the output can also be single mode fiber with FC connector.

Features:

�        Channel spectral bandwidth 10-100nm

�         Plug-and-Play: no alignment required

�         Optional single-mode fiber delivery



Specification:

Model

 STYS-AOTF-VIS
Wavelength Range 400nm-840nm
Channel Spectral Bandwidth 10nm - 100nm
Transmission Efficiency >80%
Input Plug and play to STYS Collimator
Output Free-space collimated or fiber delivery
Fiber Coupling Efficiency >30%
Polarization Non-Polarised
