         List of Products             Motorised XY Stages/tables

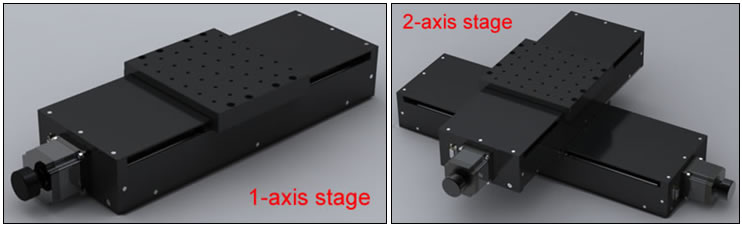

Linear bearing guide, ball screw driving and step motor (or servo motor) are used in STA series motorised linear stages. A XY stage consists of two linear stages. For example, a XY stage with a travel of 300x500mm may consist of a STA300 and a STA500.





Model

STA100

STA200

STA300

STA400

STA500

STA600

Travel

100 mm

200 mm

300 mm

400 mm

500 mm

600 mm

Table size

173x150mm, 36pcs  M6 holes with spacing 25mm

Resolution

1μm

1.25μm

Max moving speed

40mm/sec

50mm/sec

Position accuracy

5μm

Step motor

1.8STP-57D3016

1.8SST59D3300

Loading

30kg

Weight

8.3kg

9.5kg

10.8kg

12kg

14kg

16kg

Remark



























Remark: 1. Other table sizes available upon request.

2. Servo motor available upon request



CNC2000 software can be used to drive the above stages. If the above stages are used to expand the laser marking field by moving the workpieces to be marked, you can use our marking software LMX or LMC to control a laser marking head and a XY table together.
