          STNP Series Single Frequency Fiber Laser



ST-NP Series 1-2 Micron CW Fiber Laser

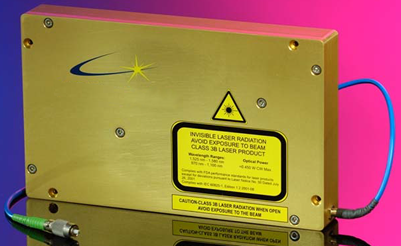

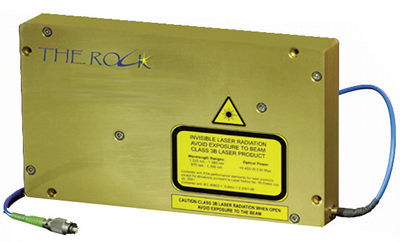

STNP-RFLM Compact Single Frequency Fiber Laser OEM Module

Low-noise, narrow-linewidth, single-frequency, CW lasers. STNP single-frequency fiber lasers provide exceptionally low noise performance in both erbium (1.55-micron band) and ytterbium (1.0-micron band) configurations with output power available up to 50W.





Features

  Narrow Linewidth <700Hz

  Ultra-Low Phase-Noise

  Excellent Frequency Stability

  Broad Mode-Hop-Free Tunability

  Comprehensive, User-Friendly Interface

Low Sensitivity to Acoustic Noise



Parameters:



STNP-RFLM

1.5 micron

STNP-RFLM ULTRA

1.5 micron

STNP-RFLM

1 micron

Center Wavelength Range (nm)1

1530-1565

1530-1565

1030-1075

Laser Emission

CW - single frequency

Output Power (mW) 2



25, 50, 80, 100, 125

25, 40, 80

25, 50, 80, 100, 125

Line Width (120 μsec 3) (kHz)

<3kHz for ≤50mW

<5kHz for ≥80mW

<700Hz

<5kHz

Beam Quality M2

< 1.05

Frequency Stability (MHz) 4

20MHz

RIN-Peak Frequency (MHz)

~0.5 - 1

Optical S/N (dB) (50 pm resolution bandwidth) 5

>75dB

PM output

Standard

Thermal tuning

Standard

Thermal Tuning Range 6

>60GHz (480pm)

>60GHz (480pm)

>66GHz (250pm)

Fast Piezo Tuning Capability 7

Optional

Piezo-electric Tuning Range - Internal Driver

�200MHz

Piezo-electric Tuning Range - External Driver - Optional 8

8GHz 9

Piezo-electric Modulation Frequency 10 (kHz)

up to 40kHz

Calibrated Power Monitor

Standard

Signal to ASE Noise (Integrated)

35dB

Side Mode Suppression Ratio

>50dB

Operating Temperature (�C)

-10 to 35

Wavelength Set Resolution

50MHz

Power Stability (% RMS) 11

0.12

Absolute Wavelength Accuracy

�8pm

Fiber Pigtail (PM FC/APC)

Standard

Polarization Extinction Ratio

>23dB

>23dB

>20dB

Frequency-noise (Hz/√Hz)

NA

150@10Hz

45@100Hz

18@1kHz

5@10kHz

0.9@300kHz

NA

Phase-noise (μrad/√Hz) 1m opt. Path

NA

4.6@10Hz

1.4@100Hz

0.6@1kHz

0.2@10kHz

<0.1@300kHz

NA

RIN level (dB/Hz)

NA

-125@0.3MHz

<-140@10MHz

<-155@100MHz

NA

RIN Level at peak (dB/Hz)

<-110dB/Hz @ PEAK

<-115dB/Hz @ PEAK

<-100dB/Hz @ PEAK

Optical Isolation (dB)

>45dB

>45dB

>35dB

Power Tuning (optional)12

10%-100% max output

10%-100% max output

NA

Footnotes

1. Wavelength selectable from range. Other wavelengths available.

2. Other power levels available

3 Linewidth based on self-heterodyne measurement with 120μs delay line.

4. Over 1 hour with base temperature constant within 0.2�C after a 30 minute warm-up

5. ~80dB typical

6. Continuous mode-hop-free tuning range operating with a case temperature of 25 �C

7. Internal PZT driver included (�10V)

8. External PZT drive required -20 to +65V

9. 64pm @ 1550nm / 30pm @ 1064nm

10. External signal required to reach 40kHz. Up to 14kHz @ 3dB bandwidth for internal driver

11. <0.1% RMS in current mode

12. Can modulate the output (e.g. sawtooth, sinewave) up to 1kHz bandwidth with no impact on laser performance

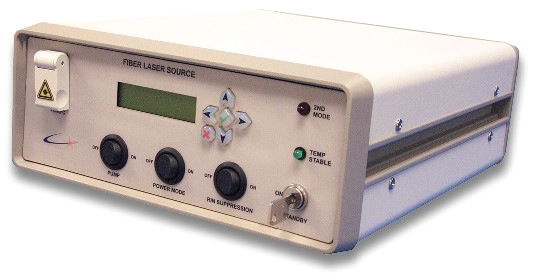

STNP-RFLS Source � Compact Single Frequency Fiber Laser Source

Low-noise, narrow-linewidth, single-frequency, CW lasers. STNP single-frequency fiber lasers provide exceptionally low noise performance in both erbium (1.55-micron band) and ytterbium (1.0-micron band) configurations with output power available up to 50W.





Features

  Narrow Linewidth <700Hz

  Ultra-Low Phase-Noise

  Excellent Frequency Stability

  Broad Mode-Hop-Free Tunability

  Comprehensive, User-Friendly Interface

Low Sensitivity to Acoustic Noise



Parameters:



STNP-RFLS

1.5 micron

STNP-RFLS

ULTRA 1.5 micron

STNP-RFLS

1 micron

Center Wavelength Range (nm)1

1530-1565

1530-1565

1030-1075

Laser Emission

CW - single frequency

Output Power (mW) 2



25, 50, 80, 100, 125

25, 40, 80

25, 50, 80, 100, 125

Line Width (120 μsec 3) (kHz)

<3kHz for ≤50mW

<5kHz for ≥80mW

<700Hz

<5kHz

Beam Quality M2

< 1.05

Frequency Stability (MHz) 4

20MHz

RIN-Peak Frequency (MHz)

~0.5 - 1

Optical S/N (dB) (50 pm resolution bandwidth) 5

>75dB

PM output

Standard

Thermal tuning

Standard

Thermal Tuning Range 6

>60GHz (480pm)

>60GHz (480pm)

>66GHz (250pm)

Fast Piezo Tuning Capability 7

Optional

Piezo-electric Tuning Range - Internal Driver

�200MHz

Piezo-electric Tuning Range - External Driver - Optional 8

8GHz 9

Piezo-electric Modulation Frequency 10 (kHz)

up to 40kHz

Calibrated Power Monitor

Standard

Signal to ASE Noise (Integrated)

35dB

Side Mode Suppression Ratio

>50dB

Operating Temperature (�C)

-10 to 35

Wavelength Set Resolution

50MHz

Power Stability (% RMS) 11

0.12

Absolute Wavelength Accuracy

�8pm

Fiber Pigtail (PM FC/APC)

Standard

Polarization Extinction Ratio

>23dB

>23dB

>20dB

Frequency-noise (Hz/√Hz)

NA

150@10Hz

45@100Hz

18@1kHz

5@10kHz

0.9@300kHz

NA

Phase-noise (μrad/√Hz) 1m opt. Path

NA

4.6@10Hz

1.4@100Hz

0.6@1kHz

0.2@10kHz

<0.1@300kHz

NA

RIN level (dB/Hz)

NA

-125@0.3MHz

<-140@10MHz

<-155@100MHz

NA

RIN Level at peak (dB/Hz)

<-110dB/Hz @ PEAK

<-115dB/Hz @ PEAK

<-100dB/Hz @ PEAK

Optical Isolation (dB)

>45dB

>45dB

>35dB

Power Tuning (optional)12

10%-100% max output

10%-100% max output

NA

Footnotes

1. Wavelength selectable from range. Other wavelengths available.

2. Other power levels available

3 Linewidth based on self-heterodyne measurement with 120μs delay line.

4. Over 1 hour with base temperature constant within 0.2�C after a 30 minute warm-up

5. ~80dB typical

6. Continuous mode-hop-free tuning range operating with a case temperature of 25 �C

7. Internal PZT driver included (�10V)

8. External PZT drive required -20 to +65V

9. 64pm @ 1550nm / 30pm @ 1064nm

10. External signal required to reach 40kHz. Up to 14kHz @ 3dB bandwidth for internal driver

11. <0.1% RMS in current mode

12. Can modulate the output (e.g. sawtooth, sinewave) up to 1kHz bandwidth with no impact on laser performance

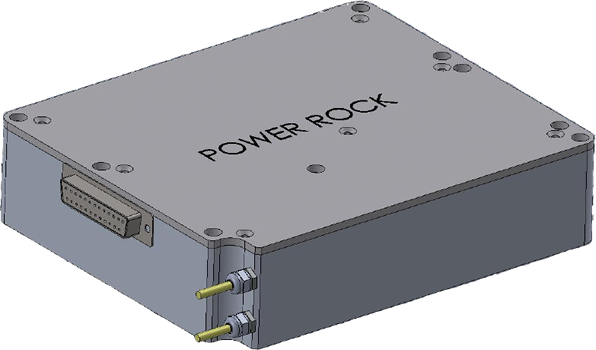

STNP-RFLSA High Power Single Frequency Fiber Laser

Low-noise, narrow-linewidth, single-frequency, CW lasers. STNP single-frequency fiber lasers provide exceptionally low noise performance in both erbium (1.55-micron band) and ytterbium (1.0-micron band) configurations with output power available up to 50W.





Features

  Power up to 5W

  Narrow Linewidth <700Hz

  Ultra-Low Phase-Noise

  Excellent Frequency Stability

  Broad Mode-Hop-Free Tunability

  Low Sensitivity to Acoustic Noise



Parameters:



STNP-RFLSA 1.5 micron

STNP-RFLSA 1 micron

Center Wavelength Range (nm) 1

1530-1565

1030-1075

Laser Emission

CW - single frequency

Output Power (W) 2

0.5, 1, 2, 3, 5

0.5, 1, 2, 52

Line Width (120 μsec 3) (kHz)

<3kHz

(<700Hz-optional)

<5kHz

Beam Quality

M2 < 1.05

Frequency Stability (MHz) 4

20MHz

RIN-Peak Frequency (MHz)

~0.5 - 1

Optical S/N (dB) (50 pm resolution bandwidth) 5

>65dB

PM output

Optional

Thermal tuning

Standard

Thermal Tuning Range 6

>60GHz (480pm)

>66GHz (250pm)

Fast Piezo Tuning Capability 7

Optional

Piezo-electric Tuning Range - Internal Driver

�200MHz

Piezo-electric Modulation Frequency 8 (kHz)

up to 40kHz

Calibrated Power Monitor

Standard

Signal to ASE Noise (Integrated)

35dB

Side Mode Suppression Ratio

>50dB

Operating Temperature (�C)

-10 to 30

Wavelength Set Resolution

50MHz

Power Stability (% RMS)

�1%

Absolute Wavelength Accuracy

�8pm

Output Termination

Standard Fiber or Armored Cable

Polarization Extinction Ratio

>23dB

>20dB

RIN Level at peak (dB/Hz)

<-110dB/Hz

(<-115dB/Hz-optional)

<-100dB/Hz @ PEAK

Optical Isolation (dB) � typical9

>30dB

>25dB

Power Tunability

20%�100% max. output

Footnotes

1. Wavelength selectable from range. Other wavelengths available.

2. Other power levels available. 1 micron 5W system has different packaging.

3. Linewidth based on self-heterodyne measurement with 120μs delay line.

4. Over 1 hour with base temperature constant within 0.2�C after a 30 minute warm-up

5. ~70dB typical

6. Operating with case temperature of 25�C

7. Internal PZT driver included (�10V)

8. External trigger required. Up to 14kHz @ 3dB bandwidth for internal driver

9. 1550nm, 0-5W, 25dB min. 1064nm, 0-2W 25dB min; >2W 20dB min.



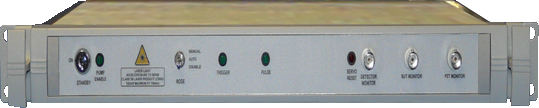

STNP-RFLSE Injection Seeder Fiber Laser







STNP�s seed laser system is used to achieve single longitudinal mode operation of a Q-switched high energy laser by seeding the host laser with a very narrow linewidth continuous wave fiber laser. A piezo electric transducer (PZT), mounted on one of the host laser cavity mirrors, adjusts the 2 laser cavities. The seed laser consists of a narrow linewidth 1μm fiber laser with additional control electronics to drive the PZT through a feedback loop that minimized the host laser pulse build up time. Single mode fiber ensures an ideal transverse mode profile and alleviates mode matching to the host laser. Very good frequency stability of the fiber laser guarantees long uninterrupted period of seeded operation. The seed laser system can be manufactured at any wavelength between 1030 and 1080 nm and therefore match a wide variety of crystal lasers like YAG, YLF or Vanadate. Completely digital control electronics provide the flexibility to easily adapt the seed system to different host laser specifications.



Features:

  Very narrow linewidth (long coherence length) <5 kHz

  Center wavelength over 1030- 1080 nm and at 1 micron

  > 10 mW output power

  Single longitudinal mode

  Single polarization operation

  Integrated Electronics for build-up-time (BUT) reduction

   PZT and PZT mount included

   Integrated noise reduction

   High wavelength stability

   Integrated system

   Microprocessor control

   Thermal wavelength tuning

   No additional noise



Application:

    Seeding of a variety of high energy lasers in the 1 micron range



Specifications:

Parameter

Value

Wavelength Range

1030-1080, 1530�1565nm

Output Power

10mW *

Longitudinal Mode

Single Frequency

Spectral Line Width

< 5kHz

Polarization Extinction Ratio (PER)

> 20dB

Tuning Range (Thermal)

30GHz

Connectors

Fiber Connectors and Free Space Collimator

Package Dimension

265.8 x 482.7 x 44.1mm



STNP-BRFLS Brillouin Single-Frequency Narrow-Linewidth Fiber Laser Source





STNP�s Brillouin Fiber Laser System is a stand-alone fiber laser for sensing, LIDAR, RF-photonics, metrology, test and measurement, telecommunications, and general research applications. The Brillouin Fiber Laser Source incorporates proprietary EMF (Erbium Micro Fiber) technology. A high power, ultra-narrow linewidth EMF fiber laser is used to pump a stabilized Brillouin fiber ring laser to achieve unprecedented narrow linewidth and low noise. The laser provides 25 mW of CW output power (1530-1565 nm).



Features:

    Extremely narrow linewidth 200 Hz

    Center wavelength over 1530-1565 nm

    25 mW output power

    Single longitudinal mode

    Single polarization operation

    Integrated locking loop

    Integrated RIN reduction

    High wavelength stability

    Microprocessor control

    Easy tuning from front panel

    RS232 interface

    Wavelength display

    Power read-out



Applications:

    Sensing

    LIDAR

    Test & Measurement

    Metrology

    RF-Photonics



Specifications:

Parameter

Value

Wavelength Range

1530�1565 nm

Output Power

25 mW

Longitudinal Mode

Single Frequency

Wavelength Accuracy

50 MHz

Spectral Line Width

~ 200 Hz

Relative Intensity Noise (RIN) @ Peak ~ 1 MHz

<-120 dB/Hz

Relative Intensity Noise (RIN) > 50 MHz

< 155 dB/Hz

Signal to ASE Noise Ratio (50 pm, bandwidth)

> 65 dB

Side Mode Suppression Ratio (SMSR)

> 50 dB

Polarization Extinction Ratio (PER)

> 25 dB

Tuning Range

30 GHz

Power Stability over Hours

� 2%

Connectors

FC/APC

Package Dimension

471 x 362 x 204 mm



STNP-RFLMA HP Single-Frequency Narrow-Linewidth Fiber Laser



Features

    Output Powers 2W and above

    Narrow Linewidth <700Hz

    Ultra-Low Phase-Noise

    Excellent Frequency Stability

   Broad Mode-Hop-Free Tunability

   Low Sensitivity to Acoustic Noise



Parameters



STNP-RFLMA 1.5 micron

STNP-RFLMA 1 micron

Center Wavelength Range (nm) 1

1530-1565

1030-1075

Laser Emission

CW - single frequency

Output Power (W) 2

0.5, 1, 2

0.5, 1, 2, 52

Line Width (120 μsec 3) (kHz)

<3kHz

(<700Hz-optional)

<5kHz

Beam Quality

M2 < 1.05

Frequency Stability (MHz) 4

20MHz

RIN-Peak Frequency (MHz)

~0.5 - 1

Optical S/N (dB) (50 pm resolution bandwidth) 5

>65dB

PM output

Optional

Thermal tuning

Standard

Thermal Tuning Range 6

>60GHz (480pm)

>66GHz (250pm)

Fast Piezo Tuning Capability 7

Optional

Piezo-electric Tuning Range - Internal Driver

�200MHz

Piezo-electric Modulation Frequency 8 (kHz)

up to 40kHz

Calibrated Power Monitor

Standard

Signal to ASE Noise (Integrated)

35dB

Side Mode Suppression Ratio

>50dB

Operating Temperature (�C)

-10 to 30

Wavelength Set Resolution

50MHz

Power Stability (% RMS)

�1%

Absolute Wavelength Accuracy

�8pm

Output Termination

Standard Fiber or Armored Cable

Polarization Extinction Ratio

>23dB

>20dB

RIN Level at peak (dB/Hz)

<-110dB/Hz

(<-115dB/Hz-optional)

<-100dB/Hz @ PEAK

Optical Isolation (dB) � typical9

>25dB

>25dB

Power Tunability

20%�100% max. output

Footnotes

1. Wavelength selectable from range. Other wavelengths available.

2. Other power levels available.

3. Linewidth based on self-heterodyne measurement with 120μs delay line.

4. Over 1 hour with base temperature constant within 0.2�C after a 30 minute warm-up

5. ~70dB typical

6. Operating with case temperature of 25�C

7. Internal PZT driver included (�10V)

8. External trigger required. Up to 14kHz @ 3dB bandwidth for internal driver

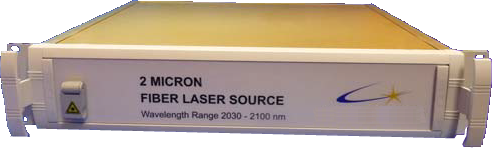

STNP-FLS Single-Frequency Narrow-Linewidth Fiber Laser





Leveraging its expertise in highly doped germanate glass and fibers, we offers a 2-um single frequency Ho-doped fiber laser with output powers up to 25 mW. Wavelength operation near 2.05 micron is very attractive for CO2 detection applications. The design of 2-micron short-cavity laser is similar to Er/Yb and Yb doped phosphate glass fiber laser, which exhibits single-frequency operation with narrow linewidth and excellent frequency-noise properties. A low noise Tm-doped fiber laser pumps the Ho-doped fiber laser � resulting in superior noise properties for the output at 2-micron. An acoustically damped package is used to isolate the DBR laser cavity and results in stable operation over long periods.

Coherent Doppler Lidar and Differential Absorption Lidar (DIALs), working with 2-micron pulsed lasers, make possible detailed measurements of wind, CO2, aerosols, clouds and river flow. Next generation LIDARs require a seed laser source with wavelength tunability, frequency stability, narrow linewidth, efficient operation, compact size, and low thermal load. Recently the development of diode-pumped single frequency fiber lasers has drawn more and more attention due to its narrower linewidth, longer coherence length, multiple wavelength choice, reliability, ruggedness, and compactness. The wide range of operating wavelengths of fiber lasers provide the flexibility for those applications where operation wavelength is vital, such as laser spectroscopy, remote sensing, and coherent laser seeding application.



Specifications:

Parameter

Value

Wavelength Range

2050 nm (2030 nm � 2100 nm available on request)

Output Power

up to 25 mW (with no output isolation)

Longitudinal Mode

Single Frequency

Wavelength Set Resolution

50 MHz

Spectral Line Width (Heterodyne)

< 50 kHz

Frequency Stability (*)

< 50 MHz

Relative Intensity Noise (RIN) @ Peak ~ 1MHz

<-90dB/Hz

Relative Intensity Noise (RIN) > 50 MHz

Short Noise Limited

Polarization Extinction Ratio (PER)

> 17 dB (optional)

Tuning Range

10 GHz (thermal)

Power Stability

� 5%

Connector

FC/APC Connector (panel mounted, narrow key)

Package Dimension

382 x 480 x 88 mm (Laser head)

(*) Over 1 hour with base temperature constant to within < 2� c after 30 min warm-up.

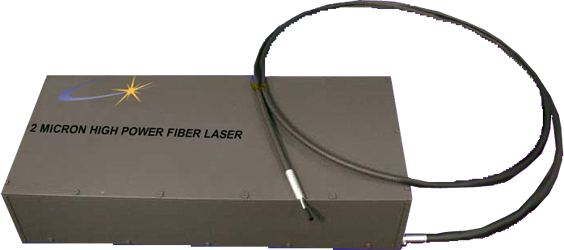

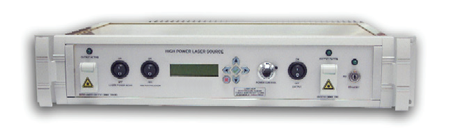

STNP-FLSAT High Power Fiber Laser Source





Leveraging its expertise in highly-doped germanate glass and fibers, we offers a Thuliumdoped fiber laser at 2-μm with an output power up to 25 W. The system comes in user-friendly configuration as a turnkey source. The laser module is housed in an acoustically damped package used to isolate the DBR laser cavity and results in stable operation over extended periods. The output from the delivery fiber is single transverse mode. The system is an ideal configuration for a laboratory environment.



Applications:

    Coherent Doppler Lidar

    Differential Absorption Lidar (DIALs)



Specifications:

Parameter

Value

Operating Wavelength Range

1.9 um � 2.0 um (selectable)

Output Power

10 W, 20 W, 25W

Output Spectral Bandwidth

< 0.1 nm

Mode of Operation

Continuous wave (CW), Modulated (up to 10kHz)

Output Power Stability

�3%

Output Beam Mode

Single Mode (M2 < 1.1)

Optical Transport Fiber Length

2 m

Package Dimension (Fiber Laser Unit)

14.5� X 6.5� X 3.25� (approximate)

Package Dimension (Power Supply Unit)

8.5� (W) X 17� (D) X 1.75� (H) (approximate)



ST-NP Series 1-1.5 Micron ASE Source



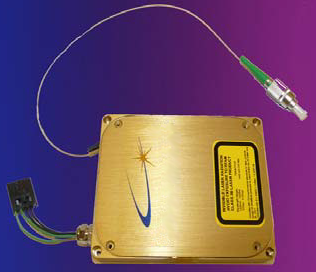

STNP-ASE-M ASE Module

STNP 1-Micron ASE Module is a high performance, high power, low cost and reliable incoherent light source for optical sensing, testing, and optical coherence tomography. This high power source produces a broadband output spectrum of Amplified Spontaneous Emission (ASE) ranging from 1000 to 1065 nm. The technology offers high levels of power, spectral and temperature stability for the most demanding ASE applications.

The 1-Micron ASE Module is a member of our ASE product family that covers a variety of wavelength ranges, spectral shapes, and output powers. All are available in convenient form factors including: OEM Module and Benchtop unit.





Features

    > 13 dBm (> 20 mW)

    High power

    Wide bandwidth (> 65 nm)

    Integrated pump laser

    Microprocessor control

   Monitoring electronics

   Customizable

Applications:

    Bio-medical imaging (OCT)

    Sensing

    Passive components testing

    Fiber optic gyroscope

    Spectroscopy





Specifications:

Parameter

STNP-ASE-M-LP

STNP-ASE-M-HP

STNP-ASE-M-HPE

Wavelength range @ 3 dB

1000 - 1050 nm

1005 � 1055 nm

1005 - 1075nm

Wavelength range @ 10 dB

995 � 1060 nm

1000 � 1065 nm

1000-1090 nm

Output Power (dBm)

> 7 dBm

> 13 dBm

> 13 dBm

Degree of Polarization

< 5%

< 5%

< 5%

Package Dimensions

200 x 72 x 16 mm

200 x 120 x 26.35 mm

200 x 120 x 26.35 mm

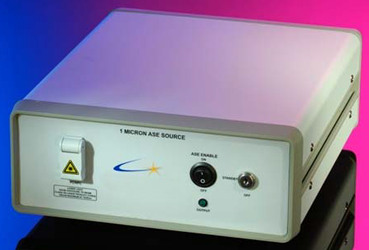

STNP-ASE-S ASE Source

STNP 1-Micron ASE source is a high performance, high power, low cost and reliable incoherent light source for optical sensing, testing, and optical coherence tomography. This high power source produces a broadband output spectrum of Amplified Spontaneous Emission (ASE) ranging from 1000 to 1065 nm. The technology offers high levels of power, spectral and temperature stability for the most demanding ASE applications.

The 1-Micron ASE Module is a member of our ASE product family that covers a variety of wavelength ranges, spectral shapes, and output powers. All are available in convenient form factors including: OEM Module and Benchtop unit.





Features

    > 13 dBm (> 20 mW)

    High power

    Wide bandwidth (> 65 nm)

    Turn-key system

    RS232 interface

    CDRH compliant

    Integrated pump laser

    Microprocessor control

   Monitoring electronics

   Customizable

Applications:

    Bio-medical imaging (OCT)

    Sensing

    Passive components testing

    Spectroscopy





Specifications:

Parameter

STNP-ASE-S-LP

STNP-ASE-S-HP

STNP-ASE-S-HPE

Wavelength range @ 3 dB

1000 - 1050 nm

1005 � 1055 nm

1005 - 1075nm

Wavelength range @ 10 dB

995 � 1060 nm

1000 � 1065 nm

1000-1090 nm

Output Power (dBm)

> 7 dBm

> 13 dBm

> 13 dBm

Degree of Polarization

< 5%

< 5%

< 5%

Package Dimensions

200 x 72 x 16 mm

200 x 120 x 26.35 mm

200 x 120 x 26.35 mm





STNP-ASE-CLM C&L-Band ASE Module

STNP C&L-Band ASE Module is a high performance, ultra-compact, low cost and reliable incoherent light source for sensing. This high power source produces a broadband output spectrum of Amplified Spontaneous Emission (ASE) ranging from 1525 to 1610 nm. The technology offers high levels of power, spectral, and temperature stability for the most demanding ASE applications.

The C&L-Band ASE Module is a member of our ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers. Most are available in convenient form factors including: OEM Module and Benchtop.





Features

    Full C&L Band operation

    7, 10, 13, 17 & 19 dBm

    Integrated pump laser

    Microprocessor control

    Monitoring electronics

   Customizable

Applications:

    Bio-medical imaging source

    Sensing

    Passive components testing

    Spectroscopy





Specifications:

Parameter

Value

Wavelength Range

1525 to 1610 nm

Output Power

7, 10, 13, 17 & 19 dBm

Minimum power stability (dB) (1 hr) at fixed �C

� 0.02 dB

Minimum spectral power density (dBm/nm)

-12

Optical Bandwidth @ 10 dB point

> 85 nm

Output Polarization (Degree of Polarization)

< 5%

Power Consumption

< 6 W

Package Dimension

200 x 120 x 26.35 mm



STNP-ASE-CLS C&L-Band ASE Source

STNP C&L-Band ASE source is a high performance, low cost and reliable incoherent light source for sensing and testing. This high power source produces a broadband output spectrum of Amplified Spontaneous Emission (ASE) ranging from 1525 to 1610 nm. The technology offers high levels of power, spectral, and temperature stability for the most demanding ASE applications.

The C&L-Band ASE source is a member of our ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers. Most are available in convenient form factors including: OEM Module and Benchtop.





Features

    13,17 &19 dBm

    Full C&L Band operation

    Wide bandwidth

    Turn-key system

    RS232 interface

    CDRH compliant

    Integrated pump laser

    Microprocessor control

   Monitoring electronics

   Customizable

Applications:

    Bio-medical imaging source

    Sensing

    Passive components testing

    Spectroscopy





Specifications:

Parameter

Value

Wavelength Range

1525 to 1610 nm

Output Power

13, 17 & 19 dBm

Minimum power stability (dB) (1 hr) at fixed �C

� 0.01 dB

Minimum spectral power density (dBm/nm)

-12

Optical Bandwidth @ 10 dB point

> 85 nm

Output Polarization (Degree of Polarization)

< 5%

Package Dimension

310.12 x 257 x 103 mm



STNP-ASE-CM C-Band ASE Module

STNP C-Band ASE Module is a high performance, low cost and reliable incoherent light source for sensing and testing. This high power source produces a broadband output spectrum of Amplified Spontaneous Emission (ASE) ranging from 1525 to 1610 nm. The technology offers high levels of power, spectral, and temperature stability for the most demanding ASE applications.

The C-Band ASE Module is a member of our ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers. Most are available in convenient form factors including: OEM Module and Benchtop.



Features

    Full C-Band operation

    7, 10, 13, 17 & 19 dBm

    Integrated pump laser

    Microprocessor control

    Monitoring electronics

   Customizable

Applications:

    Bio-medical imaging source

    Sensing

    Passive components testing

    Spectroscopy

    Fiber Optic Gyroscope





Specifications:

Parameter

Value

Wavelength Range

1525-1565 nm

Output Power

7, 10, 13, 17 or 19 dBm

Spectral Power Variation (dB)

<� 5

Output Power Stability (dB) (1hr) at fixed � C

< 0.04dB

Output Power Stability (dB) over 0-50 � C

� 0.2

Output Polarization (Degree of Polarization)

< 5%

Power Consumption

<8.25 W,< 3W Typical

Supply Voltage

+3.3V �5%

Supply Voltage Noise Level

<50mW pk-pk

Supply Current

2.5A Max; 1A Typical (1)

Power Supply Capacitive Load

250uF Decoupling Inside Unit

Optical Bandwidth @ 10 dB point

> 40 nm

Package Dimension

90 x 70 x 12 mm



STNP-ASE-CS C-Band ASE Source

STNP C-Band ASE source is a high performance, low cost and reliable incoherent light source for sensing and testing. This high power source produces a broadband output spectrum of Amplified Spontaneous Emission (ASE) ranging from 1525 to 1610 nm. The technology offers high levels of power, spectral, and temperature stability for the most demanding ASE applications.

The C-Band ASE source is a member of our ASE product family which covers a variety of wavelength ranges, spectral shapes, and output powers. Most are available in convenient form factors including: OEM Module and Benchtop





Features

    7, 10, 13, 17 &19 dBm

    Full C Band operation

    Wide bandwidth

    Turn-key system

    RS232 interface

    CDRH compliant

    Integrated pump laser

    Microprocessor control

   Customizable

Applications:

    Bio-medical imaging source

    Sensing

    Passive components testing

    Spectroscopy





Specifications:

Parameter

Value

Wavelength Range

1525-1565 nm

Output Power

7, 10, 13, 17 or 19 dBm

Spectral Power Variation (dB)

� 2 (w/GFF), � 3.5 (w/o/GFF)

Output Power Stability (dB) (1hr) at fixed � C

< �0.005

Output Power Stability (dB) over 0-50 � C

� 0.2

Output Polarization (Degree of Polarization)

< 5%

Power Consumption

<8.25 W,< 3W Typical

Supply Voltage

+3.3V �5%

Supply Voltage Noise Level

<50mW pk-pk

Supply Current

2.5A Max; 1A Typical (1)

Power Supply Capacitive Load

250uF Decoupling Inside Unit

Optical Bandwidth @ 10 dB point

> 40 nm

Package Dimension

127 x 106.6 x 56.1 mm



ST-NP Mid-Infrared Fibers and Source (1-5μm)

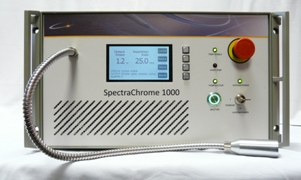

STNP-SC1K Mid-IR Supercontinuum Laser

We has developed a unique, patented mid-IR fiber supercontinuum technology providing wavelength coverage from 1000nm to 5000nm with high average power >1W picosecond pulses at variable repetition rates. The single mode output is delivered from armored fiber. This turn-key broadband Mid IR source has applications in spectroscopy applications, particularly for hydrocarbon and gas sensing.





Features

    Wavelength coverage 1000nm to 5000nm

    High average power >1W

    Picosecond pulses

    Variable Repetition Rate

    Single mode output

    Armored delivery fiber



Specifications:

Parameter

STNP-SC1K

Operating Wavelengths (-30dB)

1000 � 5000nm

Average power (W)1

>1

Average power in 1000nm to 1900nm band

>500mW

Average power in 2000nm to 5000nm band

>500mW

Spatial Beam Quality

Single Mode (all wavelengths >2000nm)

Pulse Repetition Rate (MHz)

1.25 � 20

Pulse Duration (picoseconds)

20

Power Stability

�2%

Polarization

Random

Output Beam

Collimated2

Length of Delivery Fiber (cm)

>50

Operation Voltage

100-240VAC 50/60Hz

System Cooling

Air Cooled

Operation Temperature (�C)

18-30

Footnotes

1. Integrated over all emission wavelengths

2. Uncollimated output optional





Sintec Optronics Pte Ltd

10 Bukit Batok Crescent #07-02 The Spire Singapore 658079

Tel: +65 63167112 Fax: +65 63167113 Whatsapp: +65 91904616  Wechat: C518018

E-mail: sales@sintec.sg sales@SintecOptronics.com

URL: http://www.sintec.sghttp://www.SintecOptronics.com  https://www.facebook.com/sintecoptronics

For more and updated information, please go to our New Websites.
