Item Part Number

Description

D600, 10100-354

Multipurpose Filter

LFTSTARMARK, 20000-638

Lamp Flow Tube

ST209, 80750-008, 131100031

Lamp, 30Amp

MR3M100RHC

Rear Mirror HR

MR3M70RHC

Front Mirror 70%

MR3M80RHC

Front Mirror 80%

ORKSTARMARK

O-Ring Kit

RFT512C, 20000-041

Rod Flow Tube

Item Part Number

Laser Rail

BASTARMARK

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

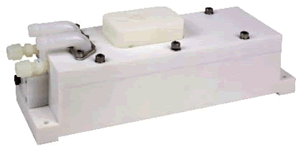

STBASTARMARK90

Complete Head Block Assembly, 4mm x79mm

GCSTARMARK

Gold Cavity Assembly, Complete

HBASTARMARK

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORKSTARMARK

O-Ring Kit

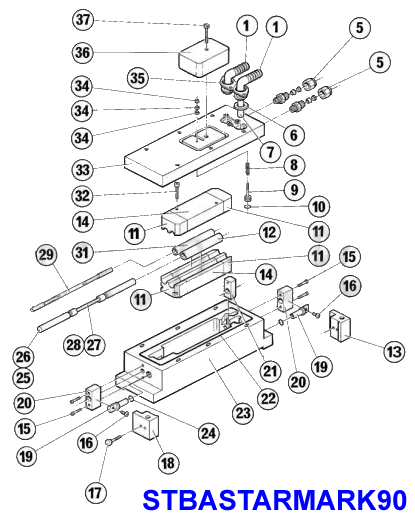

Reference

Item Part Number

Laser Rail

11

CEP6000T

Cavity End Plate, 20000-238

14

GCE600

Gold Cavity Ellipse, 20000-023

16

H110

M5 X 7.5 Button Head

37

H126

M5 X 30 Nylon Pan Head

34

H19

M3 Nut

15

H36

M3 X 20 Socket Cap

38

H41

M3 X 8 Socket Cap

32

H45

M3 X 16 Socket Cap

9

IC212

Ignition Contact, 20000-289

36

ICC212

Ignition Coil Cover, 20000-462

31

LFTSTARMARK

Lamp Flow Tube, 20000-038

23

LHBSTARMARK

Lower Head Block, 20000-543

29

ST209

Krypton Arc Lamp, 30 Amps, 80750-009 (90 Watt)

18

LPP212F

Lamp Pressure Plate, 20000-386

13

LPP212R

Lamp Pressure Plate, Rear, 20000-384

19

LTBA700

Lamp Terminal Block Assembly, 10000-210

22

ORS212

O-Ring, Silicone, 66200-109

24

ORS9125

O-Ring, Silicone, 66200-108

6

ORW6000

O-Ring Washer, Silicone, 66000-032

12

RFT512C

Rod Flow Tube, 20000-041

20

RPP212

Rod Pressure Plate, 20000-386

21

TLS212

Teflon Light Shield, 20000-240

17

TS212

Thumb Screw

33

UHBSTARMARK

Upper Head Block, 20000-385

1

WF052

Water Fitting, Elbow, 64630-019

5

WF054

Water Fitting, Q-Switch, 64630-047

35

WFCP212

Water Fitting Clamp Plate, 20000-399

7

WFTSTARMARK

Water Fitting Tube, 64700-16

27

YR479

YAG Rod, 4mm X 79mm

28

YR579*

YAG Rod, 5mm X 79mm (Special Upgrade)

25

YRA633

YAG Rod Assembly, Mounted, 50320-033

26

YRA634*

YAG Rod Assembly, Mounted, 5mm 79mm (Special upgrade)
