 Lamp
Pumped Laser Heads
STBASTARMARK150
Laser Systems:
Baasel Lasertechnik Starmark 150W, AB Laser Starmark 150W

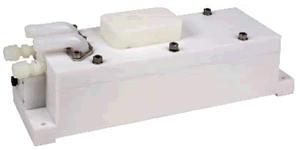

Description:
Single-Lamp Pumped Solid-State Laser Chamber used for cutting, marking &
deep engraving applications.
|
Item Part Number |
Description |
|
D6000, 10100-354 |
Multi Purpose Filter |
|
LFTSTARMARK150, 101101486 |
Lamp Flow Tube |
|
ST700, 80750-029, 131100046 |
Lamp |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M70RHC |
Front Mirror 70% |
|
MR3M80RHC |
Front Mirror 80% |
|
ORKSTARMARK150 |
O-Ring Kit |
|
RFT11124 |
Rod Flow Tube |
|
Item Part Number |
Laser Rail |
|
BASTARMARK150 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBASTARMARK150 |
Complete Head Block Assembly, 5mm x125mm |
|
GCSTARMARK1150 |
Gold Cavity Assembly, Complete |
|
HBASTARMARK150 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORKSTARMARK150 |
O-Ring Kit |
|

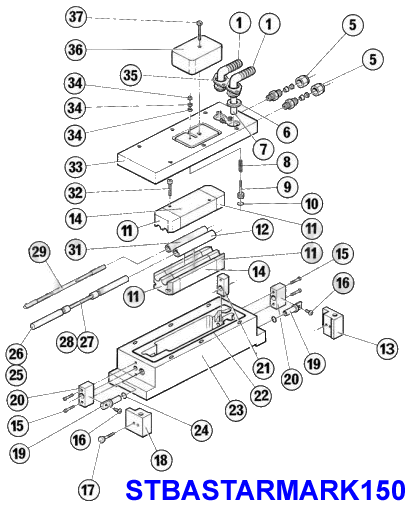

Reference |
Item Part Number |
Laser Rail |
|
11 |
CEPSTARMARK150 |
Cavity End Plate |
|
14 |
GCESTARMARK |
Gold Cavity Ellipse |
|
16 |
H110 |
M5 X 7.5 Button Head |
|
37 |
H126 |
M5 X 30 Nylon Pan Head |
|
34 |
H19 |
M3 Nut |
|
15 |
H36 |
M3 X 20 Socket Cap |
|
38 |
H41 |
M3 X 8 Socket Cap |
|
32 |
H45 |
M3 X 16 Socket Cap |
|
9 |
IC212 |
Ignition Contact, 20000-289 |
|
36 |
ICC212 |
Ignition Coil Cover, 20000-462 |
|
31 |
LFTSTARMARK150 |
Lamp Flow Tube |
|
23 |
LHBSTARMARK |
Lower Head Block, 20000-543 |
|
29 |
ST700 |
Krypton Arc Lamp, 30 Amps, 80750-029 (150 Watt) |
|
18 |
LPP212F |
Lamp Pressure Plate, 20000-386 |
|
13 |
LPP212R |
Lamp Pressure Plate, Rear, 20000-384 |
|
19 |
LTBA7000 |
Lamp Terminal Block Assembly, 10000-210 |
|
22 |
ORS212 |
O-Ring, Silicone, 66200-109 |
|
24 |
ORS9125 |
O-Ring, Silicone, 66200-108 |
|
6 |
ORW6000 |
O-Ring Washer, Silicone, 66000-032 |
|
12 |
RFT11124 |
Rod Flow Tube |
|
20 |
RPP212 |
Rod Pressure Plate, 20000-386 |
|
21 |
TLS212 |
Teflon Light Shield, 20000-240 |
|
17 |
TS212 |
Thumb Screw |
|
33 |
UHBSTARMARK |
Upper Head Block, 20000-385 |
|
1 |
WF052 |
Water Fitting, Elbow, 64630-019 |
|
5 |
WF054 |
Water Fitting, Q-Switch, 64630-047 |
|
35 |
WFCP212 |
Water Fitting Clamp Plate, 20000-399 |
|
7 |
WFTSTARMARK |
Water Fitting Tube, 64700-16 |
|
28 |
YR4125 |
YAG Rod, 4mm X 125mm |
|
27 |
YR5125 |
YAG Rod, 5mm X 125mm |
|
25 |
YRASTAR150 |
YAG Rod Assembly, Mounted, 5mm x 125mm |
|
26 |
YRASTAR4125 |
YAG Rod Assembly, Mounted, 5mm x 125mm |
|
