Lamp Pumped Laser Head (Pump Chamber) STBASS550

Laser Systems:

Raytheon Laser Model SS525; SS531; SS550

Description:
Dual-Lamp Pumped pulsed Solid-State Laser Chamber used for cutting, drilling & welding metals

FREQUENTLY USED CONSUMABLES

ASSEMBLIES

Item Part Number	Laser Rail
GC500	Gold Cavity Assembly, Complete
ORK550	O-Ring Kit
YRHKIT500	Rod Holder Kit ( Items 15, 16, 17, 18, 19, 20 & 21)

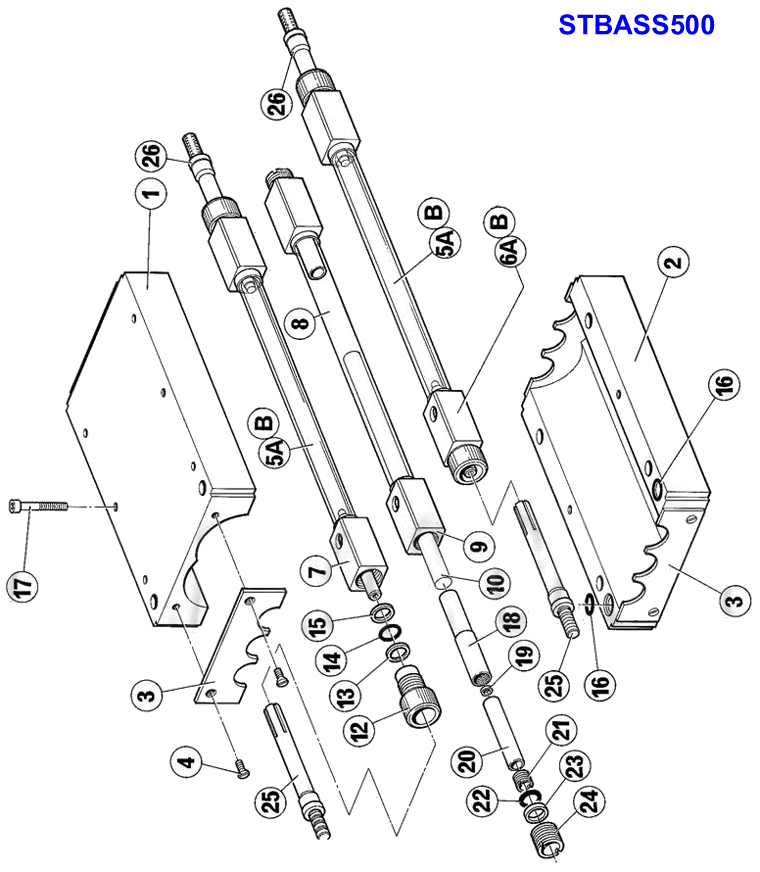

LASER HEADS COMPONENTS

Reference	Item Part Number	Laser Rail
5	BS012	O-Ring, Silicone
3	CEP500	Cavity End Plate, Gold Plated
2	GCE500L	Cavity Ellipse, Lower, Gold Plated
1	GCE500U	Cavity Ellipse, Upper, Gold Plated
4	H200	Stainless Steel Counter Sunk Screw, 2-56 x 3/16
14	H201	Stainless Steel Socket Cap Screw, 10-24 x 1"
8	LFT550	Lamp Flow Tube
13A	STSS500K	Laser Lamp, Krypton
13B	STSS500X	Laser Lamp, Xenon
6	LTB500A	Lamp Electrode Connector, Anode, Gold Plated
7	LTB500B	Lamp Electrode Connector, Cathode, Gold Plated
9	RFT500	Rod Flow Tube
10	YR8155	YAG Rod 8mm Dia x 155m m Long, Unmounted
11	YRA500	YAG Rod Assembly, Mounted
