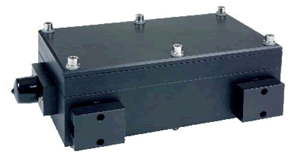

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA8183/C



Laser Systems:

Lee Laser Model  818TQ, Sahajanand Lasers



Description:
Single-Lamp Pumped Solid-State Laser Chamber used for diamond processing.





FREQUENTLY USED CONSUMABLES

Item Part Number

Description

D700

DI Cartridge

MR3M100RHC

Rear Mirror HR

MR3M80RHC

Front Mirror 80%



ASSEMBLIES

Item Part Number

Laser Rail

BA818

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA8183

Head Block Assembly, Complete (Less Carriage), 3mm Rod, TEMoo

STBA8183/C

Complete Head Block Assembly, 3mm Rod, TEMoo

GC818

Gold Cavity Assembly, Complete (Less Teflon Light Shields)

GCA818

Gold Cavity Assembly, Complete (Includes Teflon Light Shields)

HBA818

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK8183

O-Ring Kit, 3mm Rod

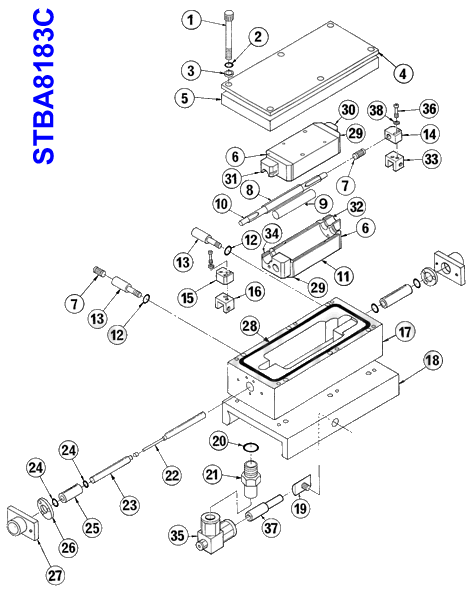

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

6

CEP818L

Cavity End Plate Left, Gold Plated

29

CEP818R

Cavity End Plate, Right, Gold Plated

19

CLA708

Carriage Locking Assembly

27

DB818

Dust Boot

4

FIN818

Heat Sink, Aluminium

11

GCE718

Cavity Ellipse, Gold Plated

2

H2

Stainless Steel Washer

3

H4

Nylon Washer

38

H79

Stainless Steel Spilt Washer

1

HB708

Head Bolt, Stainless Steel

13

HVP818

High Voltage Pin

7

LC708

Lamp Contact Band, Gold

15

LCB818L

Lamp Contact Block, Left

14

LCB818R

Lamp Contact Block, Right

8

LFT718

Lamp Flow Tube

17

LHB818

Lower Head Block

18

LHC818

Lower Head Carriage

10

ST5028

Krypton Arc Lamp, 30 Amps

36

LMBS555

Lamp Mounting Block Screw

32

LS708L

Teflon Light Shield, Lower

30

LS708U

Teflon Light Shield, Upper

16

LTB818L

Lamp Terminal Block, Left

33

LTB818R

Lamp Terminal Block, Right

12

ORK818

O-Ring (Included in Kit)

24

ORK818

O-Ring (Included in Kit)

28

ORK818

O-Ring (Included in Kit)

20

ORK818

O-Ring (Included in Kit)

26

REC818

Rod End Cap

9

RFT818

Rod Flow Tube, Doped

25

RG818

Rod Guide

34

TLS718L

Teflon Light Shield, Lower

31

TLS718U

Teflon Light Shield, Upper

5

UHB818

Upper Head Block

37

WF022

Water Fitting Reducer, �� O.D.

21

WFO49

Water Fitting 5/8" O.D., Stainless Steel

22

YR1173B

YAG Rod, 3mm Dia., Unmounted, TEMoo

23

YRA818

YAG Rod Assembly, Mounted, TEMoo

35

WF016

Elbow Fitting 5/8" Nylon, Q-Switch



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
