Laser Systems:
Lee Laser Model 712; Chicago Laser CLS39; CLS977; CLS907;
CLS960; Spectra Physics
Description:

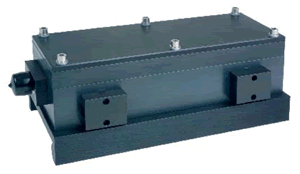

Single-Lamp Pumped Solid-State Laser Chamber used for precision marking
& engraving applications.
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D700 |
DI Cartridge |
|
D8832 (Chicago Laser) |
DI Cartridge |
|
LFT708 |
Lamp Flow Tube |
|
ST4462S |
Lamp, 30Amp |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M90RHC |
Front Mirror 90% |
|
RFT712 |
Rod Flow Tube |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA712 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBA712 |
Head Block Assembly, Complete (Less Carriage) |
|
STBA712/C |
Complete Head Block Assembly |
|
GC708 |
Gold Cavity Assembly, Complete (Less Teflon Light
Shields) |
|
GCA712 |
Gold Cavity Assembly, Complete (Includes Teflon
Light Shields) |
|
HBA712 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORK712 |
O-Ring Kit |

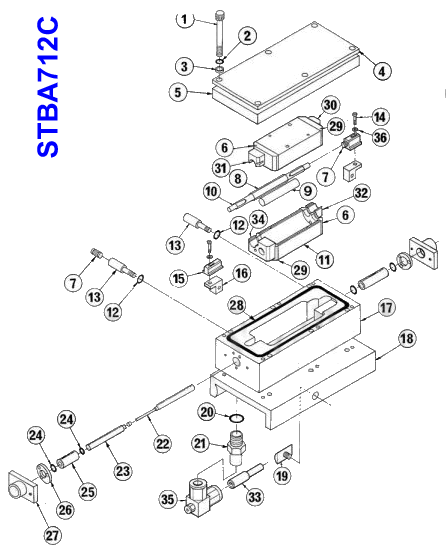

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
6 |
CEP708L |
Cavity End Plate, Left, Gold |
|
29 |
CEP708R |
Cavity End Plate, Right, Gold |
|
19 |
CLA500 |
Carriage Locking Assembly |
|
27 |
DB708 |
Dust Boot |
|
4 |
FIN708 |
Heat Sink, Aluminium |
|
11 |
GCE708 |
Cavity Ellipse, Gold |
|
2 |
H2 |
Stainless Steel Washer |
|
3 |
H4 |
Nylon Washer |
|
36 |
H79 |
Stainless Steel Spilt Washer |
|
1 |
HB708 |
Head Bolt, Stainless Steel |
|
13 |
HVP708 |
High Voltage Pin |
|
7 |
LC708 |
Lamp Contact Band, Gold |
|
15 |
LCB708 |
Lamp Contact Block |
|
8 |
LFT708 |
Lamp Flow Tube |
|
17 |
LHB712 |
Lower Head Block |
|
18 |
LHC708 |
Lower Head Carriage |
|
10 |
ST4462S |
Krypton Arc Lamp, 30 Amps |
|
14 |
LMBS555 |
Lamp, Mounting Block, Screw |
|
32 |
LS708L |
Telfon Light Shield, Lower (Sold as TLS708KIT) |
|
30 |
LS708U |
Teflon Light Shield, Upper (Sold as TLS708KIT) |
|
16 |
LTB708 |
Lamp Terminal Block |
|
12 |
ORK712 |
O-Rings (Included in Kit) |
|
28 |
ORK712 |
O-Ring (Included in Kit) |
|
24 |
ORK712 |
O-Ring (Included in Kit) |
|
20 |
ORK712 |
O-Ring (Included in Kit) |
|
26 |
REC708 |
Rod End Cap |
|
9 |
RFT712 |
Rod Flow Tube, Doped |
|
25 |
RG708 |
Rod Guide |
|
34 |
TLS718L |
Teflon Light Shield, Lower (Sold as TLS718KIT) |
|
31 |
TLS718U |
Teflon Light Shield, Upper (Sold as TLS718KIT) |
|
5 |
UHB708 |
Upper Head Block |
|
35 |
WF016/2 |
Elbow Fitting 5/8" Nylon, Q-Switch Barb |
|
33 |
WF022 |
Water Fitting, Reducer 1/2" O.D |
|
21 |
WF049 |
Water Fitting 5/8" O.D., Stainless Steel |
|
22 |
YR258 |
YAG Rod, 4mm Dia., Unmounted |
|
23 |
YRA712 |
YAG Rod Assembly, Mounted |
|
