Laser Systems:
Control Laser 620
Description:

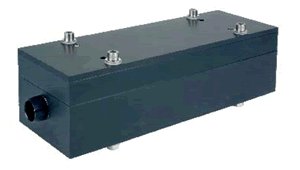

Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming,
wafer marking & diamond processing � 18 Watts TEMoo
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D8822 |
DI Cartridge |
|
LFT258X |
Lamp Flow Tube |
|
ST520S |
Lamp, 40Amp |
|
LVB612 |
Lamp V-Block |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M80RHC |
Front Mirror 80% R |
|
MR3M90RHC |
Front Mirror 90% R |
|
PF10 |
Particle Filter |
|
RFT258 |
Rod Flow Tube |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA620 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBA620 |
Head Block Assembly, Complete (Less Carriage) |
|
STBA620/C |
Complete Head Block Assembly |
|
GC258 |
Gold Cavity Assembly, Complete |
|
HBA620 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORK620 |
O-Ring Kit |

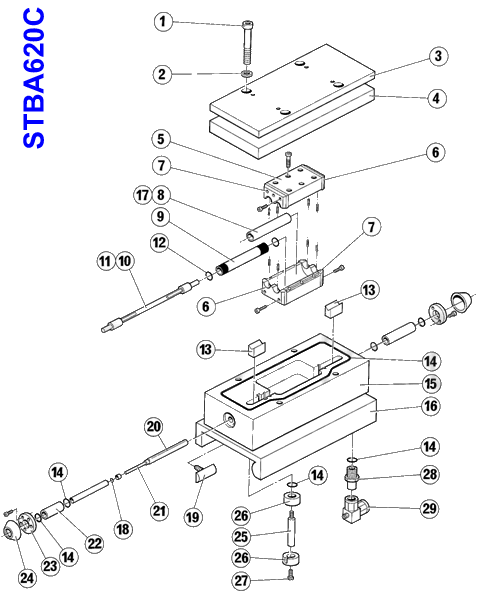

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
18 |
ORT3MM |
O-Ring, 3mm, Teflon |
|
23 |
REC510 |
Rod End Cap |
|
8 |
RFT258 |
Rod Flow Tube |
|
17 |
RFT258C |
Rod Flow Tube, Doped |
|
22 |
RG510 |
Rod Guide |
|
27 |
SNY632 |
Nylon Screw, 6-32 x 1/4" |
|
4 |
UHB620 |
Upper Head Block |
|
28 |
WF013 |
Water Fitting, 3/4 - 16 x 5/8" |
|
29 |
WF016 |
Water Fitting, Head Block & Stainless Steel
Q-Switch |
|
21 |
YR258 |
YAG Rod, Crystal Only, 3mm Rod, TEMoo |
|
20 |
YRA620 |
YAG Rod Assembly, Mounted, TEMoo |
|
7 |
CEP258L |
Cavity End Plate, Left, Gold Plated |
|
6 |
CEP258R |
Cavity End Plate, Right, Gold Plated |
|
19 |
CLA500 |
Carriage Locking Assembly |
|
24 |
DB510 |
Dust Boot |
|
3 |
FIN512 |
Heat Sink, Aluminium |
|
5 |
GCE258 |
Cavity Ellipse, Gold Plated |
|
1 |
HB612 |
Head Bolt, Stainless Steel |
|
2 |
HBW510 |
Head Bolt Washer, Nylon |
|
26 |
HVI510 |
High Voltage Insulators (2 pces) |
|
25 |
HVP510 |
High Voltage Pin |
|
31 |
LC510 |
Lamp Retaining Clip, Gold - Not Shown |
|
30 |
LCA512 |
Lamp Clamp - Not Shown |
|
9 |
LFT258X |
Lamp Flow Tube |
|
15 |
LHB620 |
Lower Head Block |
|
16 |
LHC612 |
Lower Head Carriage |
|
10 |
ST520S |
Krypton Arc Lamp, 40 Amps (Standard) |
|
32 |
STF620 |
Lamp Lifter - Not Shown |
|
13 |
LVB612 |
Lamp V-Block |
|
12 |
ORK620 |
O-Ring, Silicone (Included in Kit) |
|
14 |
ORK620 |
O-Ring, Silicone (Included in Kit) |
|
