         List of Products             Lamp Pumped Laser Head (Pump Chamber): STBA600/C



Laser Systems:

Baasel Lasertechnik 600, 601, 612, 615; AB Lasers; M. Pfaffen DS-5000, Zanaboni 60 to 80 Watts Multimode

Description:
Single-Lamp Pumped Solid-State Laser Chamber used for precision marking & engraving applications.







FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LFT512

Lamp Flow Tube

ST512AS

Lamp, 20 Amps

ST601LL Long Life

Lamp 30 Amps

ST601S

Lamp 30 Amps

MR3M100RHC

Rear Mirror HR

MR3M80R1MCXHC

Front Mirror 80%

RFT512C

Rod Flow Tube



ASSAMBLIES

Item Part Number

Laser Rail

BA600

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA600

Head Block Assembly, Complete (Less Carriage)

STBA600/C

Complete Head Block Assembly

GC600

Gold Cavity Assembly, Complete

HBA600

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK600

O-Ring Kit

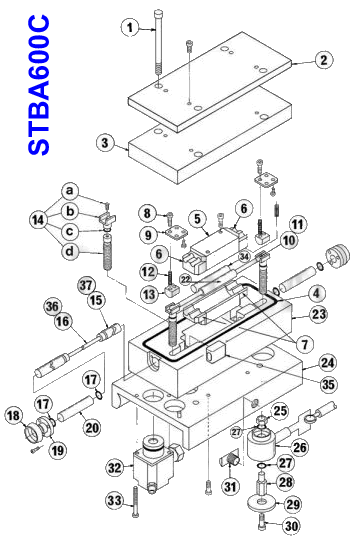

LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

7

CEP600L

Cavity End Plate, Lower

6

CEP600U

Cavity End Plate,Upper

31

CLA600

Carriage Clamp Assembly

18

DB600

Dust Boot

2

FIN6000

Heat Sink, Aluminium

5

GCE600

Cavity Ellipse, Gold Plated

25

H113

M10 Nylon Nut

33

H26

M4 x 50 Stainless Steel Screw

14a

H41A

M3 x 6 Machined Head Screws

27

H7

M5 Stainless Steel Washer

1

HB600

Head Bolt, Stainless Steel

29

HVI600

High Voltage Insulators

26

HVI600

High Voltage Insulators

30

HVP600

High Voltage Pin

28

HVP600

High Voltage Pin

12

LCA600

Lamp Clamp Assembly, Gold Plated

8

LCA600

Lamp Clamp Assembly, Gold Plated

13

LCA600

Lamp Clamp Assembly, Gold Plated

9

LCA600

Lamp Clamp Assembly, Gold Plated

22

LFT512

Lamp Flow Tube

23

LHB600

Lower Head Block

24

LHC600

Lower Head Carriage

11

ST512AS

Krypton Arc Lamp, 20A, Ball Connector, 80750-005

10

ST601S

Krypton Arc Lamp 30A, Ball Connector, 80750-006

14

LTB600

Lamp terminal Block Assembly, Gold Plated

14d

LTP600

Lamp Terminal Post, Gold Plated

14b

LVB600

Lamp V-Block, Gold Plated

17

ORK600

O-Ring (Included in Kit)

14c

ORK600

O-Ring (Included in Kit)

4

ORK600

O-Rings (Included in Kit)

21

ORK600

O-Ring (Included in Kit)

19

REC600

Rod End Cap

34

RFT512C

Rod Flow Tube, Doped

20

RG510

Rod Guide

35

TLS600

Teflon Light Shield

3

UHB600

Upper Head Block

32

WF032

Water Fitting, Head Block & Q-Switch

16

YR479

YAG Rod, 4mm Dia, Multimode

36

YR512

YAG Rod, 4mm Dia, TEMoo

15

YRA6479

YAG Rod Assembly, Mounted, Multimode

37

YRA6512

YAG Rod Assembly, Mounted, TEMoo



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
