Laser Systems:
ESI 44, 80, 4000A, 4200, 2000, 3570, 3571, 3572, Spectra
Physics 3000 (New Style Head Block for use with short head bolts)
Description:

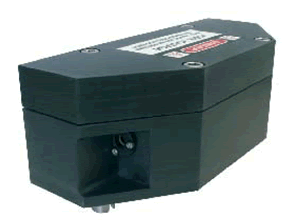

Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming &
precision marking applications � 15 Watts TEMoo
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D8822 |
DI Cartridge |
|
LC570 |
Lamp Clip, Gold |
|
LFT570 |
Lamp & Rod Flow Tube |
|
ST570S |
Lamp |
|
MR3M100R2MCXHC |
Rear Mirror, HR, 2MCX |
|
MR3M100RHC |
Rear Mirror, HR |
|
MR3M80C75HC |
Front Mirror, 80% R, 1MCC |
|
MR3M80RHC |
Front Mirror, 80% R |
|
PF10/20 |
Particle Filter, 10� |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA571 |
Head Block Assembly (Less Cavity, YAG Rod & Lamp) |
|
STBA571 |
Complete Head Block Assembly, TEMoo |
|
GC570 |
Gold Cavity Assembly, Complete |
|
HBA571 |
Head Block Assembly (Less YAG Rod & Lamp) |
|
ORK570 |
O-Ring Kit |

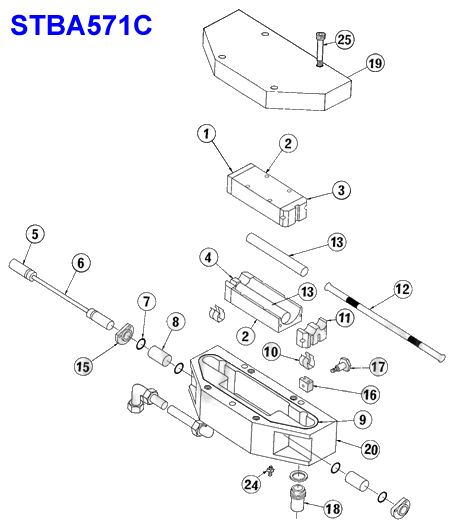

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
11 |
CEP570L |
Lower Cavity Plate, Left, Gold Plated |
|
1 |
CEP570L |
Upper Cavity Plate, Left, Gold Plated |
|
4 |
CEP570R |
Lower Cavity Platt, Right, Gold Plated |
|
3 |
CEP570R |
Upper Cavity Plate, Right, Gold Plated |
|
2 |
GCE570 |
Gold Cavity Ellipse, Gold Plated |
|
25 |
HB571 |
Head Bolt Short, 5/16 - 18 x 1.25� |
|
17 |
HVP570 |
High Voltage Pin |
|
10 |
LC570 |
Lamp Clip |
|
13 |
LFT570 |
Lamp and Rod Flow Tube |
|
20 |
LHB571 |
New Style Headd Block Threaded for Short Head
Bolts |
|
12 |
ST570S |
Krypton Arc Lamp |
|
16 |
LTB570 |
Lamp Terminal Block |
|
9 |
ORK570 |
O-Ring, Silicone (Included in Kit) |
|
7 |
ORK570 |
O-Ring, Silicone (Included in Kit) |
|
1s |
REC570 |
Rod End Cap |
|
8 |
RG570 |
Rod Guide |
|
19 |
UHB570 |
Upper Head Block |
|
18 |
WF018 |
Water Fitting, Stainless Steel |
|
24 |
WF024 |
Miniature Q-Switch Water Fitting |
|
6 |
YR259 |
YAG Rod, 3mm Dia, TEMoo |
|
5 |
YRA570 |
YAG Rod Assembly, 3mm Dia Rod, TEMoo |
|
