Laser Systems:
Holobeam 255, Control 510, 511, ESI 25, 44, Teradyne
W311, Chicago Laser CLS510, Laser Applications, Quantrad, JEC
Description:

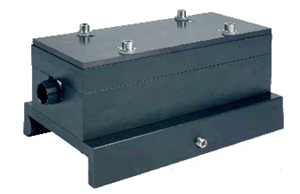

Single-Lamp Pumped Solid-State Laser Chamber used for laser trimming &
marking applications � 30 Watts
FREQUENTLY USED CONSUMABLES
|
Item Part Number |
Description |
|
D8822 |
D.I. Cartridge |
|
LC510 |
Lamp Clip, Gold |
|
LFT510 |
Lamp & Rod Flow Tube |
|
ST510S |
Lamp, 20Amp |
|
MR3M100RHC |
Rear Mirror HR |
|
MR3M90RHC |
Front Mirror 90% R |
|
PF10 |
Particle Filter |
ASSAMBLIES
|
Item Part Number |
Laser Rail |
|
BA510 |
Head Block Assembly (Less Cavity, YAG Rod, Lamp &
Carriage) |
|
STBA510 |
Head Block Assembly, Complete (Less Carriage) |
|
STBA510/C |
Complete Head Block Assembly |
|
GC510 |
Gold Cavity Assembly, Complete |
|
HBA510 |
Head Block Assembly (Less YAG Rod, Lamp &
Carriage) |
|
ORK510 |
O-Ring Kit |

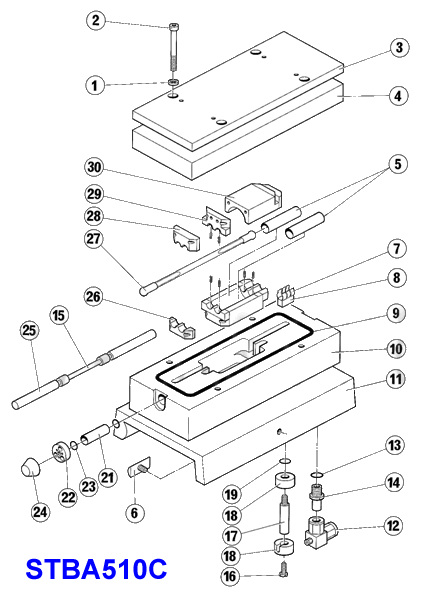

LASER HEADS COMPONENTS
|
Reference |
Item Part Number |
Laser Rail |
|
29 |
CEP510 |
Cavity End Plate, Gold Plated |
|
6 |
CLA500 |
Carriage Locking Assembly |
|
24 |
DB510 |
Dust Boot |
|
3 |
FIN510 |
Heat Sink, Aluminium |
|
30 |
GCE510 |
Cavity Ellipse, Gold Plated |
|
2 |
HB510 |
Head Bolt,Stainless Steel |
|
1 |
HBW510 |
Head Bolt Washer, Nylon |
|
18 |
HVI510 |
High Voltage Insulator (2 pces) |
|
17 |
HVP510 |
High Voltage Pin |
|
7 |
LC510 |
Lamp Clip, Gold Plated |
|
5 |
LFT510 |
Lamp and Rod Flow Tube |
|
10 |
LHB510 |
Lower Head Block |
|
11 |
LHC510 |
Head Carriage |
|
27 |
ST510S |
Krypton Arc Lamp, 20 Amps |
|
26 |
LSP510 |
Lower Light Shield, Stainless Steel |
|
8 |
LTB510 |
Lamp Terminal Block |
|
19 |
ORK510 |
O-Ring, Silicone (included in Kit) |
|
13 |
ORK510 |
O-Ring (Included in Kit) |
|
23 |
ORK510 |
O-Ring, Silicone (Included in Kit) |
|
9 |
ORK510 |
O-Ring, Silicone (Included in Kit) |
|
22 |
REC510 |
Rod End Cap |
|
21 |
RG510 |
Rod Guide |
|
16 |
SNY632 |
Nylon Screw, 6-32 x 1/41, |
|
4 |
UHB510 |
Upper Head Block |
|
28 |
USP510 |
Upper Light Shield, Stainless Steel |
|
12 |
WF016 |
Water Fitting, Head Block & Q-Switch |
|
14 |
WFO13 |
Water Fitting, 3/4 - 16 x 5/8", Stainless Steel |
|
15 |
YR510 |
YAG Rod, 4mm Dia, Unmounted |
|
25 |
YRA510 |
YAG Rod Assembly, Mounted |
|
