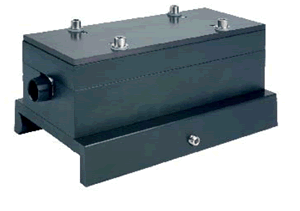

         List of Products             Lamp Pumped Laser Head (Pump Chamber) STBA1200/C





Laser Systems:

T.L.T. 1200, 1400 � 15 Watts TEMoo



Description:
Single-Lamp Pumped Solid-State Laser Chamber used for processing diamonds









FREQUENTLY USED CONSUMABLES

Item Part Number

Description

LC510

Lamp Clip, Gold

LFT512

Lamp Flow Tube

ST601LL

Lamp 30Amp Long Life

ST601S

Lamp, 30Amp

MR3M100RHC

Rear Mirror, HR

MR3M80RHC

Front Mirror, 80% R

RFT512C

Rod Flow Tube, Doped



ASSAMBLIES

Item Part Number

Laser Rail

BA512

Head Block Assembly (Less Cavity, YAG Rod, Lamp & Carriage)

STBA1200

Head Block Assembly, Complete, TEMoo (Less Carriage)

STBA1200/C

Complete Head Block Assembly, TEMoo

GC512

Gold Cavity Assembly, Complete

HBA512

Head Block Assembly (Less YAG Rod, Lamp & Carriage)

ORK512

O-Ring Kit



LASER HEADS COMPONENTS

Reference

Item Part Number

Laser Rail

23

ORK512

O-Ring, Silicone (Included in Kit)

9

ORK512

O-Ring, Silicone (Included in Kit)

22

REC510

Rod End Cap

20

RFT512C

Rod Flow Tube, Doped

21

RG510

Rod Guide

16

SNY632

Nylon Screw, 6-32x 1/4"

4

UHB512

Upper Head Block

28

USP510

Upper Light Shield, Stainless Steel

14

WF013

Water Fitting, 3/4 - 16 x 5/8" Stainless Steel

12

WF016

Water Fitting, Head Block & Q-Switch

15

YR512

YAG Rod, 4mm Dia, Unmounted, TEMoo

25

YRA512

YAG Rod Assembly, Mounted, TEMoo

29

CEP510

Cavity End Plate, Gold Plated

6

CLA500

Carriage Locking Assembly

24

DB510

Dust Boot

3

FIN512

Heat Sink, Aluminium

30

GCE512

Cavity Ellipse, Gold Plated

2

HB510

Head Bolt, Stainless Steel

1

HBW510

Head Bolt Washer, Nylon

18

HVI510

High Voltage Insulator (2 pces)

17

HVP510

High Voltage Pin

7

LC510

Lamp Clip, Gold Plated

5

LFT512

Lamp and Rod Flow Tube

10

LHB5I2

Lower Head Block

11

LHC512

Head Carriage

27

ST601S

Krypton Arc Lamp (20 Amps 145-155V)

26

LSP510

Lower Light Shield, Stainless Steel

8

LTB510

Lamp Terminal Block

19

ORK512

O-Ring, Silicone (Included in Kit)

13

ORK512

O-Ring, Silicone (Included in Kit)

19

ORK512

O-Ring, Silicone (Included in Kit)

23

ORK512

O-Ring, Silicone (Included in Kit)



  Lamp-pumped Laser Heads (Pump Chamber)   Download "Detailed Lamp-pumped Laser Heads" (PDF)
