SNLT OPO laser is a new kind of compact nanosecond Optical Parametric
Oscillator; it features excellent beam quality in widely tunable infrared
spectral range and is thereby suited for various F&E applications. This laser
can be used as Q-CW laser source as well as for time-resolved measurements.
Features:
· Computer
controlled tuning / Operation via LAN
· Power
monitoring
· Wide
tuning range
· Single
shot capability
· External
trigger
· Excellent
beam quality
· Green
pilot beam
· Wavelength
monitoring port (Sum frequency in the visible range)
Specifications:
|
Tuning range |
1.45 -1.96 µm (Signal) and 2.3 - 4.2 µm (Idler) |
|
Spectral resolution |
1 nm |
|
Pulse duration |
< 1.5 ns |
|
Repetition rate |
single shot1) ... 20 kHz |
|
Trigger |
internal or external (TTL), single shot ... 20 kHz |
|
Trigger output |
TTL (when internally triggered) |
|
Average output power @ 20kHz |
Signal |
Idler |
|
1450 ... 1515 nm > 10 mW |
2300 ... 2700 nm > 20 mW |
|
1515 ... 1960 nm > 40 mW |
2700 ... 3500 nm > 5 mW |
|
|
3500 ... 4200 nm > 0.5 mW |
|
Pulse energy @ 20 kHz |
> 3.5 µJ @ 1750 nm (Signal) |
> 2.5 µJ @ 2320 nm (Idler) |
|
Power input |
12 V DC, 100 W | 100 ... 240 V AC, 50 ...60 Hz external
adapter included |
Compatibility of
the Control Software with Windows 8 operating system is being tested.
1) Pulse energy may
vary at repetition rates < 8 kHz, but is constant at one chosen repetition rate.

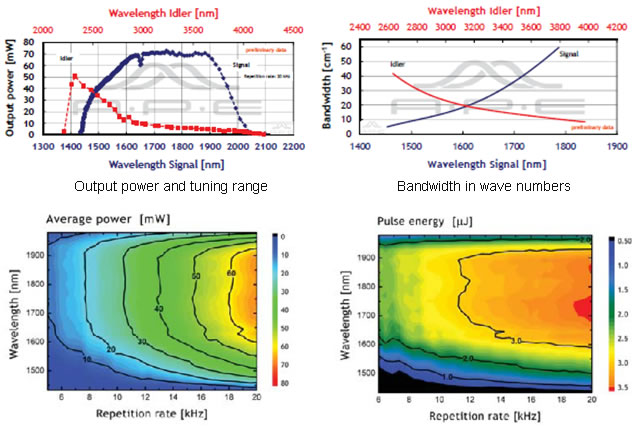

Plots:

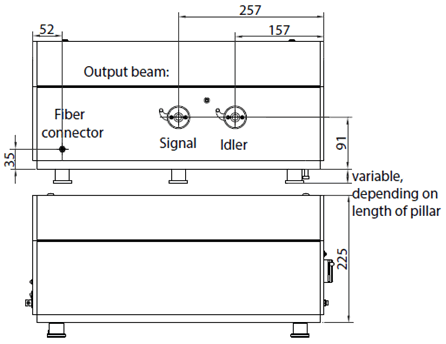

Dimensions (mm):
