For
lamp-pumped Nd:YAG lasers and diode-pumped Nd:YAG lasers |
|
|
|
Based on
our years experience on lasers, we can provide the OEM laser makers with
all laser parts in the diode- or lamp-pumped Nd:YAG laser parts. We also
supply you with all mechanical parts in the laser heads. The laser base,
carrier and cover are made of aluminum via injection mold. They are
precise, reliable and repeatable. |
|
|
|
1. Full Parts for Lamp-pumped Nd:YAG Lasers |
|
|
|
Including laser head, CW or pulsed lamp driver (power supply), chiller and
Q-switch driver. |
 |
|
|
|
(1)
Laser Head
Including pump chamber including YAG rod and lamp,
resonator optics including output coupler and reflective mirror,
Q-switch, aperture, beam expander and mechanical
parts including laser base, carrier, cover, front plate and rear plate. |
|
|
 |
|
|
 |
Pump chamber module
l
pump chamber (gold-coated
reflector or ceramic reflector)
l
laser lamp (Kr or Xe)
l
YAG rod
l
carrier & fixture
|
 |
Resonator modules
including output mirror module and rear mirror module
l
output coupler (or rear mirror)
l
mirror mount
l
carrier & fixture
Remark: prepared for default mirror dimension of D20x5mm. Other
available upon request. |
 |
Q-switch module
l
Q-switch
l
Q-switch base
l
Carrier & fixture |
 |
Aperture module
l
Aperture
l
aperture mount,
l
carrier & fixture.
Remark: default aperture diameter is 1.5mm.
Others available upon request. |
 |
Beam expander module
l
Beam expander
l
beam expander mount
l
carrier & fixture. |
 |
Mechanical parts
l
carrier & fixture |
 |
Mechanical parts
l

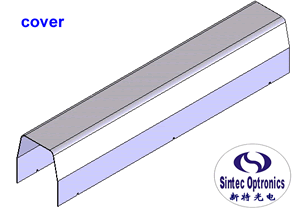

cover
The length depends on the
customer requirement. |
 |
Mechanical parts
l
Laser base
l
front plate
l
rear plate
The length depends on the
customer requirement. |
|
|
(2) lamp driver
CW or pulsed lamp drivers (power supply), dual-lamp
drivers |
|
|
 |
 |
| CW Kr lamp driver (laser power
supply) |
Pulsed Xe lamp driver (laser
power supply) |
|
|
|
|
(3) Q-switch driver |
|
|
 |
 |
| QSD series (19"
panel) |
R390 series (OEM module) |
|
|
(4) Control cabinet
Used to
mount key board, Q-switch driver, computer, lamp driver (or diode
driver) and electrical controller. The electrical controller is used in
YAG laser markers.
|
|
2. Full Parts for Diode-pumped Nd:YAG Lasers |
|
|
|
Including
laser head (diode pump module, laser resonator, Q-switch cell), Q-switch
driver, diode driver and chiller. |
|
|
 |
|
|
|
(1) Laser Head
A laser head consists of laser base,
diode pump module,
output coupler and rear mirror, front plate, rear plate, and cover.
Options include aperture, AO Q-switch cell and beam expander. |
|
|
 |
|
|
 |
Diode pump module
l
diode module
including YAG rod
l
carrier & fixture |
|
|
Resonator modules
including output mirror module and rear mirror module
l
output coupler (or rear mirror)
l
mirror mount
l
carrier & fixture
Remark: prepared for default mirror dimension of D20x5mm. Other
available upon request. |
|
|
Q-switch module
l
Q-switch
l
Q-switch base
l
Carrier & fixture |
|
|
Aperture module
l
Aperture
l
aperture mount,
l
carrier & fixture.
|
|
|
Mechanical parts
l
carrier & fixture |
|
|
Beam expander module
l
Beam expander
l
beam expander mount
l
carrier & fixture.
|
|
|
Mechanical parts
l
cover |
|
|
Mechanical parts
l
Laser base
l
front plate
l
rear plate |
|
|
|
|
(2) Diode driver |
 |
|
|
|
(3) Q-switch driver |
|
|
|
| QSD series (19"
panel) |
N390 series (OEM module) |
|
|
(4) Control cabinet
Used to
mount key board, Q-switch driver, computer, lamp driver (or diode
driver) and electrical controller. The electrical controller is used in
YAG laser markers.
|
