         Products             Beam Splitters

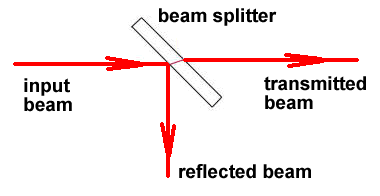

Beam splitters allow a beam to be split into two beams of differing power, however, the most popular power split is 50:50 at a 45� incidence angle. The polarization needs to be considered when specifying a beam splitter otherwise the reflected and transmitted beams will not have the correct power. We have developed a special 'polarization insensitive' coating which eliminates this problem for the 50:50 case.

  • Advanced in-house design

  • Up to 500W/cm2 power handling

  • High quality laser grade material

The following standard beam splitter are available..



Model

Material

Diameter

mm

ET

mm

Transmission

%

Reflectance

%

Coating

BS-10.6-10PIB3-45

ZnSe

25.4

3

50

50

AR/50%-PIB

BS-10.6-10ZPF3-50-P

ZnSe

25.4

3

50

50

AR/50%-45P

BS-10.6-10ZPF3-50-R

ZnSe

25.4

3

50

50

AR/50%-45R

BS-10.6-10ZPF3-50-S

ZnSe

25.4

3

50

50

AR/50%-45S

BS-10.6-10ZPF4-99-R

ZnSe

25.4

3

1

99

AR/99%-45R

BS-10.6-15PIB3-45

ZnSe

38.05

3

50

50

AR/50%-PIB

BS-10.6-15PIB4-45

ZnSe

38.05

4

50

50

AR/50%-PIB

BS-10.6-15ZPF3-10-R

ZnSe

38.05

3

90

10

AR/10%-45R

BS-10.6-15ZPF3-1-R

ZnSe

38.05

3

99

1

AR/1%-45R

BS-10.6-15ZPF3-50-P

ZnSe

38.05

3

50

50

AR/50%-45P

BS-10.6-15ZPF3-50-R

ZnSe

38.05

3

50

50

AR/50%-45R

BS-10.6-15ZPF3-50-S

ZnSe

38.05

3

50

50

AR/50%-45S

BS-10.6-15ZPF3-5-R

ZnSe

38.05

3

95

5

AR/5%-45R

BS-10.6-15ZPF4-50-R

ZnSe

38.05

4

50

50

AR/50%-45R

BS-10.6-15ZPF5-50-R

ZnSe

38.05

5

50

50

AR/50%-45R

BS-10.6-20PIB5-45

ZnSe

50.8

5

50

50

AR/50%-PIB

Remark:

1) The above items are flat/flat;

2) The angle of incidence is 45 degree;

3) The above items are polorisation-insensitive.



Model Number

Diameter

Thickness

Reflectance

Polarization

BS-10.6-BSZ-1012-50-P

1.000"

0.120"

50% �3%

P

BS-10.6-BSZ-1012-50-S

1.000"

0.120"

50% �3%

S

BS-10.6-BSZ-1012-50-U

1.000"

0.120"

50% �3%

U

BS-10.6-BSZ-1516-50-P

1.500"

0.160"

50% �3%

U

BS-10.6-BSZ-1516-50-S

1.500"

0.160"

50% �3%

S

BS-10.6-BSZ-1516-50-U

1.500"

0.160"

50% �3%

U

BS-10.6-BSZ-2020-50-P

2.000"

0.200"

50% �3%

P

BS-10.6-BSZ-2020-50-S

2.000"

0.200"

50% �3%

S

BS-10.6-BSZ-2020-50-U

2.000"

0.200"

50% �3%

U

Note: For "U" polarization: This is an unpolarized beamsplitter. It is not a polarization-insensitive beamsplitter.
