Model |
12038-3-TE |
12038-3-BR-TE |
|
Interactive Material |
SiO2 |
SiO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
1.06 μm |
Used for Various λ (Specifications shown for 1.06 μm |
|
Window Configuration |
AR "V" Coated |
Brewster |
|
Static Transmission |
>99 % |
>99
% |
|
Operating Frequency |
38 MHz + 150 KHz |
38
MHz + 182 KHz |
|
Mode spacing |
300 KHz Typical |
364
KHz Typical |
|
Mode Bandwidth -3dB |
10 KHz approximate |
10
KHz approximate |
|
Average Loss Modulation |
15 % minimum with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
10
% minimum with Linear Polarization Light, Perpendicular to
Acoustic Propagation |
|
Acoustic Aperture Size (in air) |
3 mm |
2
mm |
|
Deflection Angle |
6.75 mrad |
6.75 mrad @ 1.06 μm |
|
RF
Power Level |
<1.2 watt |
<1
watt |
|
Impedance |
50 ohms @ Resonant Frequency |
50
ohms @ Resonant Frequency |
|
VSWR |
<1.5:1 @ Resonant Frequency |
<1.5:1 @ Resonant Frequency |
|

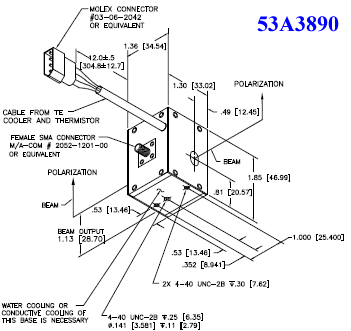

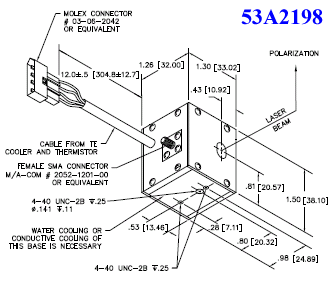

Package: |
53A2198
|
53A3890 |
|
Recommended Driver: |
11038-1ML |
11038-1ML |
|
Model |
12041-3-BR-TE |
12041-3-TE |
|
Interactive Material |
SiO2 |
SiO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
Used for Various λ Specification shown for 1.06
μm |
1.06 μm |
|
Window Configuration |
Brewster |
AR "V" Coated |
|
Static Transmission |
>99 % |
>99% |
|
Operating Frequency |
41 MHz + 182 KHz |
41 MHz + 150 KHz |
|
Mode spacing |
364 KHz Typical |
300 KHz Typical |
|
Mode Bandwidth -3dB |
|
10 KHz approximate |
|
Average Loss Modulation |
10 % minimum with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
15 % minimim with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
|
Acoustic Aperture Size (in air)
|
2 mm |
3 mm |
|
Deflection Angle |
7.3 mrad @ 1.06 μm |
7.3 mrad |
|
RF Power Level |
<1 watt |
<1.2 watt |
|
Impedance |
50 ohms @ Resonant Frequency |
50 ohms @ Resonant Frequency |
|
VSWR |
<1.5:1 @ Resonant Frequency |
<1.5:1 @ Resonant Frequency |
|
Package: |
53A3890 |
53A2198
|
|
Recommended Driver: |
11041-1ML |
11041-1ML |
|
Model |
12050-3-BR-TE |
12050-3-TE |
|
Interactive Material |
SiO2 |
SiO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
Used for Various λ Specifications shown for 1.06
μm |
1.06 μm |
|
Window Configuration |
Brewster |
AR "V" Coated |
|
Static Transmission |
>99 % |
>99% |
|
Operating Frequency |
50 MHz + 182 KHz |
50 MHz + 150 KHz |
|
Mode spacing |
364 KHz Typical |
300 KHz Typical |
|
Mode Bandwidth -3dB |
10 KHz approximate |
10 KHz approximate |
|
Average Loss Modulation |
6.5 % minimum with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
10 % minimum with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
|
Acoustic Aperture Size (in air)
|
2 mm |
3 mm |
|
Deflection Angle |
8.9 mrad @ 1.06 μm |
8.9 mrad |
|
RF Power Level |
<1 watt |
<1.2 watt |
|
Impedance |
50 ohms @ Resonant Frequency |
50 ohms @ Resonant Frequency |
|
VSWR |
<1.5:1 @ Resonant Frequency |
<1.5:1 @ Resonant Frequency |
|
Package: |
53A3890 |
53A2198
|
|
Recommended Driver: |
11050-1ML |
11050-1ML |
|
Model |
12080-3-BR-TE |
12080-3-TE |
|
Interactive Material |
SiO2 |
SiO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
Used for Various λ Specifications shown for 1.06
μm |
1.06 μm |
|
Window Configuration |
Brewster |
AR "V" Coated |
|
Static Transmission |
>99 % |
>99 % |
|
Operating Frequency |
80 MHz + 182 KHz |
80 MHz + 150 KHz |
|
Mode spacing |
364 KHz Typical |
300 KHz Typical |
|
Mode Bandwidth -3dB |
10 KHz approximate |
10 KHz approximate |
|
Average Loss Modulation |
6.5 % minimum with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
10 % minimum with Linear Polarized Light,
Perpendicular to Acoustic Propagation |
|
Acoustic Aperture Size (in air)
|
2 mm |
3 mm |
|
Deflection Angle |
14.2 mrad @ 1.06 μm |
14.2 mrad |
|
RF Power Level |
<1 watt |
<1.2 watt |
|
Impedance |
50 ohms @ Resonant Frequency |
50 ohms @ Resonant Frequency |
|
VSWR |
<1.5:1 @ Resonant Frequency |
<1.5:1 @ Resonant Frequency |
|
Package: |
53A3890 |
53A2198
|
|
Recommended Driver: |
11080-1ML |
11080-1ML |
|
Model |
13389-BR |
15180-1.06-LTD-GAP |
|
Interactive Material |
SiO2 |
GaP |
|
Acoustic Mode |
longitudinal |
Longitudinal |
|
Operating Wavelength |
Used for Various λ Specifications shown for 633
nm |
1.06 μm |
|
Window Configuration |
Brewster, λ/10 over acoustic aperture
|
AR �V� coated |
|
Static Transmission |
>99 % |
>90% |
|
Operating Frequency |
389 MHz |
180 MHz |
|
Diffraction Efficiency |
>5.5 % @ 500 mW |
>70% |
|
Light Polarization |
Linear, Perpendicular to Acoustic Propagation
|
Linear, horizontal |
|
Acoustic Aperture Size |
60 μm in air |
300 μm |
|
Rise Time |
<6 ns |
10 nsec* |
|
Optical Waist Size to achieve Rise Time
|
44 μm |
100 microns |
|
Deflection Angle |
41 mrad @ 633 nm |
28.7 mrads |
|
RF Power Level Average |
500 mW |
1.7 Watts |
|
RF Power Level Peak |
10 Watts peak, 5 % duty cycle with 10 ns pulse |
|
|
Impedance |
50 Ohms |
50 Ohms nominal |
|
VSWR |
<1.5:1 @ 389MHz, <6:1 @ 299, 479 MHz
|
<1.5:1 at 180 MHz |
|

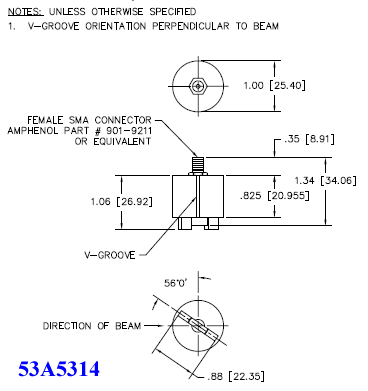

Package: |
53A5314
|
53B0624 |
|
Recommended Drivers: |
64389-SYN-9.5-X |
|
|
Model |
15200-.2-1.55-LTD-GaP-FO |
|
Interaction Material |
GaP |
|
Acoustic Mode |
Longitudinal |
|
Operating Wavelength |
1.55 μm |
|
Operating Frequency |
200 MHz |
|
Thruput Loss |
< 3.5 db** |
|
Contrast Ratio |
35 db min |
|
Light Polarization |
Linear |
|
Rise/fall Time |
10 ns* |
|
RF Power Level |
< 2 watts |
|
Impedance |
50 Ohms nominal |
|
VSWR |
<1.5:1 @ 200 MHz |
|

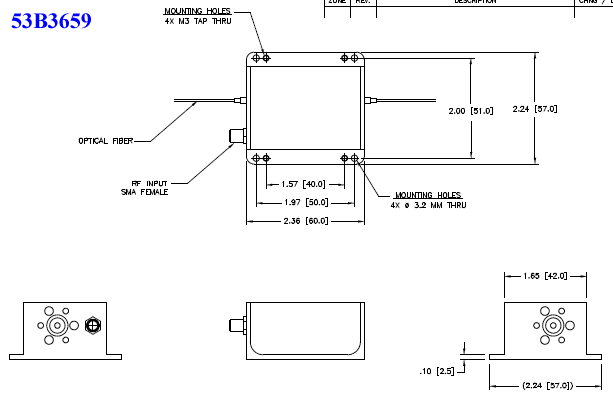

Package |
53B3659
|
|
Fiber Type |
8/125, polarization maintaining fiber, 1 meter
long |
|
Fiber connector type |
FC/PC, FC/APC or other optional connector
|
|
Recommended Drivers: |
Analog Driver Module: 21200-2AM
Analog Driver System: 21200-2AS
Digital Driver Module: 21200-2DM
Digital Driver System: 21200-2DS |
|
Model |
15210 |
15210-FOA / 71002 |
15210-FOA |
|
Interactive Material |
TeO2 |
TeO2 |
TeO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
440 � 850 nm |
440 � 850 nm |
440 � 850 nm |
|
Window Configuration |
AR Coated |
AR Coated |
AR Coated |
|
Static Transmission |
> 95 % |
>95 % |
>95 % |
|
Operating Frequency |
210 MHz |
210 MHz |
210 MHz |
|
Diffraction Efficiency |
> 70 % @ 633 nm with Linear, Polarization
Perpendicular to Acoustic Propagation or with Random
Polarization |
>70 % @ 633 nm with Linear, Polarization
Perpendicular to Acoustic Propagation or with Random
Polarization |
>70 % @ 633 nm with Linear, Polarization
Perpendicular to Acoustic Propagation or with Random
Polarization |
|
Acoustic Aperture Size |
0.2 mm |
0.2 mm |
0.2 mm |
|
Rise Time |
< 10 nsec |
<10 nsec |
< 10 nsec |
|
Optical Waist Size to achieve Rise Time
|
55 μm |
55 _m |
55 _m |
|
Deflection Angle |
31 mrad @ 633 nm |
31 mrad @ 633 nm |
31 mrad @ 633 nm |
|
RF Power Level |
< 1 Watt |
< 1 Watt |
< 1 Watt |
|
Impedance |
50 Ohms nominal |
50 Ohms nominal |
50 Ohms nominal |
|
VSWR |
< 1.5:1 @ 210 MHz |
< 1.5:1 @ 210 MHz |
<1.5:1 @ 210 MHz |
|

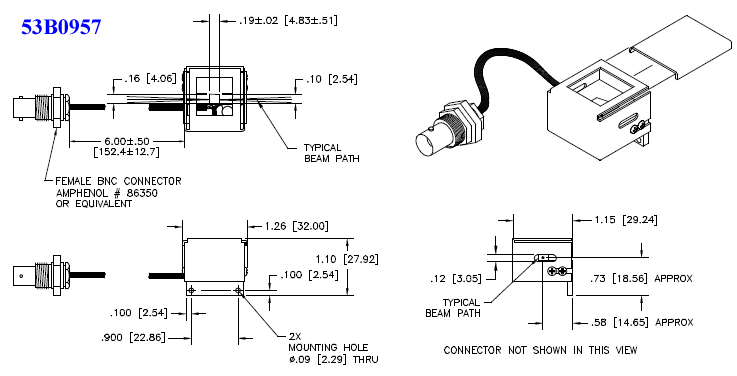

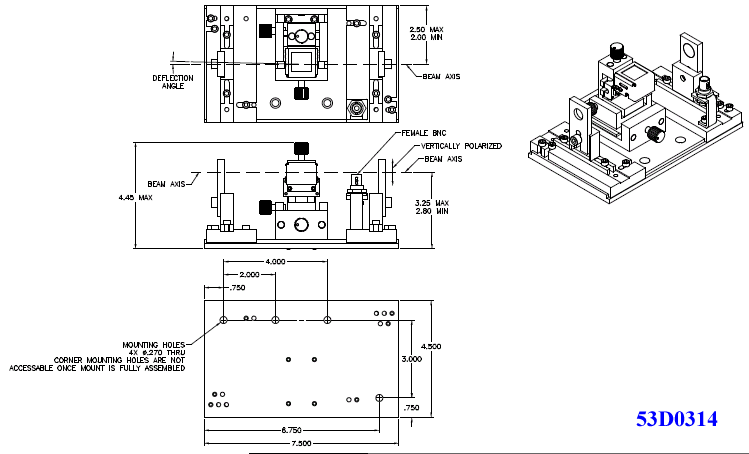

Package: |
53B0504
|
53D0314
|
53B0957
|
|
Recommended Drivers: |
Analog Driver System: 21210-1AS
Analog Driver Module: 21210-1AM
Digital Driver System: 21210-1DS
Digital Driver Module: 21210-1DM |
|
Model |
15260 |
15260-FOA/71002 |
15260-FOA |
|
Interactive Material |
TeO2 |
TeO2 |
TeO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
440 � 850 nm |
440 � 850 nm |
440 � 850 nm |
|
Window Configuration |
AR Coated |
AR Coated |
AR Coated |
|
Static Transmission |
>95 % |
>95 % |
>95 % |
|
Operating Frequency |
260 MHz |
260 MHz |
260 MHz |
|
Diffraction Efficiency |
>70 % @ 633nm with Linear, Polarization
Perpendicular to Acoustic Propagation or with Random
Polarization |
>70 % @ 633 nm with Linear, Polarization
Perpendicular to Acoustic Propagation or with Random
Polarization |
>70 % @ 633 nm with Linear, Polarization
Perpendicular to Acoustic Propagation or with Random
Polarization |
|
Acoustic Aperture Size |
0.2 mm |
0.2 mm |
0.2 mm |
|
Rise Time |
<10 ns |
<10 nsec |
<10 nsec |
|
Optical Waist Size to achieve Rise Time
|
55 um |
0.055 mm |
55 um |
|
Deflection Angle |
39 mrad @ 633nm |
39 mrad @ 633 nm |
39 mrad @ 633 nm |
|
RF Power Level |
700 mW |
< 1 Watt |
< 1 Watt |
|
Impedance |
50 Ohms nominal |
50 Ohms nominal |
50 Ohms nominal |
|
VSWR |
1.5:1 @ 260MHz |
1.5:1 @ 260 MHz |
1.5:1 @ 260 MHz |
|
Package: |
53B0504
|
53D0314
|
|
|
FOA Modulator Package: |
|
53B0957
|
53B0957
|
|
Recommended Drivers: |
21260-.7AS
21260-.7AM
21260-.7DS
21260-.7DM |
Analog Driver System: 21260-1AS
Analog Driver Module: 21260-1AM
Digital Driver System: 21260-1DS
Digital Driver Module: 21260-1DM |
|
Model |
17389-1.06-LTD-GaP |
17389-.93 |
17389-.93-FOA |
|
Interaction Material |
GaP |
TeO2 |
TeO2 |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
1.06 μm |
700 �1064 nm |
700 �1064 nm |
|
Window Configuration |
AR �V� coating |
AR Coated |
AR Coated |
|
Static Transmission |
>90% |
>95 % |
>95% |
|
Operating Frequency |
389 MHz |
389 MHz |
389 MHz |
|
Diffraction Efficiency |
56% minimum with linear polarized light parallel
to acoustic propagation |
>70 % @ 800 nm with Linear, Polarization
Perpendicular to Acoustic Propagation.
>60 % @ 800 nm with Random Polarization.
|
>70% @ 800 nm with Linear, Polarization
Perpendicular to Acoustic Propagation
>60% @ 800 nm with Random Polarizatio |
|
Acoustic Aperture Size (in air)
|
150 μm |
70 um |
70 um |
|
Rise Time |
4 nsec minimum |
<7 nsec |
<7 nsec |
|
Extinction Ratio * |
>20dB for neighboring pulses, >27dB for
subsequent pulses @ <80MHz pulse rep rate |
>20dB for neighboring pulses, >27dB for
subsequent pulses @ <80MHz pulse rep rate |
>20dB for neighboring pulses,
>27dB for subsequent pulses
@ <80MHz pulse rep rate |
|
Optical Waist Size To Achieve Rise Time
|
40 μm |
35 um |
35um |
|
Deflection Angle |
62 mrad |
73 mrad @ 800 nm |
73mrad @ 800nm |
|
RF Power Level |
2.5 watts peak, <1 watt aver. |
< 700 mW Average/ 5 Watts Peak 10 % max duty
cycle with 10 nsec pulse. |
< 700 mW Average/ 5 Watts Peak 10% max duty cycle
with 10nsec pulse. |
|
Impedance |
50 Ohms nominal |
50 Ohms nominal |
50 Ohms nominal |
|
VSWR |
<1.5:1 @ 389 MHz |
<1.5:1 @ 389 MHz |
< 1.5:1 @ 389 MHz |
|
Package |

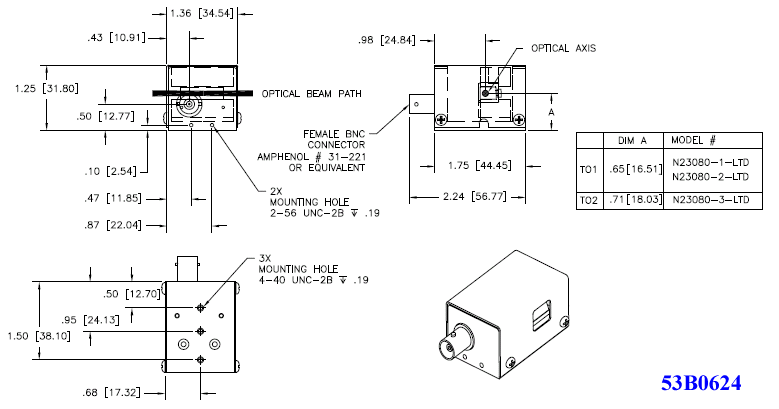

53B0624TO1 |

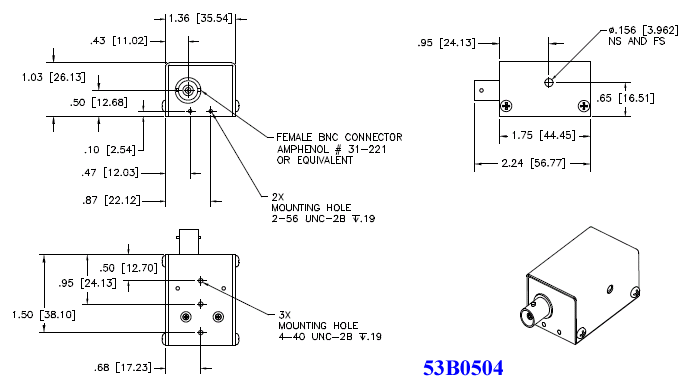

53B0504
|

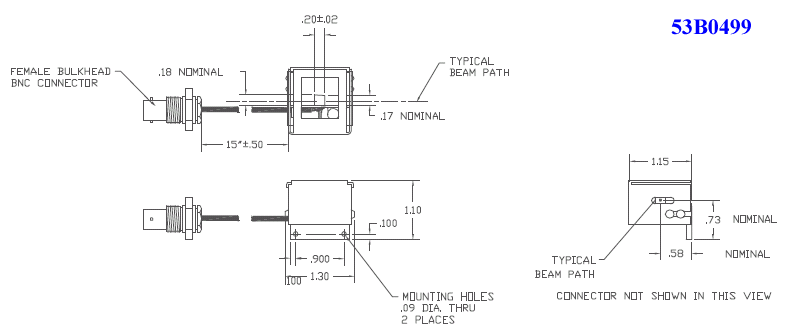

53B0499
|
|
Recommended Drivers: |
Non - Synchronous Driver: 11389-5AM
Synchronous Driver: 64389.5-SYN-9.5-X |
|
Model |
35085-0.5-350 |
35085-3-350 |
|
Interactive Material |
Fused Silica |
Fused Silica |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
300 to 400 nm |
300 to 400 nm |
|
Window Configuration |
AR Coated |
AR Coated |
|
Static Transmission |
>99 % |
>99 % |
|
Operating Frequency |
85 MHz |
85 MHz |
|
Diffraction Efficiency |
>85 % |
85 % @ 350 nm |
|
Light Polarization |
Linear, Perpendicular to acoustic propagation |
Linear, Perpendicular to Acoustic Propagation |
|
Acoustic Aperture |
0.5 mm |
3 mm |
|
Rise Time |
110 nsec/mm beam diameter |
110 ns / mm Beam Diameter |
|
Deflection Angle |
5 mrad @ 350 nm |
5 mrad @ 350 nm |
|
RF Power Level |
< 6 Watts |
3 Watts |
|
Impedance |
50 Ohms |
50 Ohms |
|
VSWR |
<1.2:1 @ 85 MHz |
<1.2:1 @ 85 MHz |
|

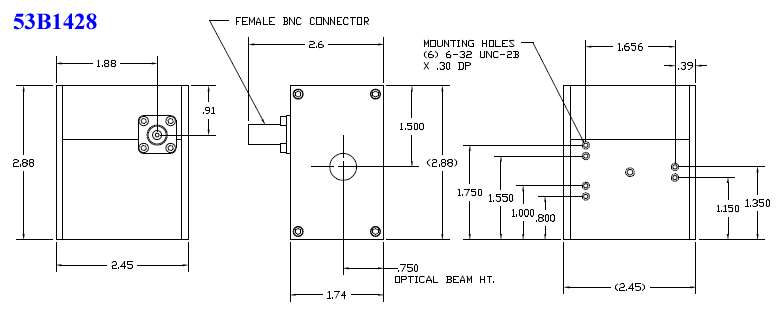

Package: |
53B1428
|
53B1428
|
|
Recommended Drivers: |
Analog Driver System: 31085-6AS
|
Analog Driver System: 31085-6AS
|
|
|
Analog Module Driver:
31085-6AM
|
Analog Module Driver:
31085-6AM
|
|
|
Digital Driver System: 31085-6DS
|
Digital Driver System: 31085-6DS
|
|
|
Digital Module Driver:
31085-6DM
|
Digital Module Driver:
31085-6DM
|
|
Model |
35085-0.5 |
35085-3 |
|
Interactive Material |
Fused Silica |
Fused Silica |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
400 to 540 nm |
400 to 540 nm |
|
Window Configuration |
AR Coated |
AR Coated |
|
Static Transmission |
>99 % |
>98 % @ 488 nm |
|
Operating Frequency |
85 MHz |
85 MHz |
|
Diffraction Efficiency |
>85 % With Linear Polarized Light, Perpendicular
to acoustic propagation |
>85 % @ 488 nm With Light Polarized Linear,
Perpendicular to Acoustic Propagation. |
|
Acoustic Aperture Size |
0.5 mm |
3 mm |
|
Rise Time |
110 nsec/mm beam diameter |
110 ns / mm Beam Diameter |
|
Deflection Angle |
5 mrad @ 514 nm |
6.9 mrad @ 488 nm |
|
RF Power Level |
< 6 Watts |
< 6 Watts @ 488 nm |
|
Impedance |
50 Ohms |
50 Ohms |
|
VSWR |
<1.2:1 @ 85 MHz |
<1.2:1 @ 85 MHz |
|
Package: |
53B1428
|
53B1428
|
|
Recommended Drivers: |
Analog System Driver: 31085-6AS
|
Analog Driver System: 31085-6AS
|
|
|
Analog Module Driver:
31085-6AM
|
Analog Module Driver:
31085-6AM
|
|
|
Digital System Driver: 31085-6DS
|
Digital Driver System: 31085-6DS
|
|
|
Digital Module Driver:
31085-6DM
|
Digital Module Driver:
31085-6DM
|
|
Model |
35210-BR / 71004 |
35210-BR |
|
Interactive Material |
Fused Silica |
Fused Silica |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
300 to 700 nm |
300 to 700 nm |
|
Window Configuration |
Brewster |
Brewster |
|
Static Transmission |
>99 % @ 488 nm |
98 % @ 488 nm |
|
Operating Frequency |
210 MHz |
210 MHz |
|
Diffraction Efficiency |
>70 % @ 488 nm |
>70 % @ 488 nm |
|
Light Polarization |
Linear, Perpendicular to acoustic propagation
|
Linear, Perpendicular to acoustic propagation
|
|
Acoustic Aperture Size (in air)
|
0.13 mm |
0.13 mm |
|
Rise Time |
<15 ns |
<15 ns |
|
Optical Waist Size to achieve Rise Time
|
0.1 mm |
0.1 mm |
|
Deflection Angle |
17 mrad @488 nm |
17 mrad @ 488 nm |
|
RF Power Level |
6 Watts |
6 Watts |
|
Impedance |
50 Ohms |
50 Ohms |
|
VSWR |
<1.5:1 @ 210 MHz |
<1.5:1 @ 210 MHz |
|

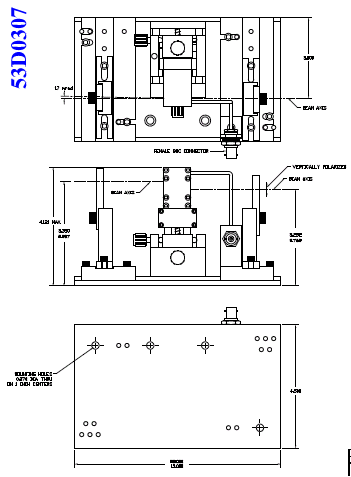

Package Assembly: Mount, Optics and Modulator:
|
53D00307
|
|
|

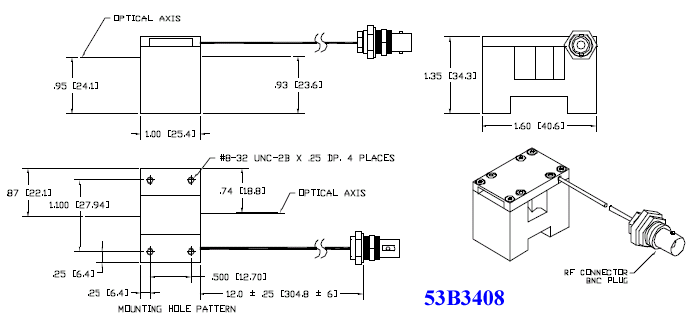

Package: |
53B3408
|
53B3408
|
|
Recommended Driver: |
Analog System Driver: 31210-6AS
Analog Module Driver: 31210-6AM
Digital System Driver: 31210-6DS
Digital Module Driver: 31210-6DM |
|
Model |
35110-2-244 |
35250-.2-.53-XQ |
|
Interactive Material |
KrF Grade Fused Silica |
Crystal Quartz |
|
Acoustic Mode |
Longitudinal |
Longitudinal |
|
Operating Wavelength |
244 nm |
532 nm |
|
Window Configuration |
AR Coated |
AR Coated |
|
Static Transmission |
>97 % |
>99 % |
|
Operating Frequency |
110 MHz |
250 MHz |
|
Diffraction Efficiency |
70 % With Linear Polarized Light Perpendicular to
Acoustic Propagation |
>70 % |
|
Light Polarization |
|
Linear, Perpendicular |
|
Acoustic Aperture Size |
2 mm |
0.2 mm |
|
Rise Time |
110 ns / mm beam diameter |
10 ns |
|
Optical Waist Size to achieve Rise Time |
|
0.09 mm |
|
Deflection Angle |
4.5 mrad |
23 mrad |
|
RF Power Level |
<2 Watts |
6 Watts |
|
Impedance |
50 Ohms |
50 Ohms |
|
VSWR |
<1.2:1 @ 110 MHz |
<1.5:1 - 170 to 330 MHz |
|

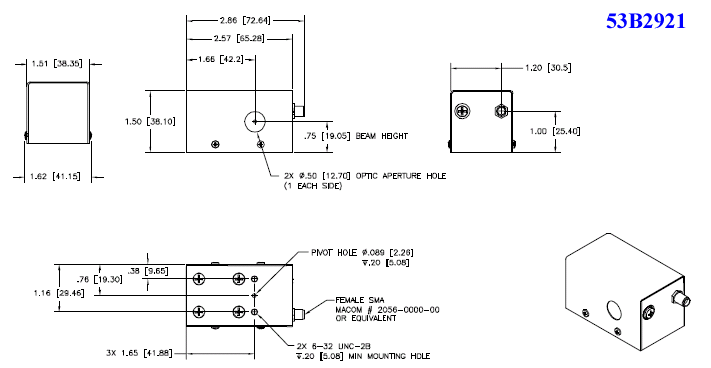

Package: |
53B2921
|
53B1354
|
|
Recommended Driver: |
21110-2AS
21110-2AM
21110-2DS
21110-2DM |
31250-6AS
31250-6AM
31250-6DS
31250-6DM |
|
