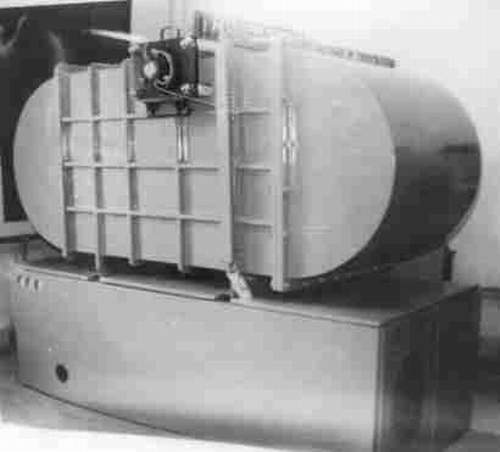

High-Power Helium-Free CW CO2 Laser
(This laser was made in 1989. More new machines
are available now.)
The first high-power helium-free CW CO2 laser was
produced in Wuhan, China in 1985. It was awarded the third-class
prize for Progress in Science and Technology by the State
Education Commission of China in 1992. The China patent number is
86100643.7.
The laser is suitable for surface hardening, cutting, welding,
and laser cladding.
Features:
- Plate-pin discharge configuration;
- All-sealed cooling system;
- Voltage/current constant technology;
- Argon used instead of expensive helium
Main
Specifications:
Model |
HL1250 |
HL2500 |
laser power (kW) |
1.25 (multimode) |
2.0 (multimode) |
|
0.75 (low-order mode) |
1.5 (low-order mode) |
Max. laser power (kW) |
1.5 |
2.5 |
Laser wavelength (um) |
10.6 |
10.6 |
Power stability (%) |
+-3 |
+-3 |
Beam diameter (mm) |
26 |
30 |
Beam divergence (mrad) |
5 (multimode) |
5 (multimode) |
|
2 (low-order mode) |
2 (low-order mode) |
Gas pressure (torr) |
60-65 |
55-60 |
Gas composition |
CO2+N2+Ar |
CO2+N2+Ar |
Electrical power (kW) |
30 |
50 |
Cooling water (t/hr) |
3 |
5 |
Weight (t) |
2 |
3 |
Dimension (mm) |
|
|
Laser head |
1910x1300x1700 |
1750x1350x2000 |
Power supply |
1420x650x1750 |
900x550x1800 |
