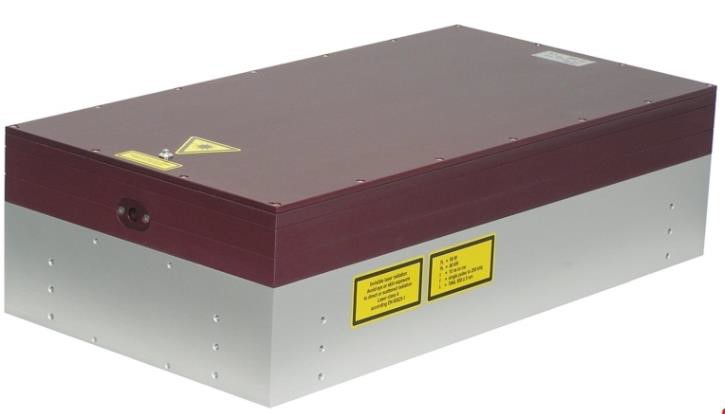

          High Repetition Rate Q-switched DPSS Lasers



Features:

l   high repetition rate solid-state diode pumped Q-switched lasers

l   fundamental 1064 nm, green 532 nm and UV 355 nm available

l   air-cooled, compact laser for micro and precision processing

l   no additional cooling unit required

l   excellent beam quality

l   short pulses at high repetition rates

l   high Peak Power

l   first pulse suppression by fast energy modulation

l   high reliability for 24/7 operation

l   ports for TTL, analog and RS 232 control

l   cost-effective operation



Applications:

l   rapid prototyping

l   micro-machining

l   thin film solar cell scribing

l   marking, structuring, trimming

l   greyscale ID-cards



Specification of Series CL100



Model

CL100-1064

CL100-532

Wavelength

1064 nm

532 nm

Power

3W @ 25 kHz

1,5W @ 25 kHz

Pulse Repetition Rate

1 - 100 kHz

1 - 100 kHz

Pulse Width

15 ns @ 25 kHz

15 ns @ 25 kHz

Pulse Energy

120 μJ @ 25 kHz

60 μJ @ 25 kHz

Peak Power

8 kW @ 25kHz

4 kW @ 25kHz

Beam Quality

M < 1,4

M < 1,5

Polarization

linear

linear

Dimension Laser Head (W/H/L)

39 x 59 x 280 mm

39 x 59 x 280 mm

Dimension Power Supply (W/H/L)

320 x 120 x 320 mm

320 x 120 x 320 mm

Power Consumption

110-240V, 50-60Hz, 300W

110-240V, 50-60Hz, 300W

Operating Temperature

15 - 35

15 - 35



Specification of Series CL200



Model

CL200-1064

CL200-532

CL200-355

Wavelength

1064 nm

532 nm

355 nm

Power

12W CW

10W @ 25 kHz

4W @ 15 kHz

1.5W @ 15 kHz

Pulse Repetition Rate

1 - 200 kHz

1 - 200 kHz

1 - 200 kHz

Pulse Width

30 ns @ 20 kHz

20 ns @ 25 kHz

20 ns @ 25 kHz

Pulse Energy

600μJ @ 10 kHz

300μJ @ 10 kHz

120μJ @ 10 kHz

Peak Power

2 kW @ 10 kHz

15kW @ 10 kHz

6 kW @ 10 kHz

Beam Quality

M < 1.2

M < 1.4

M < 1.4

Polarization

linear

linear

linear

Dimension Laser Head (W/H/L)

80x130x495mm

125x129x600mm

125x129x600mm

Dimension Power Supply (W/H/L)

19, 3U

19, 3U

19, 3U

Power Consumption

110-240V, 50-60Hz, 300W

110-240V, 50-60Hz, 300W

110-240V, 50-60Hz, 300W

Operating Temperature

15 - 35

15 - 35

15 - 35



Specification of Series CL210



Model

CL210-1064

CL210-532

CL210-355

Wavelength

1064 nm

532 nm

355 nm

Power

20W cw
18W @ 20 kHz

7W @ 15 kHz

3W @ 15 kHz

Pulse Repetition Rate

1 - 100 kHz

1 - 100 kHz

1 - 100 kHz

Pulse Width

30 ns @ 20 kHz

20 ns @ 25 kHz

20 ns @ 25 kHz

Pulse Energy

1000 μJ @10 kHz

500 μJ @10 kHz

250 μJ @10 kHz

Peak Power

40 kW @ 10 kHz

25 kW @10 kHz

12 kW @10 kHz

Beam Quality

M < 1.2

M < 1.4

M < 1.4

Polarization

linear

linear

linear

Dimension Laser Head (W/H/L)

125x129x600mm

125x129x600mm

125x129x600mm

Dimension Power Supply (W/H/L)

2 x 19, 3U

2 x 19, 3U

2 x 19, 3U

Power Consumption

110-240V, 50-60Hz, 600W

110-240V, 50-60Hz, 600W

110-240V, 50-60Hz, 600W

Operating Temperature

15 - 35

15 - 35

15 - 35



Specification of Series CL210-sp

Model

CL210-1064sp

CL210-532sp

CL210-355sp

Wavelength

1064 nm

532 nm

355 nm

Power

20W @ 30 kHz

15W @ 10 KHz

10W @ 30 kHz

10W @ 10 KHz

4W @ 30 kHz

3W @ 10 KHz

Pulse Repetition Rate

1 - 100 kHz

1 - 100 kHz

1 - 100 kHz

Pulse Width

8 ns @ 10 kHz

10 ns @ 30 kHz

5 ns @ 10 kHz

8 ns @ 30 kHz

5 ns @ 10 kHz

8 ns @ 30 kHz

Pulse Energy

1.5 mJ @10 kHz

400 μJ @10 kHz

1.0 mJ @10 kHz

300 μJ @10 kHz

400 μJ @10 kHz

100 μJ @10 kHz

Beam Quality

M < 1.2

M < 1.4

M < 1.4

Polarization

linear

linear

linear

Dimension Laser Head (W/H/L)

125x129x600mm

125x129x600mm

125x129x600mm

Dimension Power Supply (W/H/L)

2 x 19, 3RU

2 x 19, 3RU

2 x 19, 3RU

Power Consumption

110-240V, 50-60Hz, 800W

110-240V, 50-60Hz, 800W

110-240V, 50-60Hz, 800W

Operating Temperature

15 - 35

15 - 35

15 - 35



Specification of Series CL240

Model

CL240-1064

CL240-532

Wavelength

1064 nm

532 nm

Power

40W @ 20 kHz
65W @ 100 kHz
75W @ 200 kHz

20W @ 20 kHz
15W @ 100 kHz
10W @ 200 kHz

Pulse Repetition Rate

1 - 400 kHz

1 - 100 kHz

Pulse Width

15 ns @ 20 kHz
60 ns @ 100 kHz
80 ns @ 200 kHz

10 ns @ 20 kHz
50 ns @ 100 kHz
65 ns @ 200 kHz

Pulse Energy

2.0 mJ @ 20 kHz
650 μJ @ 100 kHz
375 μJ @ 200 kHz

1.0 mJ @ 20 kHz
150 μJ @ 100 kHz
50 μJ @ 200 kHz

Beam Quality

M < 1.2

M < 1.4

Polarization

linear

linear

Dimension Laser Head (W/H/L)

126x138x500mm

126x138x500mm

Dimension Power Supply (W/H/L)

19, 3RU

19, 3RU

Power Consumption

110-240V, 50-60Hz, 2000W

110-240V, 50-60Hz, 2000W

Operating Temperature

15 - 35

15 - 35



Specification of Series CL240-sp

Model

CL240-1064sp

CL240-532sp

Wavelength

1064 nm

532 nm

Power

30 W @ 20 kHz
40 W @ 50 kHz
50 W @ 100 kHz
60 W @ 200 kHz

20 W @ 20 kHz
15 W @ 50 kHz
15 W @ 100 kHz
12 W @ 200 kHz

Pulse Repetition Rate

1 - 400 kHz

1 - 400 kHz

Pulse Width

10 ns @ 20 kHz
12 ns @ 50 kHz
20 ns @ 100 kHz
25 ns @ 200 kHz

8 ns @ 20 kHz
10 ns @ 50 kHz
15 ns @ 100 kHz
20 ns @ 200 kHz

Pulse Energy

1.5 mJ @ 20 kHz
800 μJ @ 50 kHz
500 μJ @ 100 kHz
300 μJ @ 200 kHz

1.0 mJ @ 20 kHz
150 μJ @ 50 kHz
600 μJ @ 100 kHz
300 μJ @ 200 kHz

Beam Quality

M < 1.2

M < 1.4

Polarization

linear

linear

Dimension Laser Head (W/H/L)

260x138x500mm

260x138x500mm

Dimension Power Supply (W/H/L)

19, 3RU

19, 3RU

Power Consumption

110-240V, 50-60Hz, 2000W

110-240V, 50-60Hz, 2000W

Operating Temperature

15 - 35

15 - 35
